- 9 -
Fig.3D Fig.3E

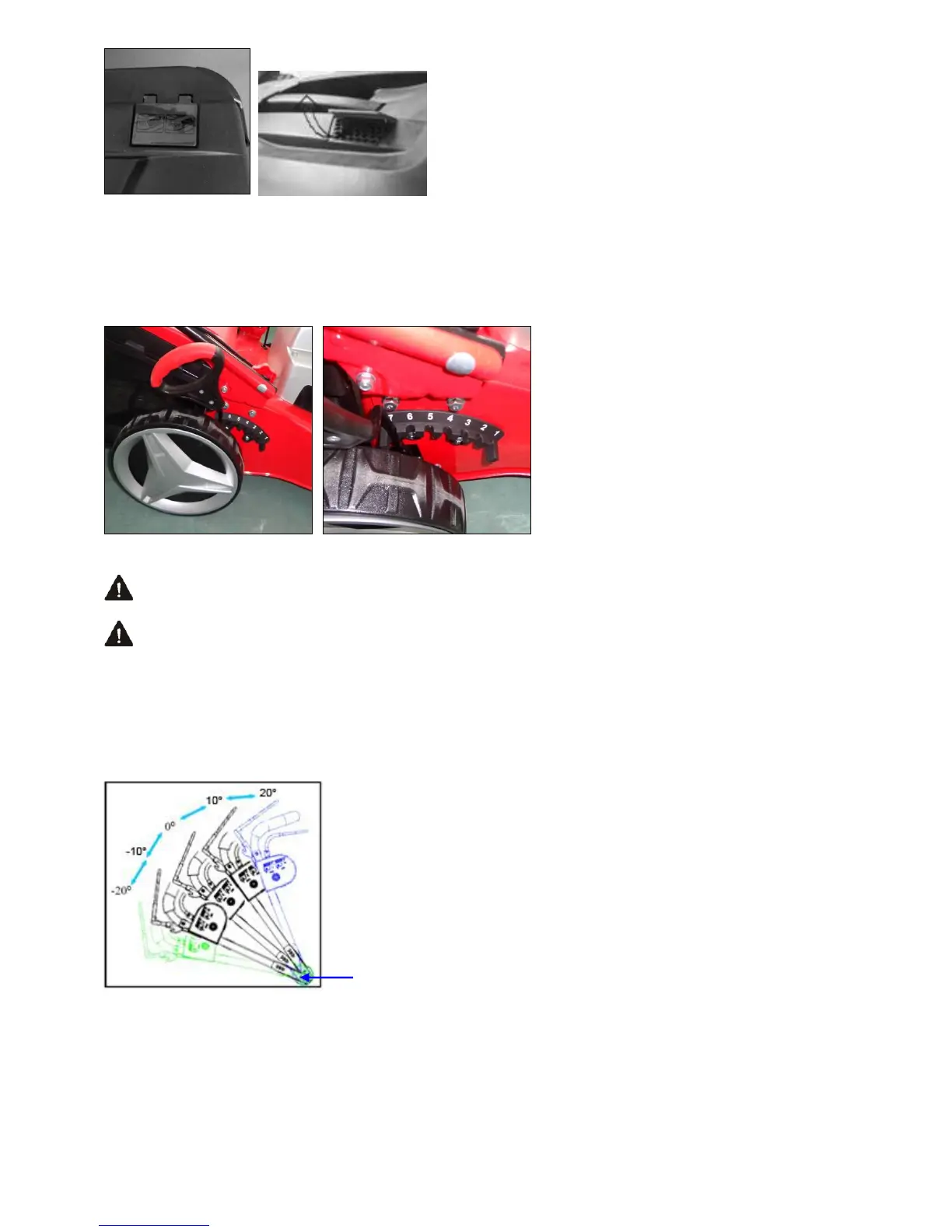

6. ADJUSTMENT OF CUTTING HEIGHT
Apply outward pressure to disengage the lever from the rack. Move the lever forward or back to adjust the height.
The height (the blade to the ground) can be adjusted from 25mm (position 1) to 75mm (position 7), 7 height
positions. All wheels will be in the same height of cut.
Fig.4A Fig.4B
WARNING: Make this adjustment only when the blade is stopped.
WARNING: Disconnect the electric cord from the power supply.
7. ADJUSTMENT FOR AN APPROPRIATE ANGLE
A).Pull the locking lever opening;
B).Rotating the upper handle centered of the angle adjusting gear for adjusted a appropriate angle into the scope
-20º to 20º (5 position: -20º/-10º/0º/10º/20º) as the Fig.5 shown;
C).Push the locking lever closed to connect the lower handle and the upper handle.
Fig.5
