5.2 ASSEMBLING THE GRASS CATCHER

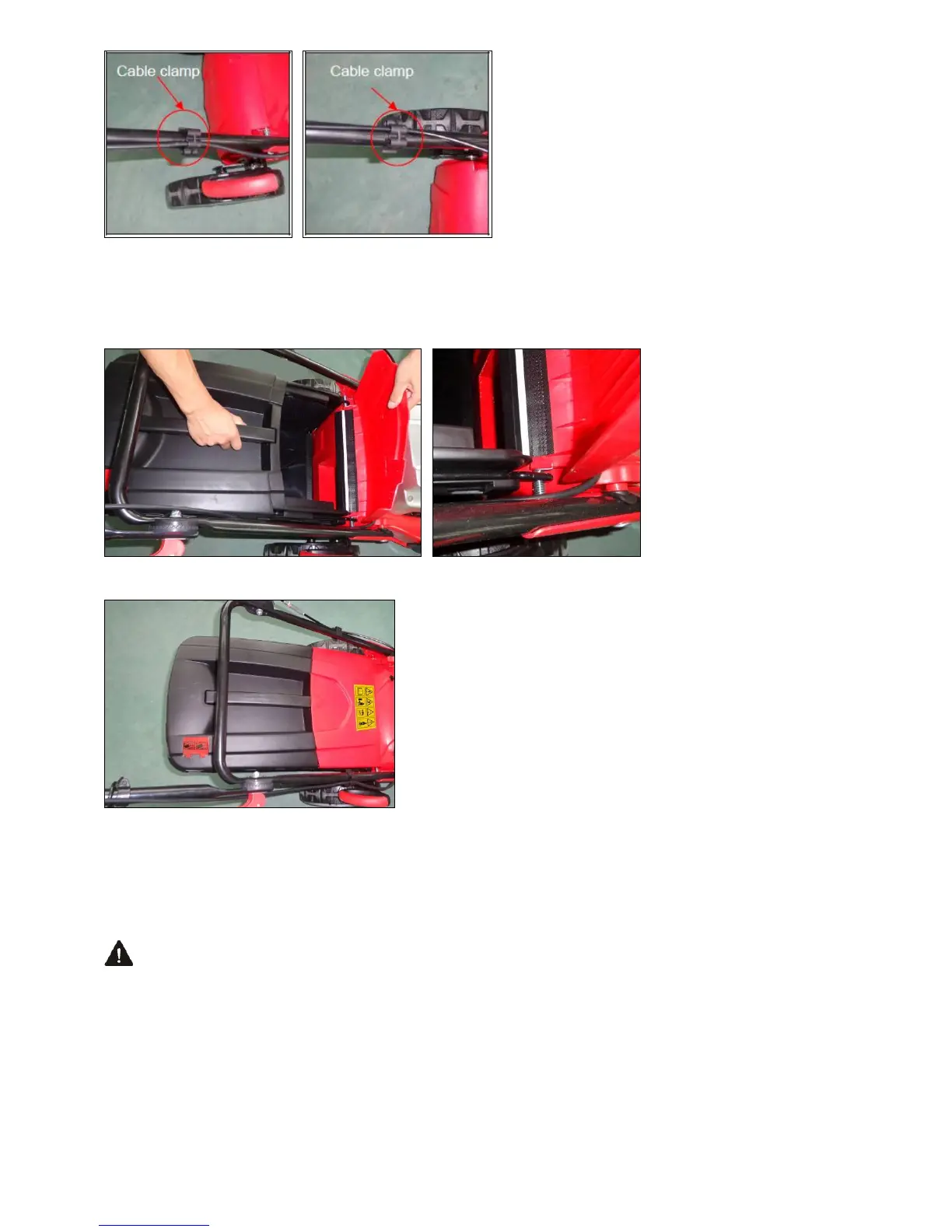

1. To fit: Raise the rear cover and hitch the grass catcher on rear of mower. (Fig. 3A/Fig. 3B/ Fig. 3C)
2. To remove: grasp and lift the rear cover, remove grass catcher.
Fig.3A Fig.3B
Fig.3C
There is a level indicator on the top of the grass catcher that shows whether the catcher is empty or full:
- The level indicator inflates if the catcher is not full during the moving. (Fig. 3E)
- If the catcher is full, the indicator collapses; once this happens, stop mowing immediately and empty the
catcher, make sure it is clean and ensure its meshwork is ventilated. (Fig. 3D)
IMPORTANT:
If the position of indicator opening is very dirty, the indicator will not inflate. In this case, clean the position of
indicator opening immediately.
