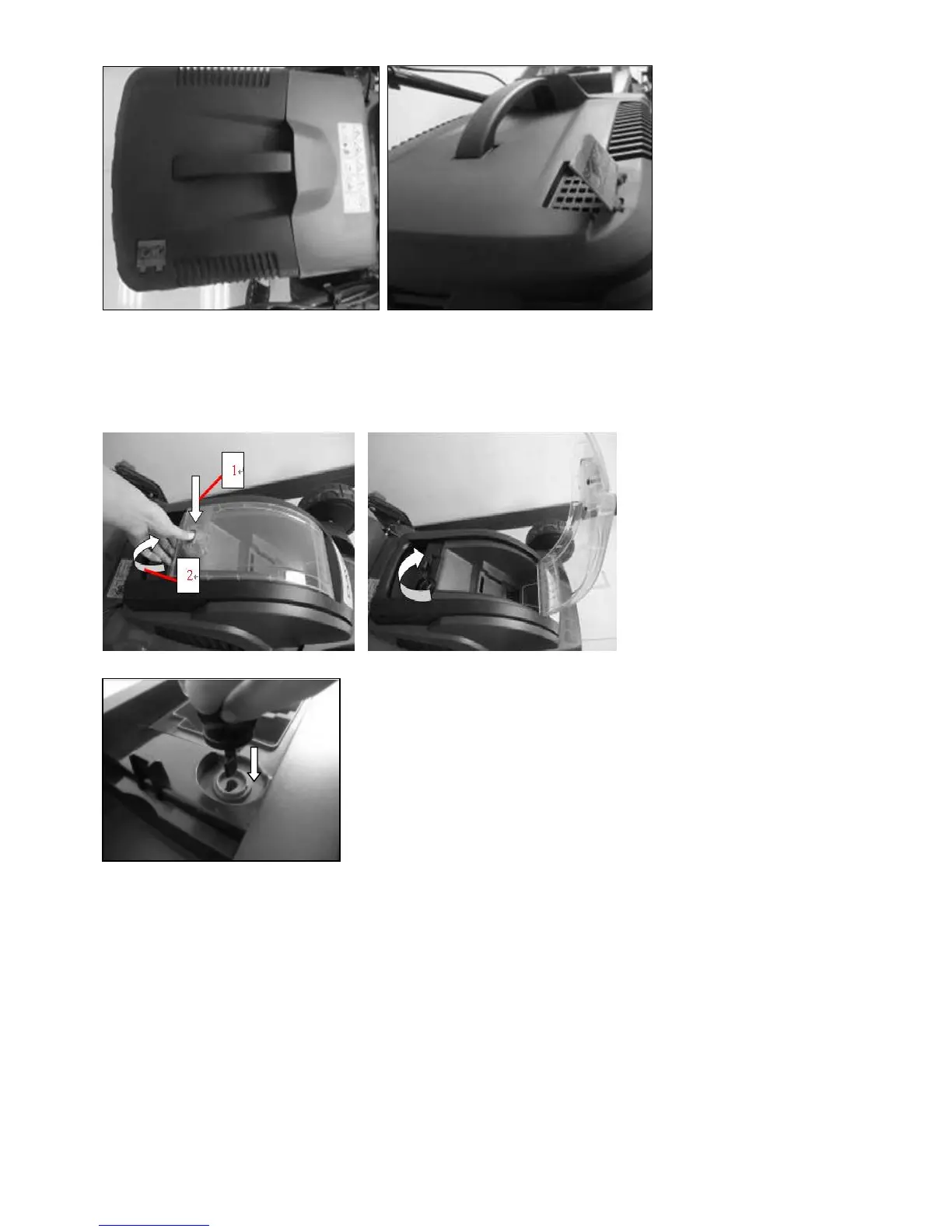

Fig.3G Fig.3H
5.3 INSTALLING THE ISOLATOR KEY
1. Press the button (1) and lift the battery door.(2) (Fig.4A)
2. Insert the isolator key into the slot.（Fig. 4B）
Fig.4A
Fig.4B
5.4 INSTALLING THE BATTERY
1.Open the battery door.
2. Make sure the isolator key is switch off. Switch mark ”1” is ON”, “0” is “OFF”. (Fig. 5A)
3. Insert the battery pack into battery holder.(Fig. 5B/Fig.5C)
4. Make sure the latch on bottom of battery pack snaps in place and that battery pack is fully seated.
(Fig. 5B/Fig.5C)
5. Close the battery door. (Fig. 5B/Fig.5C /Fig. 5D)
