15
Installation

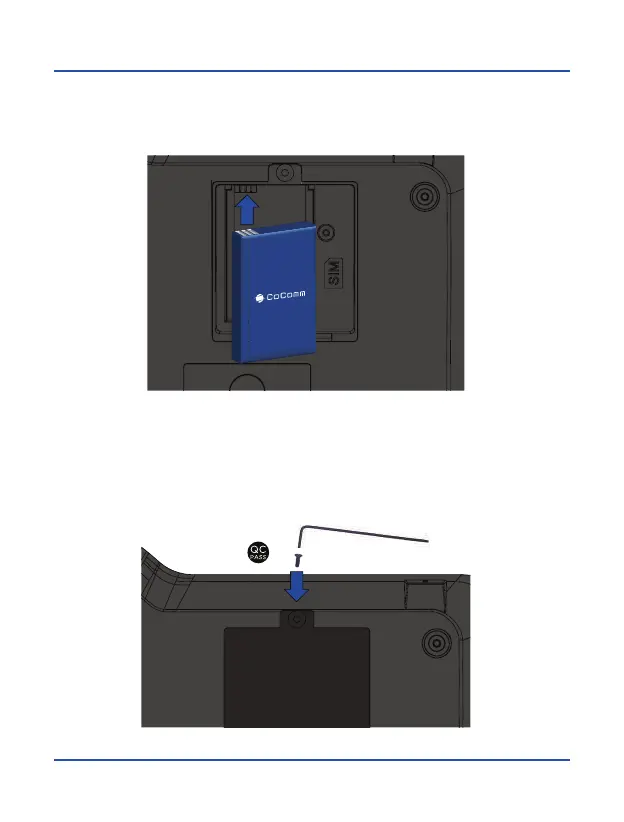

2. Insert the battery into the compartment, being sure that terminal electrode
connectors match battery top slots as shown in the figure. Replace the lid of the
battery compartment, making sure it is securely locked in place.
3. Close the lid of the battery compartment using the screw and supplied Allen key,
and use a QC PASS adhesive sticker to cover the screw hole.
