Codan 9350 User Manual

Overview
6 Automatic Tuning Whip Antenna 9350 Installation Handbook

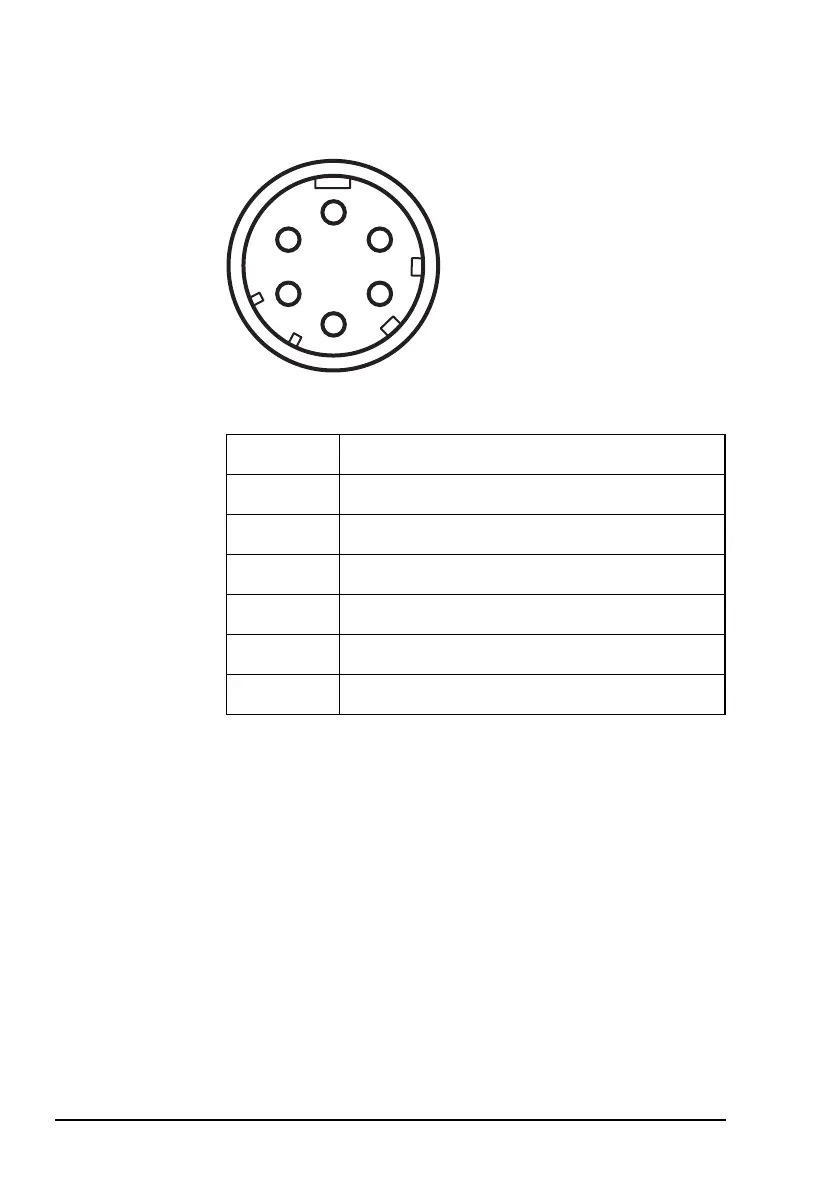

Figure 3: Front view of the antenna control connector
Table 1: Pinouts for the antenna control connector
Pin no. Description
A +12 V DC
BEarth
C Tune
D Scan
E Tune status indicator
FNot used
A
B
C
D
E
F

Codan 9350 Specifications

General

Input Impedance	50 ohms
Polarization	Vertical
Frequency Range	2 MHz to 30 MHz
Tuning Speed	Typically <1.5 seconds
Type	Automatic Tuning Mobile Antenna
VSWR	Typically <1.5:1
