Overview
Automatic Tuning Whip Antenna 9350 Installation Handbook 5
Care and safety instructions
You should unscrew the fibreglass or stainless steel whip from
the antenna base when the antenna is not in use.
When travelling in scrub or undergrowth, avoid overhanging
branches. Codan recommends that you carry the emergency
stainless steel whip with you in case the fibreglass whip is
damaged.
Connectors
There are two connectors at the base of the antenna as shown
in Figure 2.

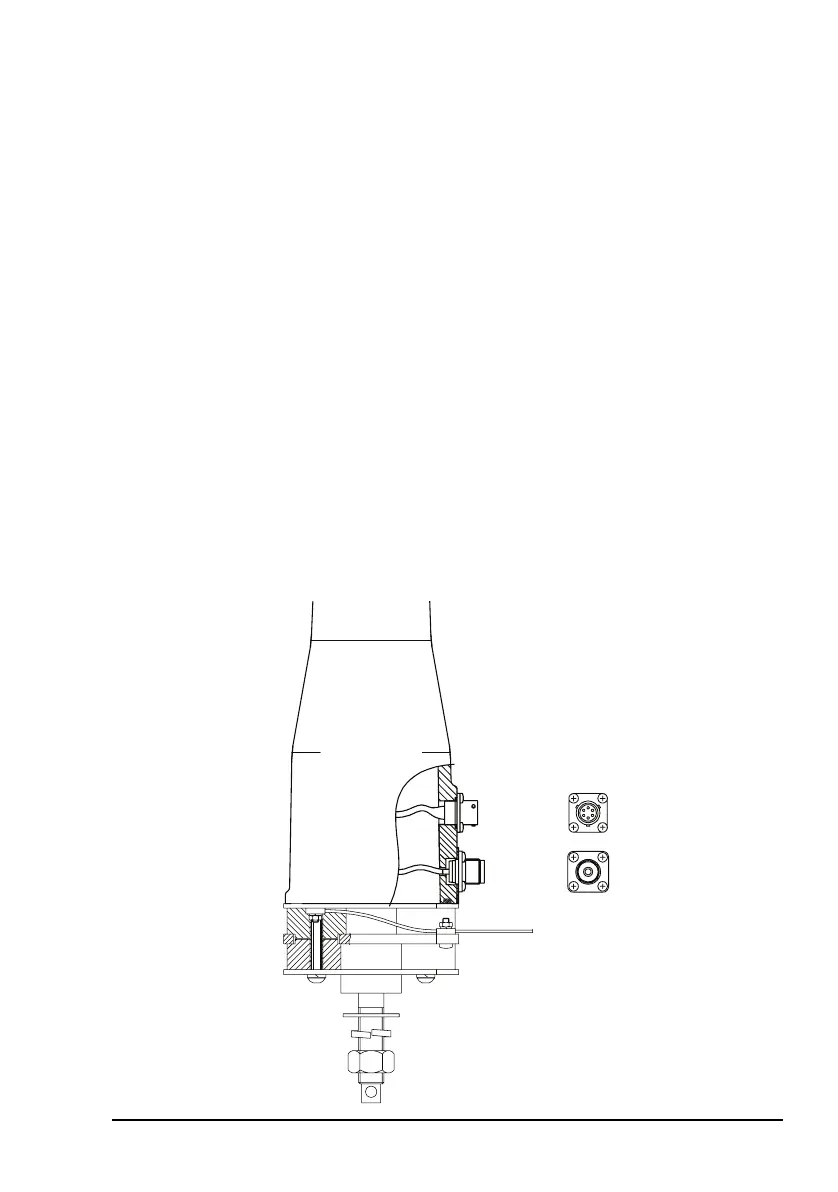

Figure 2: Connectors on the antenna
Antenna
control
RF

Codan 9350 Specifications

General

Input Impedance	50 ohms
Polarization	Vertical
Frequency Range	2 MHz to 30 MHz
Tuning Speed	Typically <1.5 seconds
Type	Automatic Tuning Mobile Antenna
VSWR	Typically <1.5:1
