Page 9 of 12
Wiring Instructions:
Lighting Section (“L4” Models Only):
Warning Light Control: Progressive switching, 3 levels
30A maximum combined total for Levels 1,2 & 3
Level 1 30A maximum
Green LED Indication
Level 2 30A maximum
Yellow LED Indication
Level 3 30A maximum
Red LED indication.
Auxiliary Controls A, B, C, D switches:
A,B, C & D switches are latching, Push-on/o (standard). They may be ordered as momentary
Independent circuits.
A,B & D switches 30A maximum combined total
A,B, C, or D switches 20A maximum load for any single output
Audible alarm (optional)

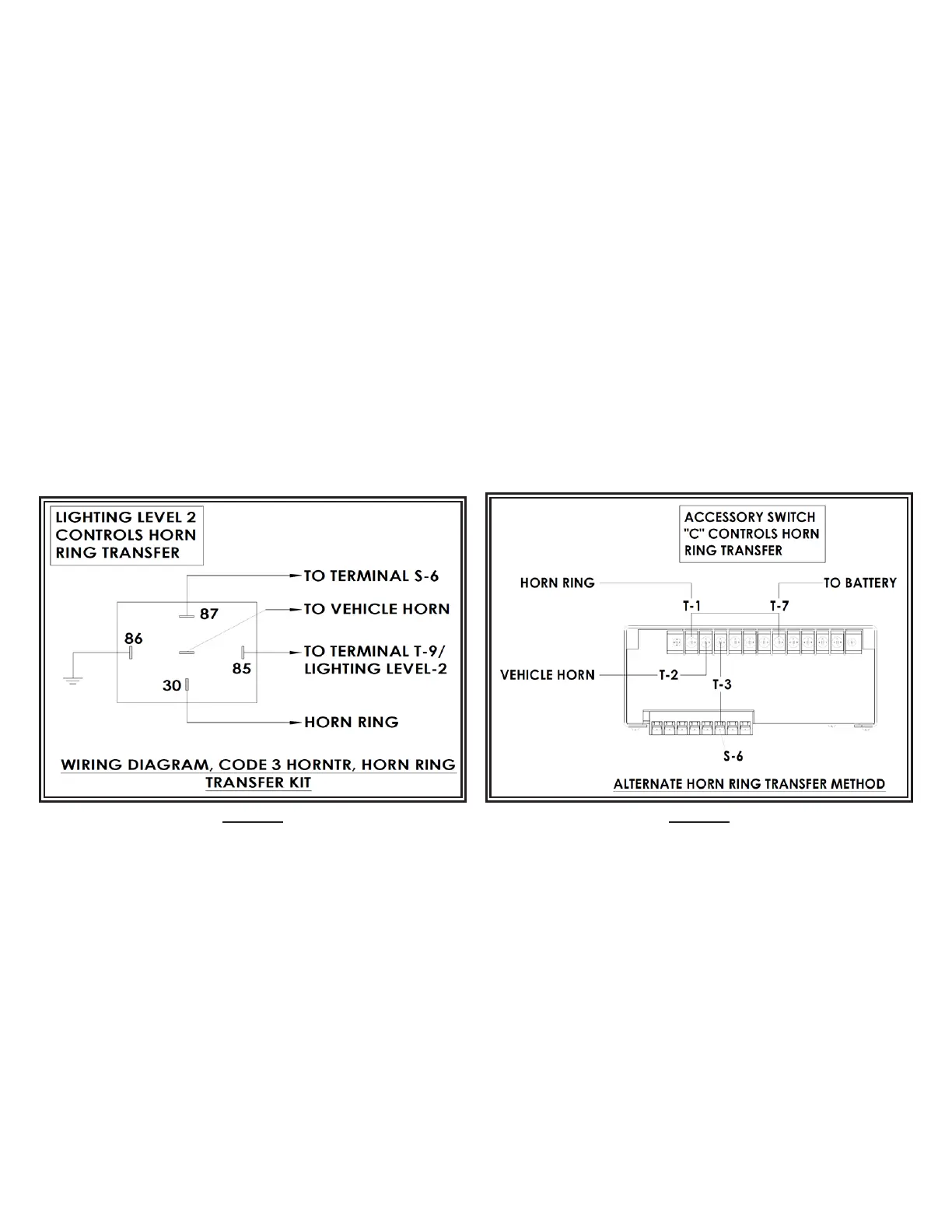

Figure 4 Figure 5
