Code 3 SuperVisor User Manual

5

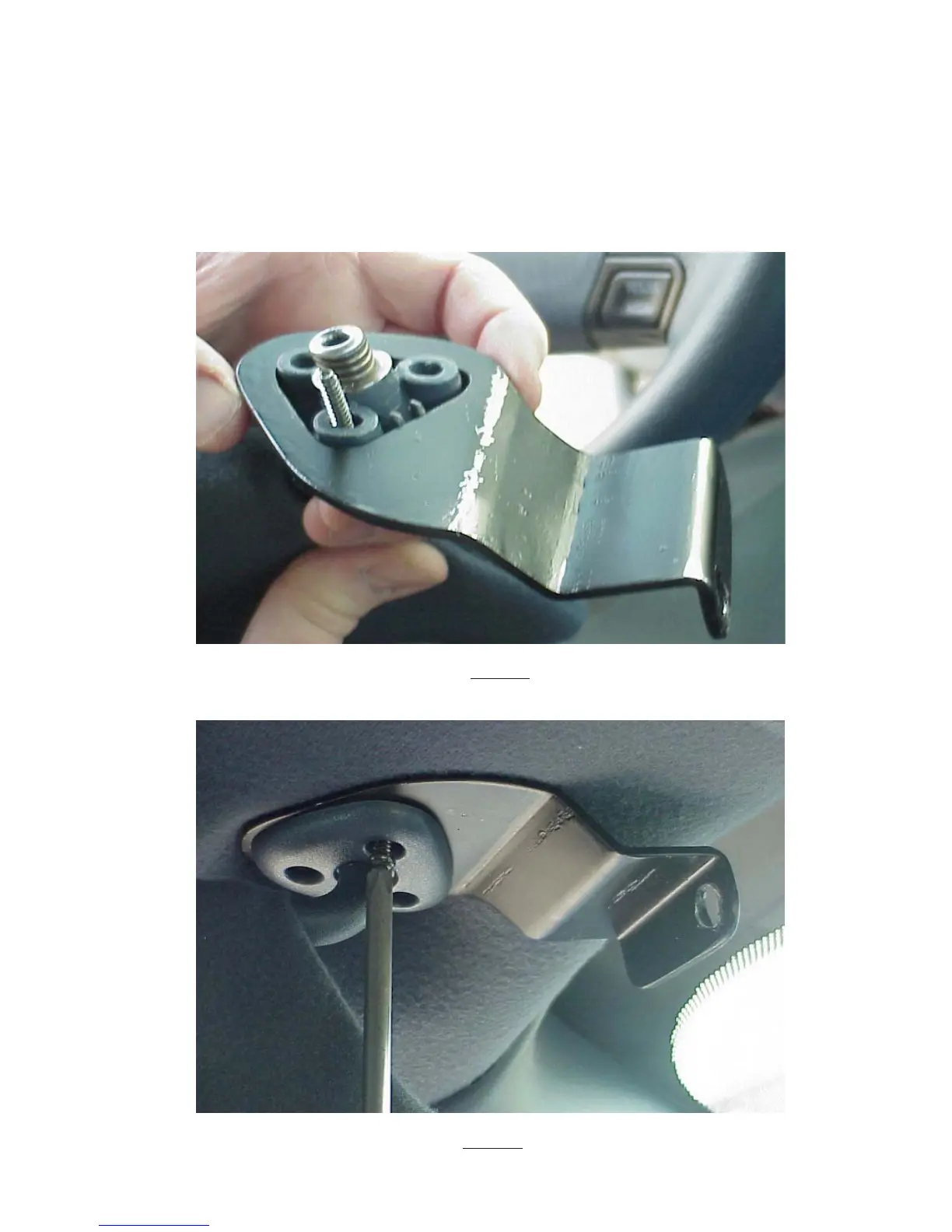

FIGURE 4
FIGURE 5
Attaching the pivot arm brackets
Attach the outer brackets that are supplied noting the difference between passenger and driver side brackets. Position the driver's side
bracket on the driver's side sun visor's pivot arm as shown in Figure 4. Attach the driver's side bracket to the headliner with the inner
torx screw as shown in figure 5. Next, move the sun visor over to gain access to install the other two torx screws. Do not tighten the
screws at this time. Repeat the same proceedure to attach the passenger's side outer bracket.

Code 3 SuperVisor Specifications

General

Brand	Code 3
Model	SuperVisor
Category	Automobile Accessories
Language	English
