18 ca1051 rev B. 2011 Audiovox Electronics Corporation. All rights reserved.

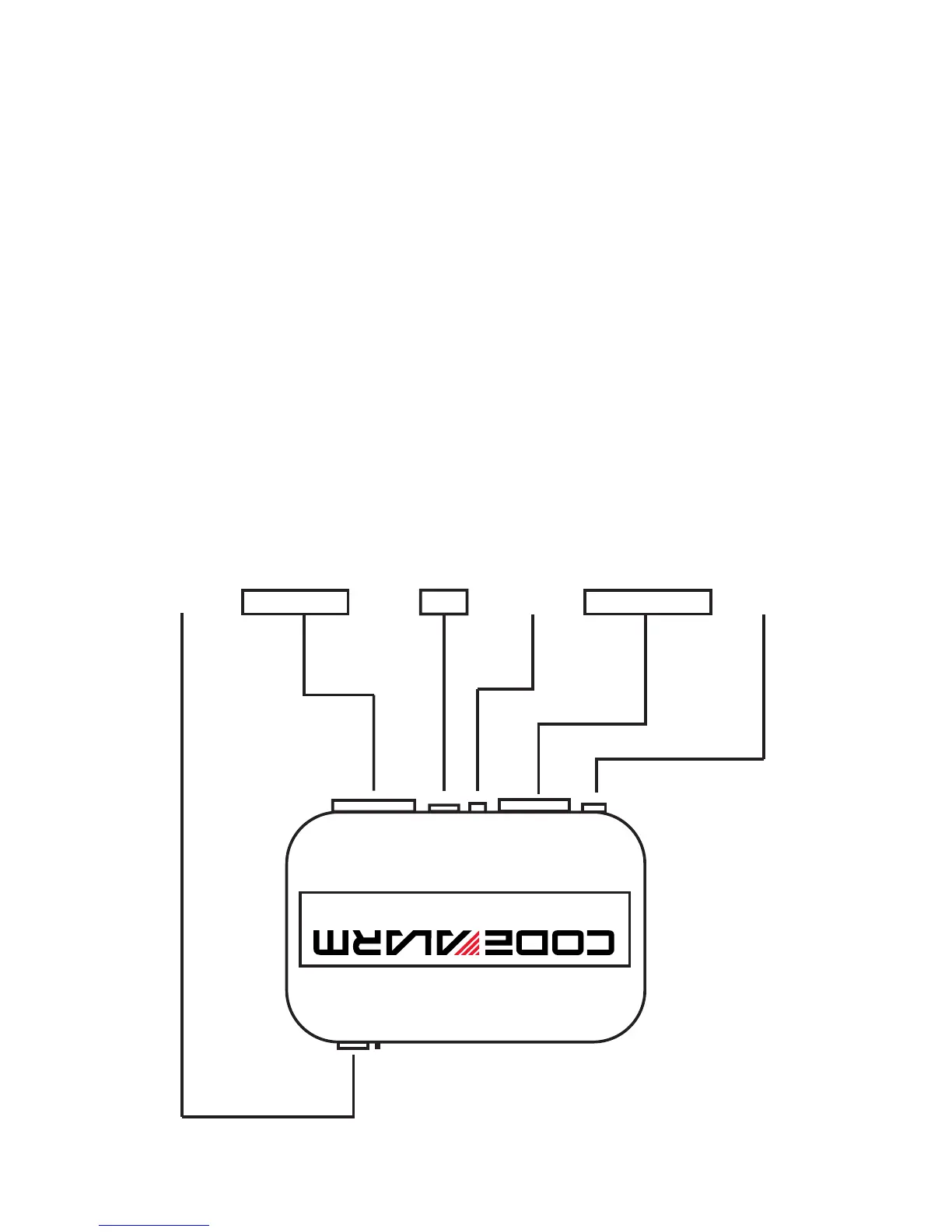

PURPLE DOOR TRIGGER INPUT ( + )
BLUE TRUNK PIN INPUT ( - )
GREEN DOOR TRIGGER INPUT ( - )
YELLOW IGNITION INPUT ( + )
ORANGE ARMED OUTPUT ( - )
RED/WHITE TRUNK RELEASE OUTPUT ( - )
WHITE/RED PARKING LIGHT INPUT
WHITE PARKING LIGHT OUTPUT
BLACK GROUND
BROWN SIREN OUTPUT
RED BATTERY 12V ( + )
BLUE UNLOCK OUTPUT ( - )
GREEN LOCK OUTPUT ( - )
CA 1051
PROGRAMMING / VALET PORT
LED PORT
SIREN / HORN OUTPUT POLARITY JUMPER
( + )
( - )
