4 BLACK/YELLOW PULSE DURING CRANK ( - )
Locate the vehicle’s second starter (crank) wire at the ignition switch. (if equipped)
Verification: This wire registers voltage only in the start (crank) position of
the ignition switch.

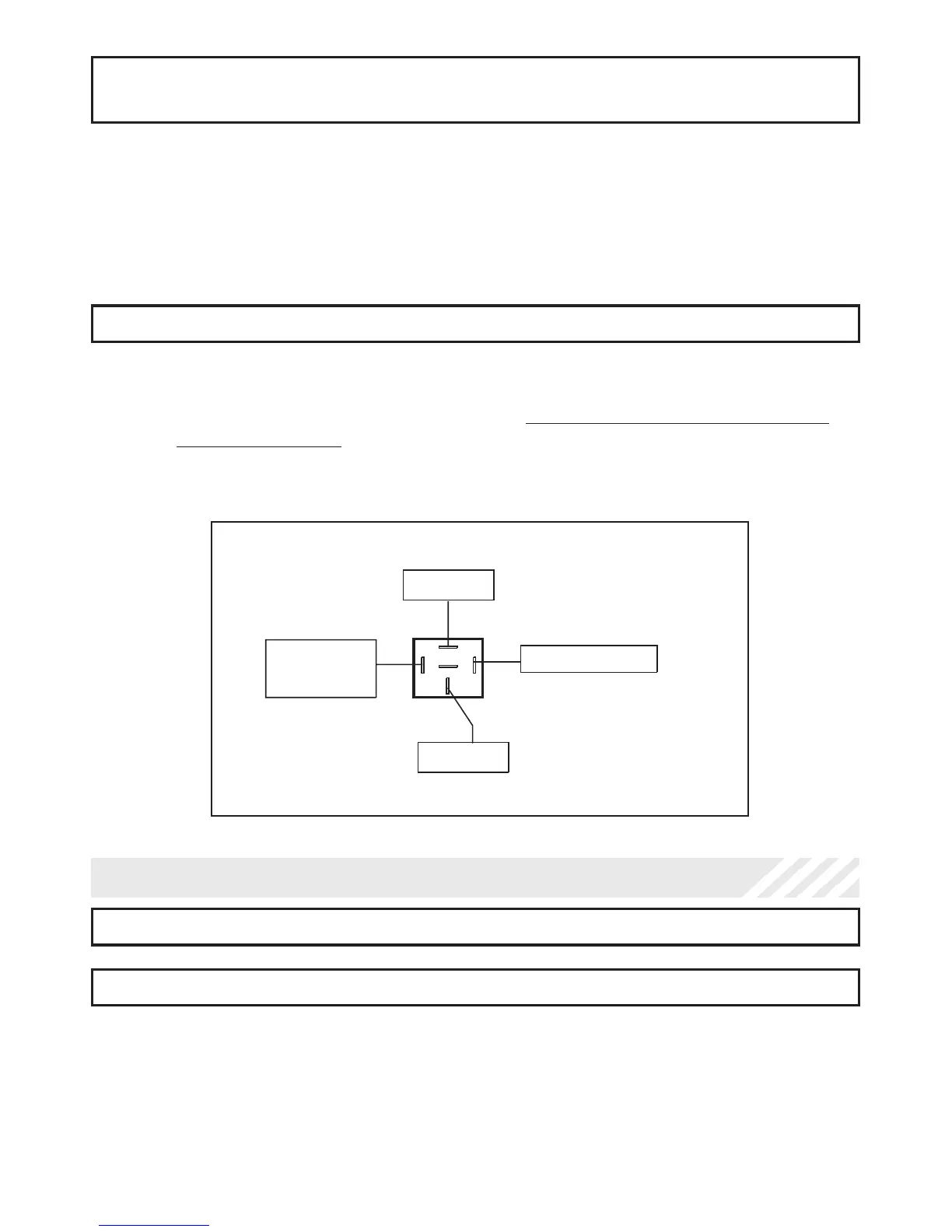

Connect the BLACK/YELLOW wire as shown in the diagram below. Use an SPDT
relay (not supplied).
F us ed +12 Volt
B a ttery S ourc e
30
87
87a
86
85
BLACK/YELLOW Pulse
During Crank Wire
To Vehicle's2nd
S tarter Wire
Jump To PUR PLE
Starter Output
Wire From The
C ontrol Module
2 Pin Lock Output Harness
1 BLUE UNLOCK ( - )
2 GREEN LOCK ( - )
The door lock / unlock outputs are designed to control several different types of
systems which may require additional parts. Please review the wire and location
chart to see which type of door lock system is in your vehicle. The most common
types are shown in the following diagrams.
3 GREEN/WHITE FACTORY ARM /
PULSE AFTER SHUTDOWN ( - )
This wire will supply a ( - ) 500mA pulse both upon arming the system and after
the remote start shuts down. This is typically used to re-lock the vehicle’s doors if
they unlock upon remote start shutdown. It can also be used to pulse a door pin-
switch wire to prevent the vehicle’s accessories from remaining on after remote
start shutdown.
To Next Page
