232009 Audiovox Electronics Corporation. All rights reserved.
LT GREEN/BLACK FACTORY DISARM / PULSE BEFORE START ( - )
LT BLUE PULSE AFTER START ( - )
GREEN/WHITE FACTORY ARM / PULSE AFTER SHUTDOWN ( - )
BLACK/YELLOW PULSE DURING CRANK ( - )
GREEN LOCK ( - )
BLUE UNLOCK ( - )
PURPLE STARTER OUTPUT - MOTOR SIDE ( + )
RED BATTERY 12V ( + )
ORANGE ACCESSORY 1 ( + )
PINK/WHITE IGNITION 2 ( + )
RED BATTERY 12V ( + )
PINK IGNITION 1 ( + )
BLACK GROUND
WHITE/RED PARKING LIGHT INPUT
WHITE PARKING LIGHT OUTPUT
BLACK/WHITE ILLUMINATED ENTRY OUTPUT ( - )
BROWN/BLACK HORN OUTPUT ( - )
RED/WHITE TRUNK RELEASE OUTPUT ( - )
BLUE/BLACK IGNITION 3 / ACTIVE OUTPUT ( - )
PURPLE/WHITE TACH INPUT
GRAY HOOD INPUT ( - )
BROWN/RED BRAKE INPUT ( + )

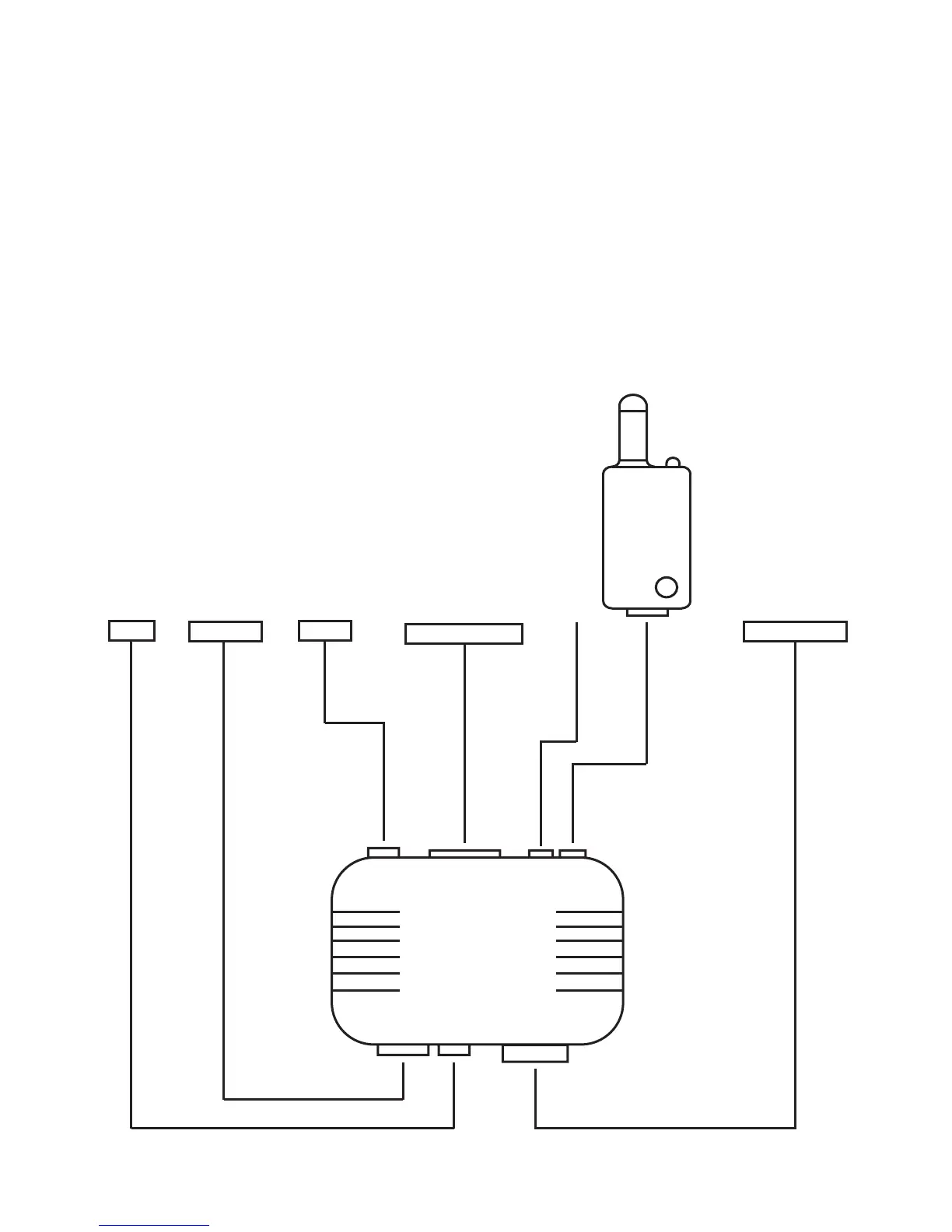

ANTENNA
LED
VALET
DBI PORT
CA 5050
