Public Address System

Administrator Guide

Code Blue ● 259 Hedcor Street ● Holland, MI ● 4923 USA ● 800.205.7186 ● www.codeblue.com Rev 12/2018 page 12 of 31 GU-153-G

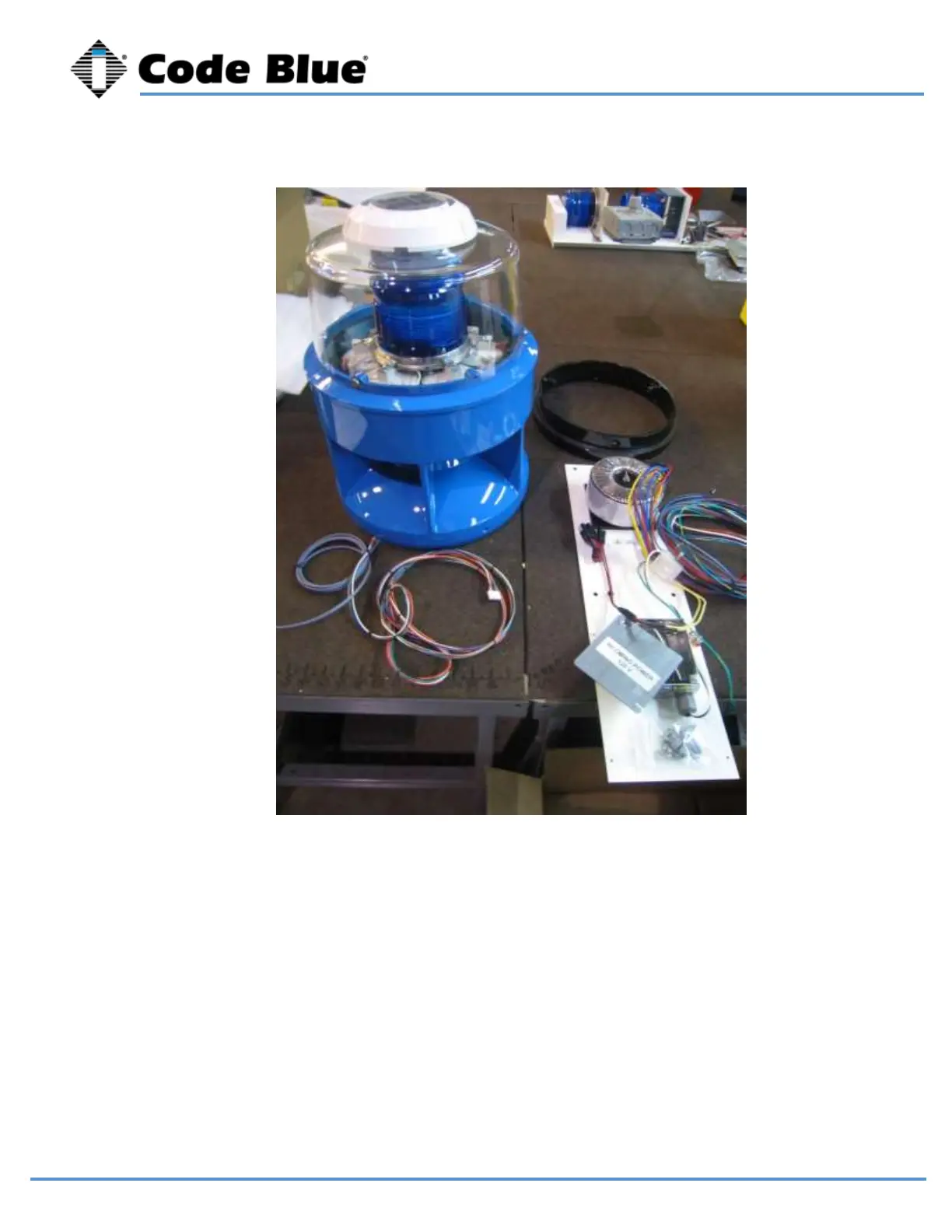

Figure 1

4.1.5 Install 360 PAS Speaker Unit

4.1.5.1 Connect the red/black and yellow/yellow wiring harnesses to the red/black and

yellow/yellow wiring pigtails coming from the beacon/strobe.

4.1.5.2 Connect the 6 pin wiring harness, 7 pin control cable and RJ-11 audio cable to

the ports on the amplifier.

4.1.5.3 Set the PAS speaker unit on the adapter ring, lining up the screw holes at the

bottom of the unit. Secure the speaker unit with the provided security screws.
