IA4100
Administrator Guide

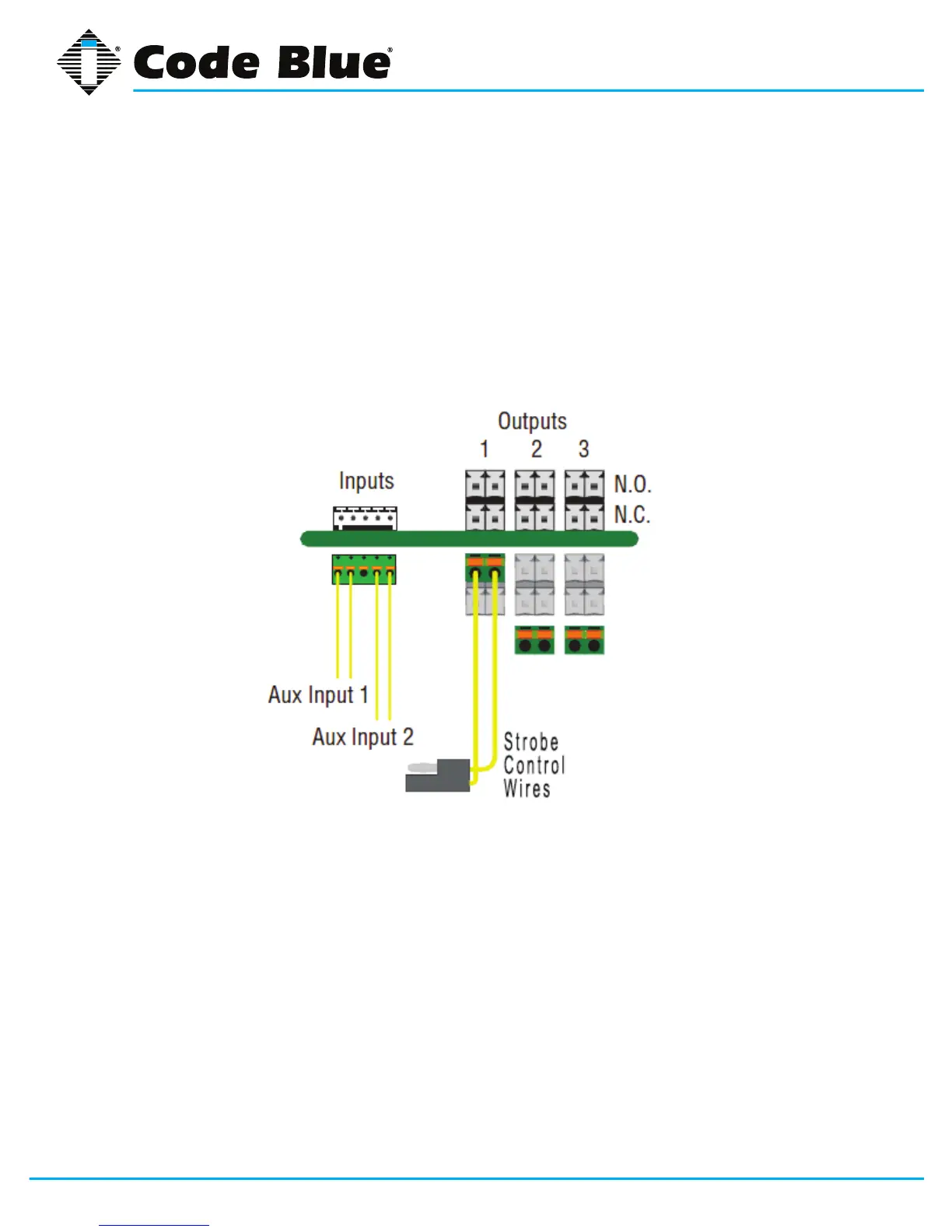

9 Connecting Auxiliary Devices
The IA4100 speakerphone analog auxiliary connections are three normally open or three normally
closed outputs and two normally open inputs. Typically, any Code Blue unit with a LED beacon/
strobe will have the trigger connected to Auxiliary Output 1. The Auxiliary Outputs can be pro-
grammed to be active during a call or by entering a specic time period. The Auxiliary Inputs can be
programmed to perform any script entered into the phone. Auxiliary inputs require power utilizing
any voltage between 9 and 32 volts AC or DC.
