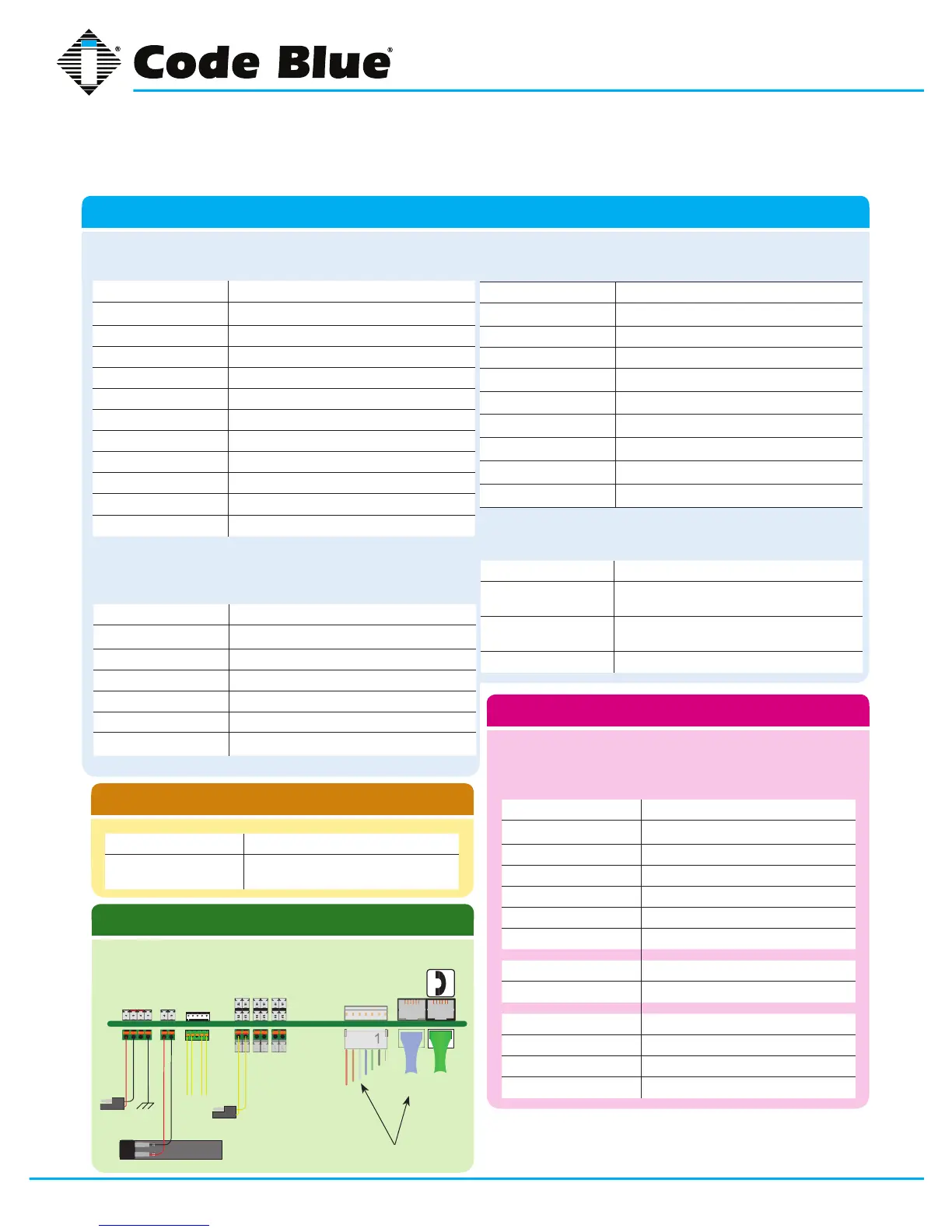

GU-139-Tpage 13 of 33
IA4100
Administrator Guide
11 Basic Programming
AUXILIARY OUTPUTS (default settings)
Auxiliary Output #1 closed until the end of the call
Auxiliary Output #3
closed for one second momentary
contact closure
COMMANDS DURING A CALL
20 increase microphone gain
21 decrease microphone gain
22 speaker volume up
23 speaker volume down
24 microphone mute
25 speaker mute
41 toggle half/full duplex
01 play message #1
02 play message #2
11 turn on auxiliary output 1
13 turn on auxiliary output 3
14 turn off auxiliary output 1
16 turn off auxiliary output 3
The following commands can be used by the called party
after the IA4100 places a call. These commands cannot
be used in Programming Mode.
IA4100 DIAGRAM
Battery 12v @ 2.0AhrBattery 12V @ 2.0Ahr
Aux Outputs
1
2 3
PAS Control
PAS Audio
Audio
Output
Phone
Line
Acc
Power
Grd
Battery
Aux
Inputs
+
–
–
+ –
1
3
2
4
N.O.
N.C.
1
2
to strobe unit
Control cable and PAS audio cable,
supplied with PAS amp
PROGRAMMING
12583# programming mode (required)
99Ý99#
defaults phone
(required)
57# trains the phone on the local loop (required)
5000# give up waiting for dial tone (required)
4108# revert to dial tone hangup (required)
4308# repeating (reorder) tone hangup (required)
Ý#
hang up and exit programming
3. PROGRAMMING FOR HOT LINE (RING-DOWN)
Call the extension or phone number of CB Unit, after the RFA tone:
If messages are required see section 4.
12583# programming mode
21# <your message> #
plays to end user at CB unit when HELP
activated
22# <your message> #
plays to end user at CB unit AND called party
when call is answered
Ý#
hang up and exit programming
4. RECORDING MESSAGES
Call the extension or phone number of CB Unit, after the RFA tone:
12583# programming mode (required)
99Ý99#
defaults the phone
(required)
57# trains the phone on the local loop (required)
4108# revert to dial tone hangup (required)
4308# repeating (reorder) tone hangup (required)
1204# Output 2 (for AED unit ONLY)
351# Input 1 (for AED unit ONLY)
01 <phone number> # 1st phone number, button #1 dials
(required)
02 <phone number> # 2nd phone number, button #1 dials (optional)
04 <phone number> # 1st phone number, button #2 dials (optional)
05 <phone number> # 2nd phone number, button #2 dials (optional)
Ý#
hang up and exit programming
1. NORMAL PROGRAMMING
Call the extension or phone number of CB unit, after the RFA tone:
12583# programming mode (required)
99Ý99#
defaults phone
(required)
57# trains the phone on the local loop (required)
4108# revert to dial tone hangup (required)
4308# repeating (reorder) tone hangup (required)
5145# unique GSM programming command (required)
5245# unique GSM programming command (required)
01 <phone number> # 1st phone number, button #1 dials (required)
04 <phone number> # 1st phone number, button #2 dials (optional)
Ý#
hang up and exit programming
2. GSM CELLULAR PROGRAMMING
Call the extension or phone number of CB Unit, after the RFA tone:
Failure to program in any number will result in a failure to operate.
