CONNECTIONS
MADE IN ITALY
COEF HIGH SPEEDSERIAL INTERFACE
CHSSI POWER SUPPLY
25 VDC 20% 0.5A
Ponte Buggianese (Pistoia)
POWER
IN
From
DC Adapter
Figure 4
DMX OUT1
DMX OUT3
DMX OUT2
DMX OUT4
PIN 1=GND
PIN 2=SIGNAL -
PIN 3=SIGNAL +
DMX
OUT
Figure 5
MIDI
OUTIN THRU
MIC RS 232
MIDI in
out
Figure 6
RS 232
AUDIO IN
SYNC
IN
L
R
OUT
COEF HIGH SPEED SERIAL INTERFACE
CHSSI
Audio &
Sync in/out
Figure 7

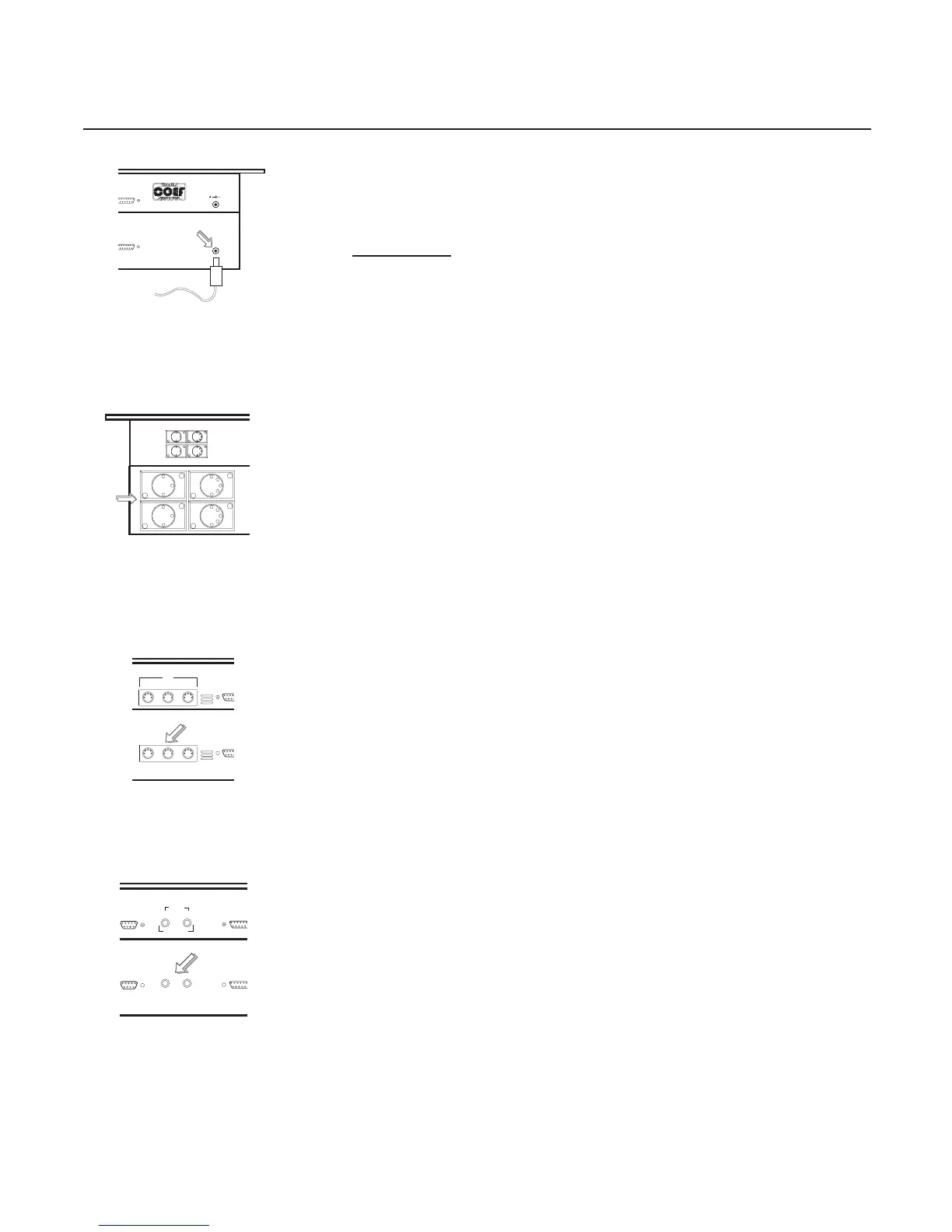

Take out the provided DC adapter and plug it into the relevant socket in the
MASTERSHOW 512 back panel (see Fig. 4).
ATTENTION!!
The voltage furnished by the above mentioned DC adapter
must be 25 Volts DC and 0.5A.
Connects the units to be checked to the outlets indicated in Fig. 5. Pay atten-
tion that the cables and the connectors don’t present short-circuits that could da-
mage the DMX outputs of the MASTERSHOW 512.
Connect the cables from and for MIDI units to the prearranged socket in the
back panel of the MASTERSHOW 512, taking care of input and output indications
clearly serigraphated on the same panel.
Audio & sync in/out can be used to connect the external musical sources. To get
the audio signals or to get the signals recorded on an audio track. The audio track
will allow a program execution synchornized with a certain piece of music.
