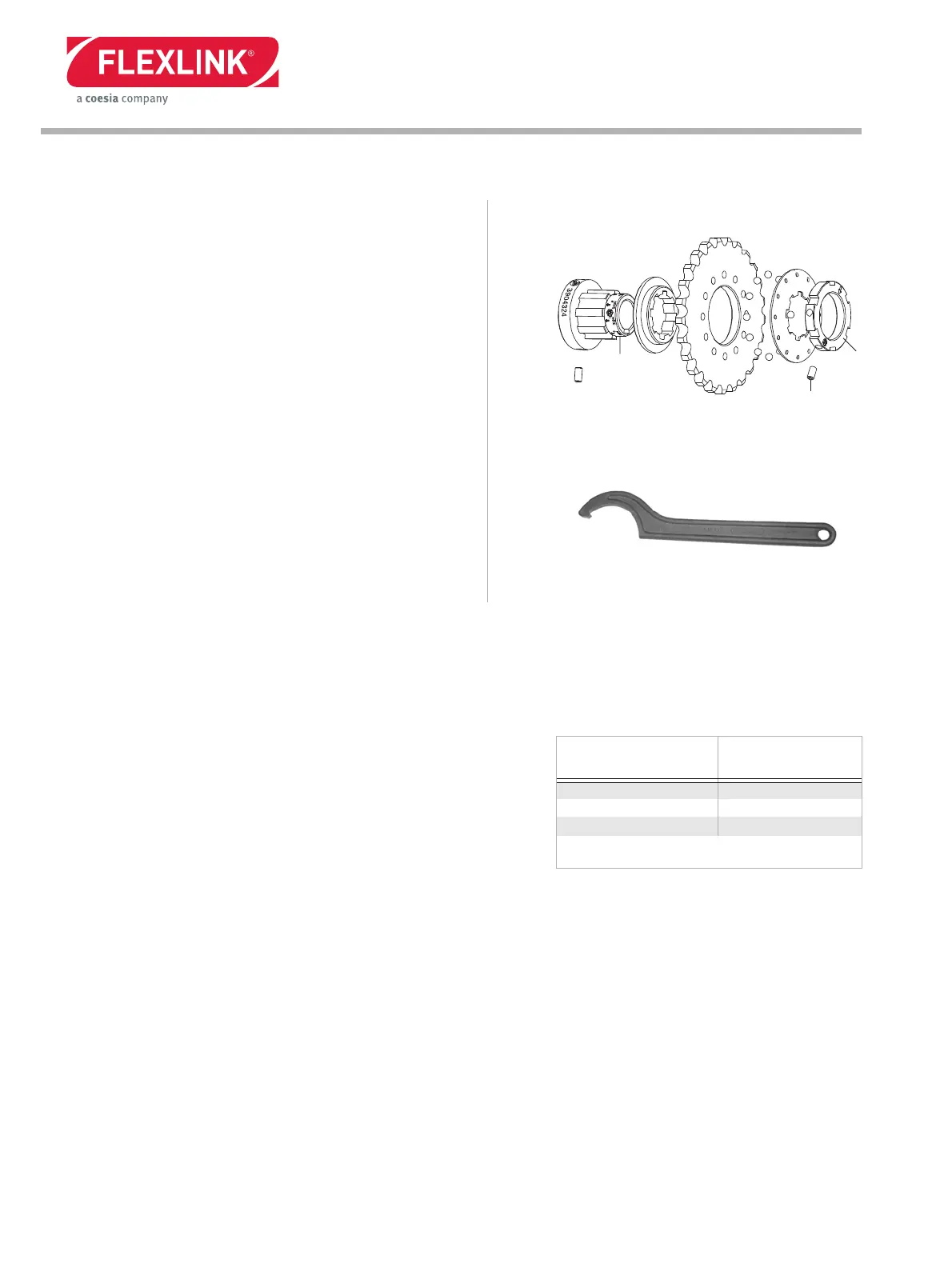

3.4.2 Clutch adjustment
3.4.2.1 Clutch adjustment table
F
max
is the desired maximum traction force applied to the chain by the
drive unit. The clutch will start slipping at forces above F
max.
1 Remove the drive unit protection
cover.
2 Use an Allen key, 3 mm, to loosen
the screw (1) on the slip clutch so
that the adjustment nut (2) can be
freely rotated.
3 Turn the adjustment nut (2)
clockwise with a hook spanner until
the arrow on the nut is aligned with
the desired F
max
value (3). See the
following table for correct values.
NB: On delivery, the clutch is always
set to “0”.
4 Tighten the screw (1).
5 Re-install the drive unit protection
cover.
Traction force, F
max
(N)
No.
X65
300 0
400 1
500 2
Article number for the slip clutch are found in Spare
parts catalogue for X65.
