Coffing Hoists EC-4016 - LIST of ILLUSTRATIONS FIG. DESCRIPTION PAGE 2-1 Coffing CT Trolley; Parts List for CT Trolley; Trolley I-Beam Adjustment Data

8
EC3-680-3 February 2017
Order # 5041558-0 & 5041679-0
TABLE 2-1. PARTS LIST FOR CT TROLLEY
Model No. Part Name
Part Numbers
1, 2 & 4 Ton 3 & 5 Ton
1 Load Pin 103K30-2 103K30-2
2 Washer (1/8” Thick) H-4211 H-4211
3 Washer (.135” Thick) H-4209 H-4209
4 Washer (.075” Thick) H-4210 H-4210
5 Nut H-3945 H-3945
6 Side Plate 5K101 5K101
7 Wheel 45J1P 45J1P
8 Axle 102K11 102K11
9 Retaining Ring H5549 H5549
10 Bearing JF504-2 JF504-2
11 Retaining Ring 5K2658-6W 5K2658-6W
12 Nut (Axle) H-3945 H-3946
13 Washer H-4211 H-4212

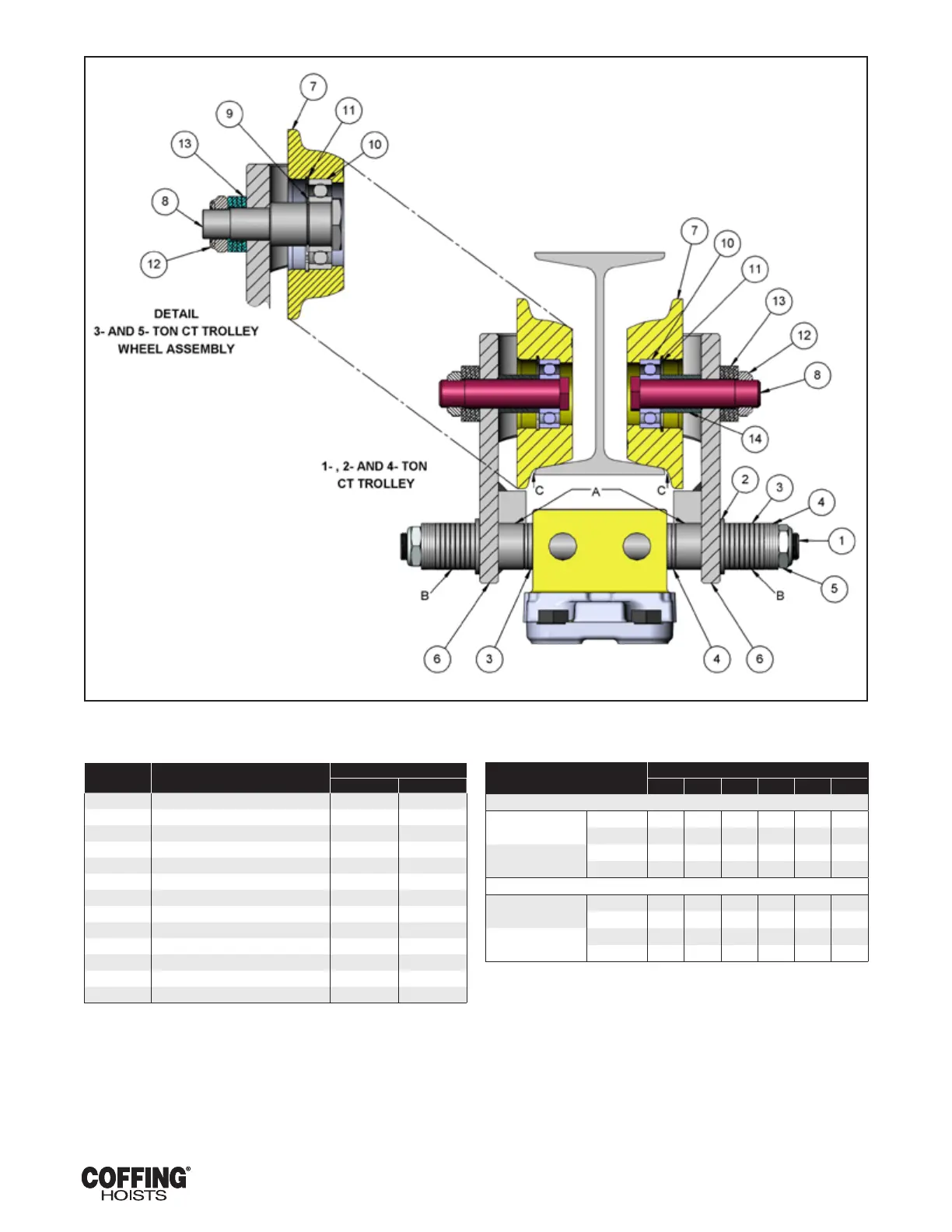

FIGURE 2-1. COFFING CT TROLLEY
TABLE 2-2- TROLLEY I-BEAM ADJUSTMENT DATA
“I” Beam Size
6" 8" 10" 12' 15" 18"
1, 2 and 3 Ton
Washers Between
Hoist & Trolley
Thick 0 3 1 4 7 6
Thin 1 0 8 5 3 8
Washers Outside
Trolley
Thick 7 4 6 3 0 1
Thin 8 9 1 4 6 1
4 and 5 Ton
Washers Between
Hoist & Trolley
Thick 1 1 3 6 6
Thin 0 4 3 1 4
Washers Outside
Trolley
Thick 6 6 4 1 1
Thin 5 1 2 4 1
