Coffing Hoists EC-4016 - Chain Container Installation

9
EC3-680-3 February 2017
Order # 5041558-0 & 5041679-0

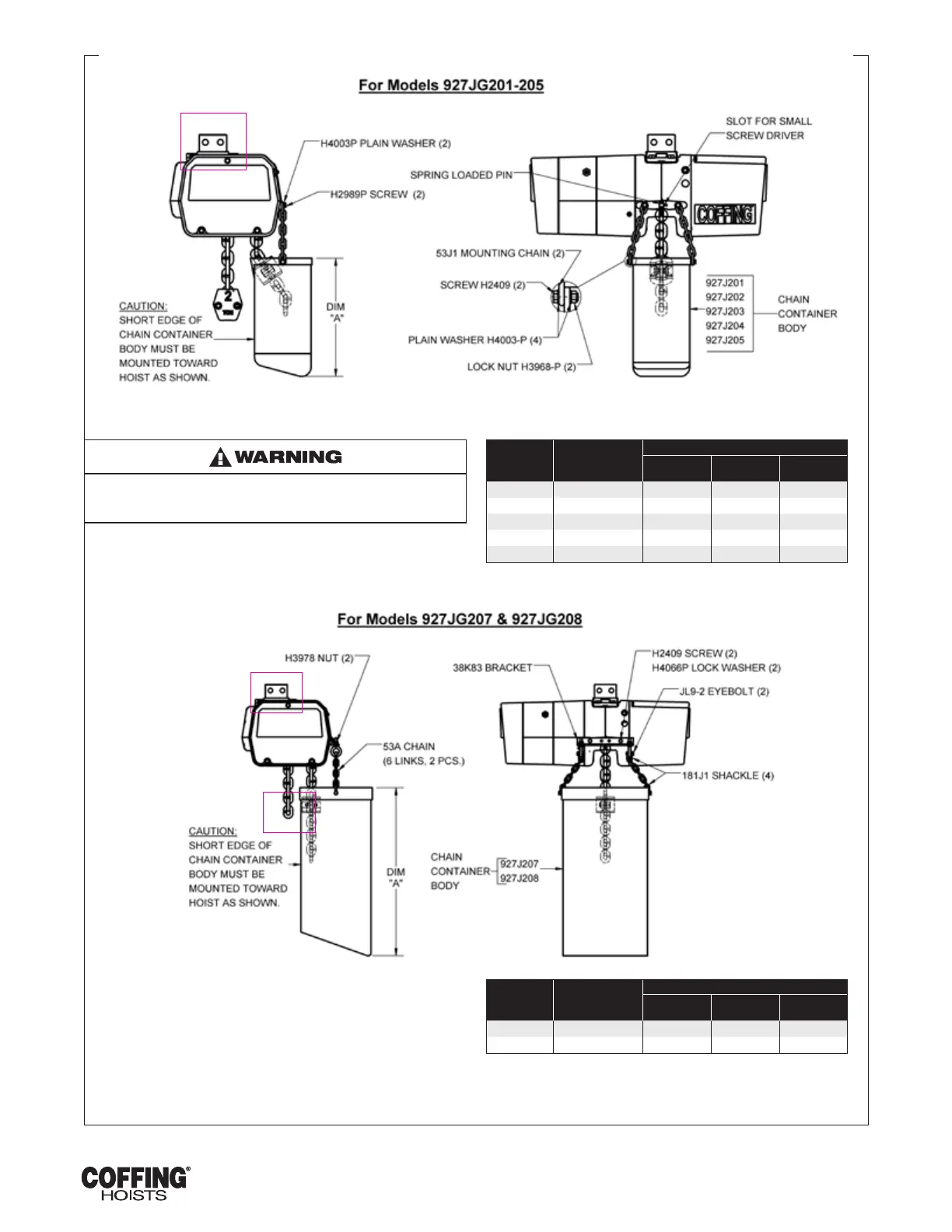

FIGURE 2-2. CHAIN CONTAINER INSTALLATION
Do not attempt to store more chain in chain container than that
specied in table or serious damage to hoist may result and
hazardous conditions may be created
Ass'y No. DIM. "A"
Max Hoist Lift (Feet)
Single
Chain
Double
Chain
Triple Chain
927JG201 16" 15' – –
927JG202 20" 30' 15' 10'
927JG203 24" 50' 25' 16-1/2'
927JG204 35" 75' 37-1/2' 25'
927JG205 48-3/4" 100' 50' 33'
Ass'y No. DIM. "A"
Max Hoist Lift (Feet)
Single
Chain
Double
Chain
Triple Chain
927JG207 28" 150' 75' 50'
927JG208 35" 200' 100' 66'
