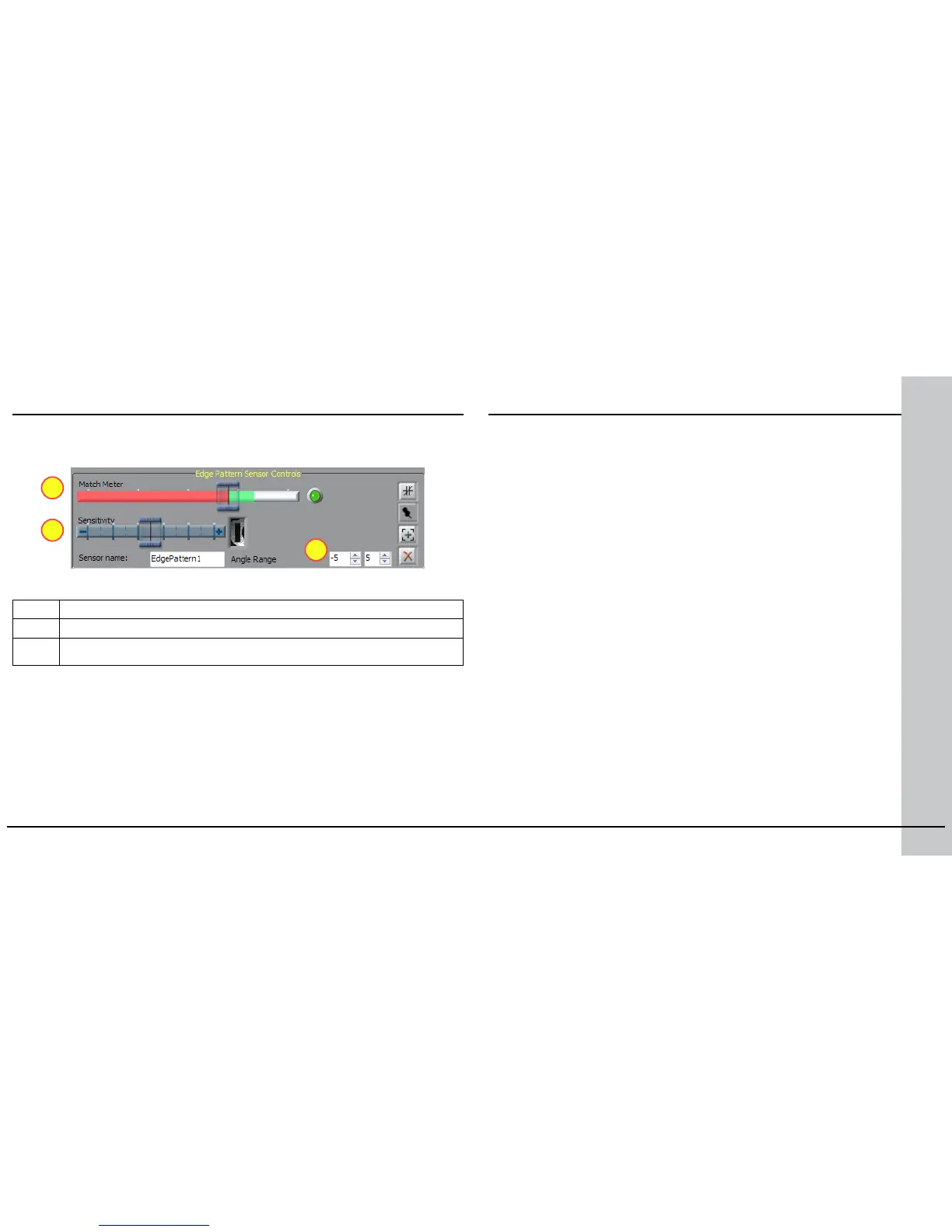

Edge Pattern sensor has the Match Meter and Sensitivity controls that let you tune the sensors to
maximize the reported difference between good and bad parts.
1 Match Meter: Features matching the training image with a score less than this fail.
2 Sensitivity: This control is used to turn the sensor to be more sensitive to ner features.
3 Angle Range: Checker takes into account the rotation angles that fall within the Angle
Range you specify.
2
1
3
