DataMan 150 Reader Dimensions

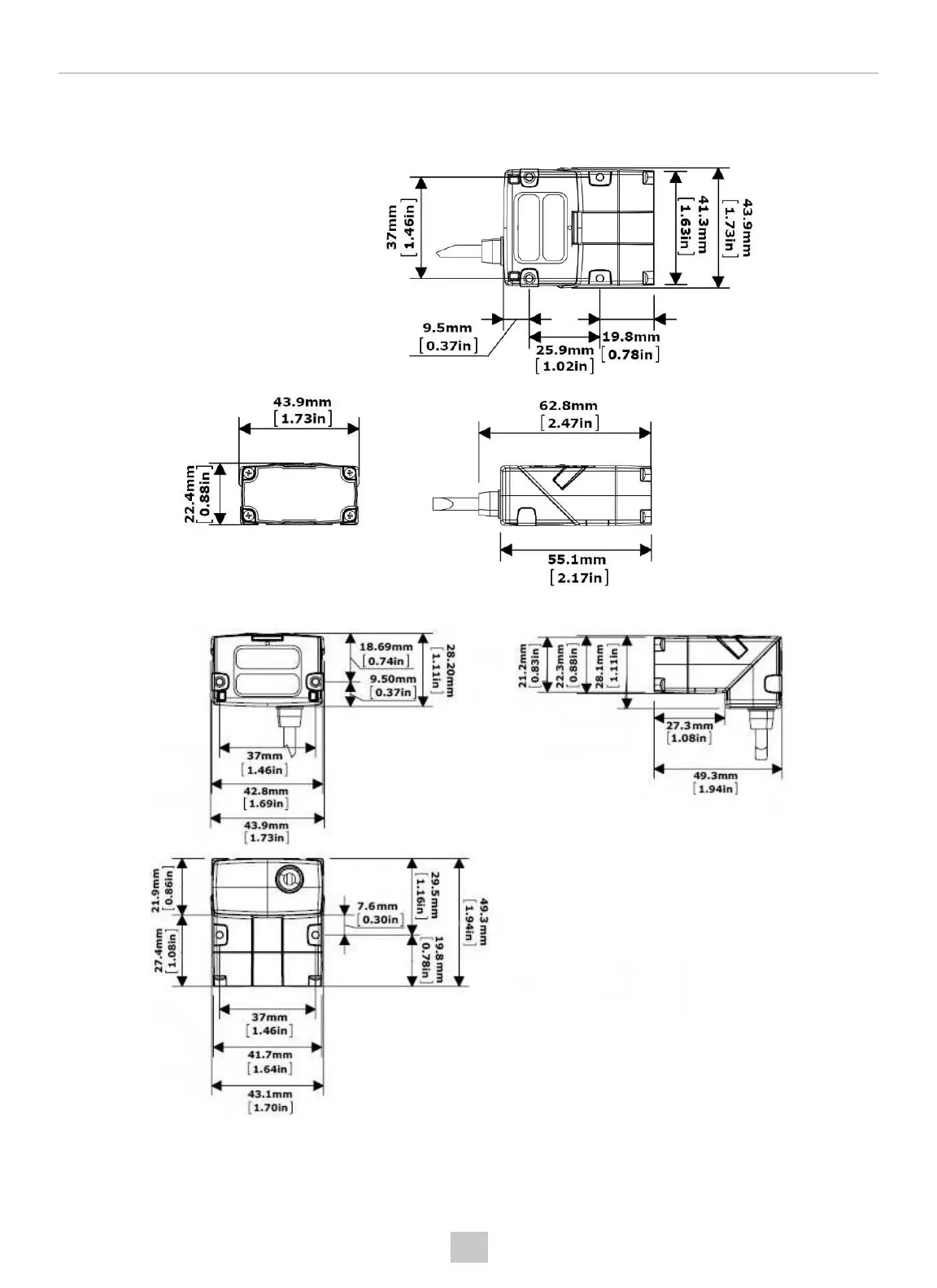

DataMan 150 dimensions in the straight configuration:

DataMan 150 dimensions in the angled configuration:

Mechanical Information
