CognitiveTPG Advantage LX - Printer Feature Overview

5
Printer Feature Overview

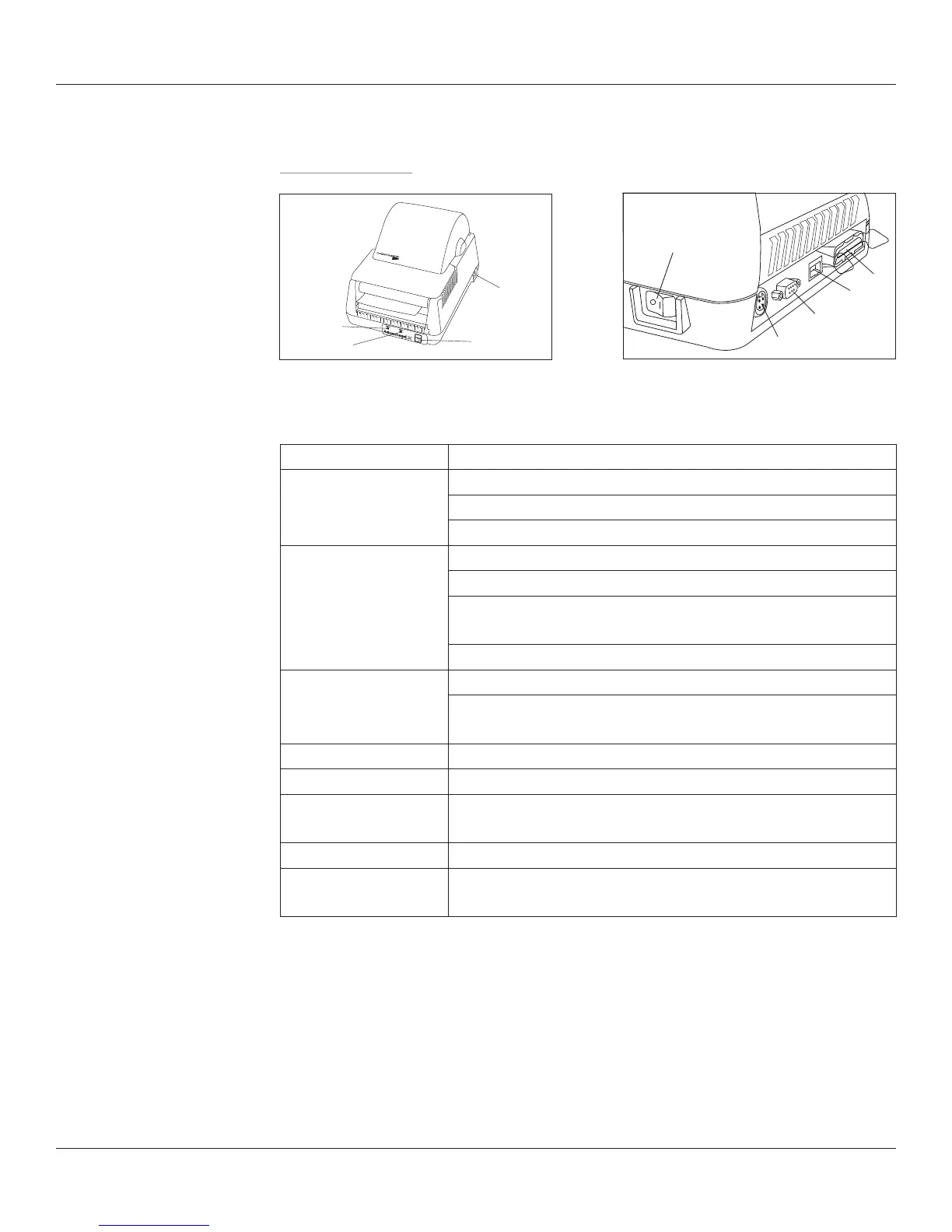

Front/Rear View
Component Function
A - Power Indicator Indicates power status
ON – printer on and ready to print
OFF- no power applied
B - Ready Indicator Indicates printer status
GREEN – printer ready to accept data
RED – printer error, empty media roll, or paused operation
during batch mode processing
OFF- no power applied
C - Feed Button Press to advance media
Press and hold while turning unit on to initiate self test and
print conguration label
D - On/O Switch Turns printer power On/O
E - Power Connector Input for auto-ranging power supply
F - Serial Port Serial(DB9)bidirectionalcommunicationsport-DTEdevice
(Usenullmodemcable)
G - Ethernet Port 10/100 Ethernet port
H-ParallelPort Parallel(1284-B36-PinCentronics)unidirectional
communications port
A
B
C
D
D
E
F
G
H
Front View Rear View
Serial, Parallel, Ethernet
(4-inchModelShown)
