SECTION 4: MAINTENANCE
Removing the Inlet Mask
(see Figure 8)
Using a Phillips screwdriver, remove the three screws
that secure the mask to the mounting frame.
Removing the Mounting Frame and Static
Grounding Spring (see Figure 8)
Using a Phillips screwdriver, remove the screws that
attach the mounting plate and grounding spring to the
main frame.

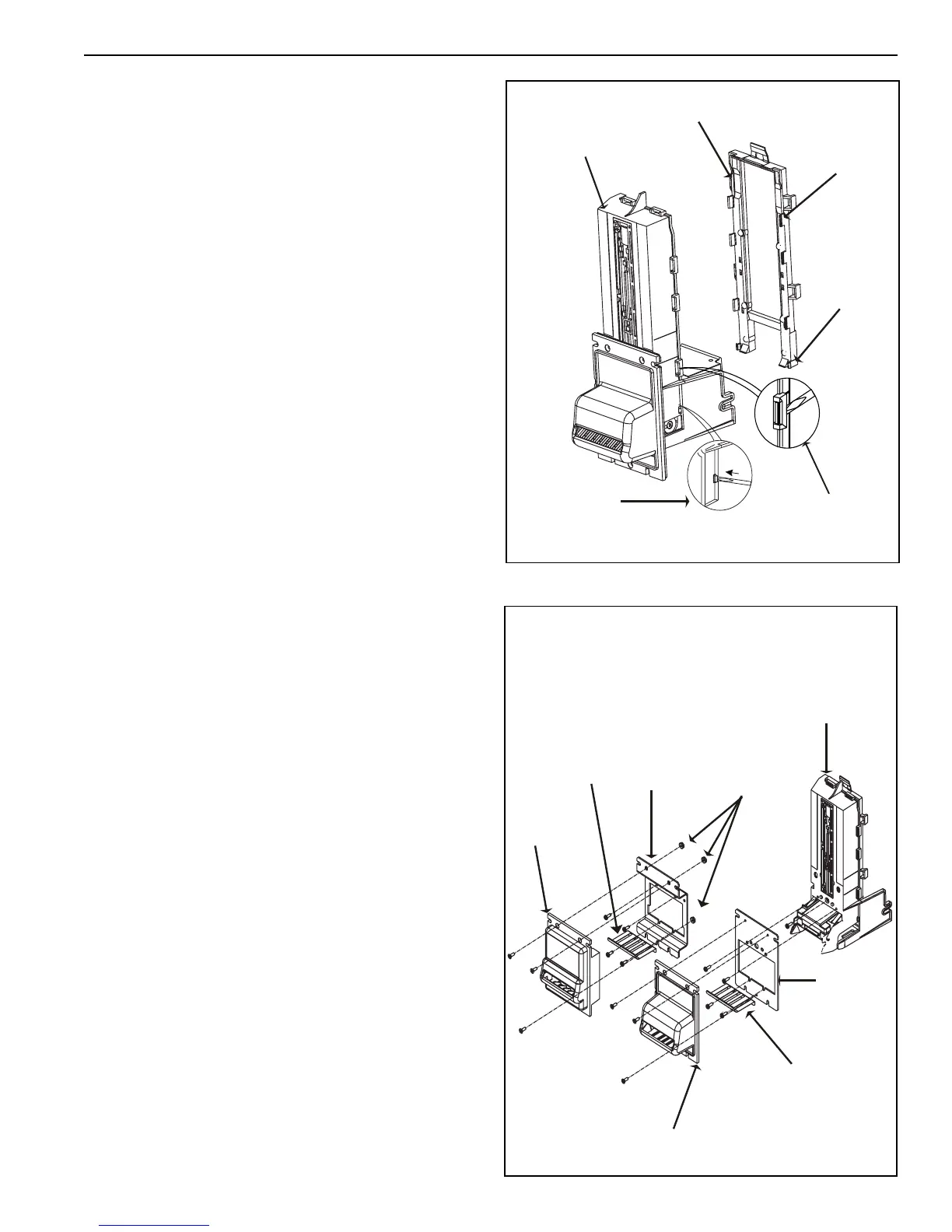

Figure 8
Main Frame
Bottler
Mask
Snack
Mask
Mounting
Frame
Mounting
Frame
Static Ground
Spring
Static Ground
Spring
Nuts
Main Frame
Intermediate Frame
Figure 7
Tab
Lower
Locking Tab
Detail
Upper
Locking Tab
Detail
Lower
Tab
Removing the Intermediate Frame
(see Figure 7)
Using a small straight tip screwdriver, free the ten
locking tabs which secure the intermediate frame to the
main frame and remove the intermediate frame.
