DISASSEMBLING THE BILLPRO

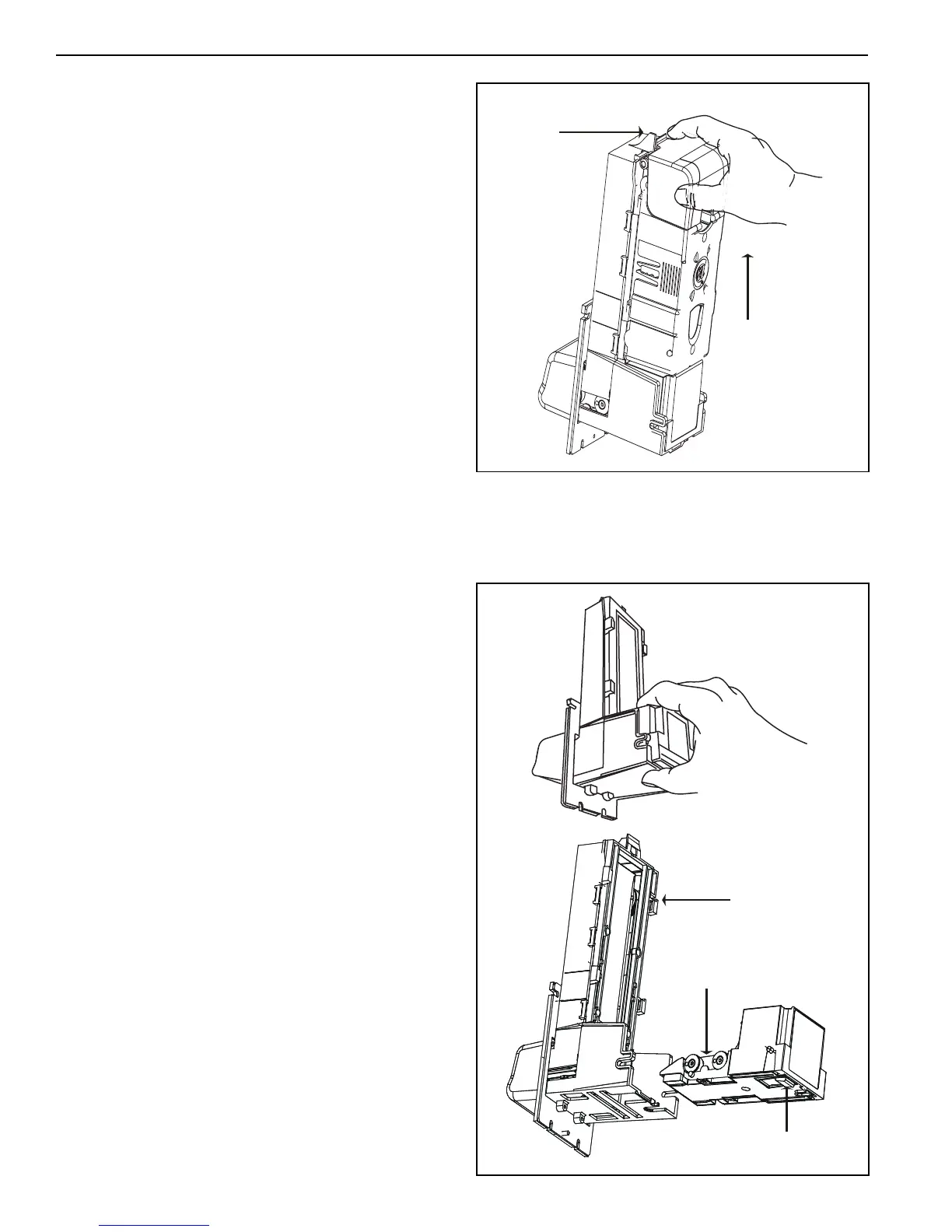

Removing the Bill Box (see Figure 5)
Push the bill box tab forward while sliding the bill
box up.
Figure 5
Bill Box Tab
Removing the Lower Housing
(see Figure 6)
To remove the lower housing, push the locking tab on the
bottom of the bill acceptor and pull the lower housing to
the rear.
SECTION 4: MAINTENANCE
Figure 6
Main
Frame
Locking Tab
Lower
Housing
Bill Box
