SECTION 4: MAINTENANCE
Removing the Mag Roller and Spring
(see Figure 16)
Lift lower enclosure out of the lower housing.

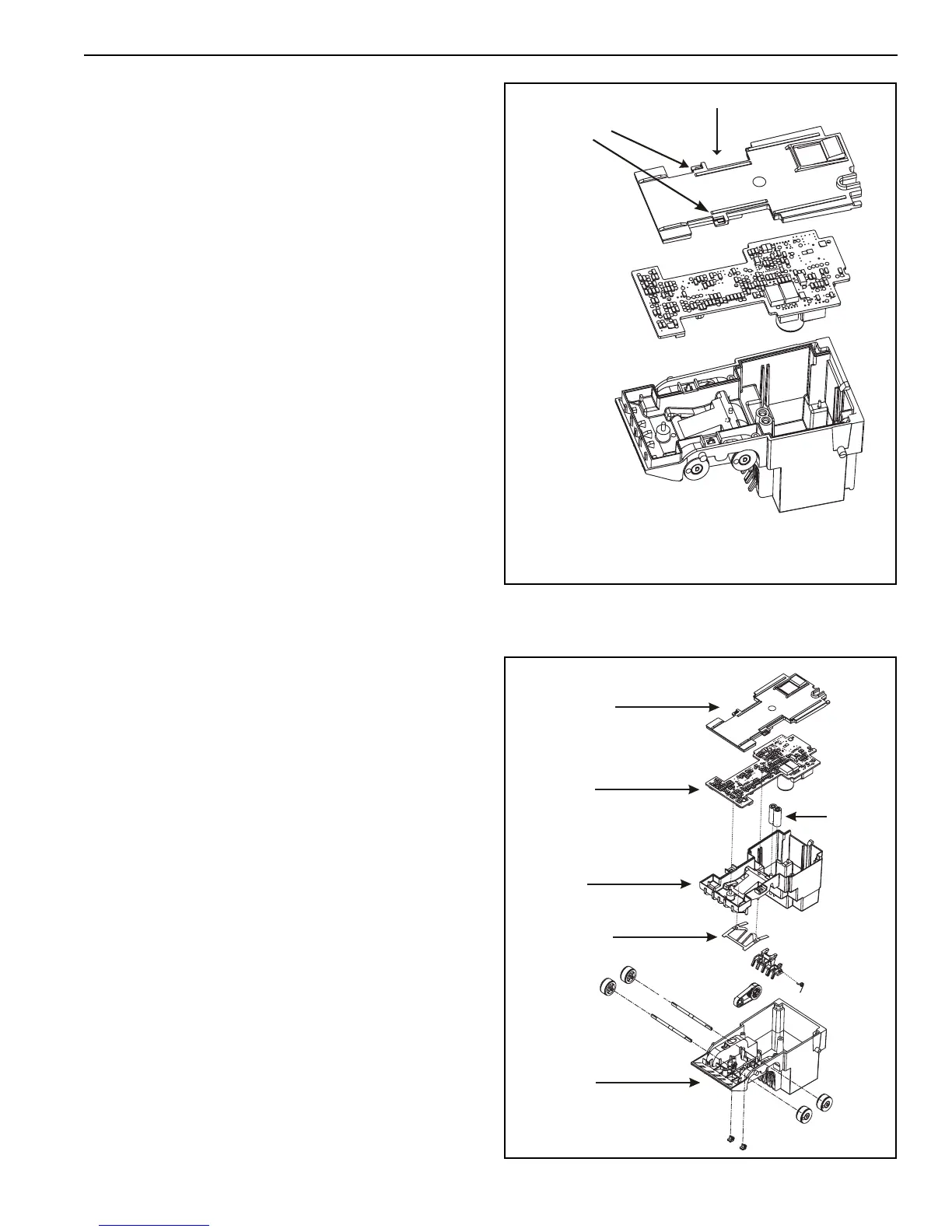

Figure 15
Figure 16
DISASSEMBLING THE LOWER
HOUSING
Removing the Printed Circuit Board
(see Figure 15)
Using a small straight screwdriver, pry up at the two
outer tabs on the lower PCB cover. Pivot the front of
the cover up and then slide forward. Lift the board out
by gently pulling up on the harness.
PCB
Bottom
Cover
Lower
Housing
Logic Board
Shroud
Spring
Lower PCB Enclosure
PCB Cover
Outer Tabs
