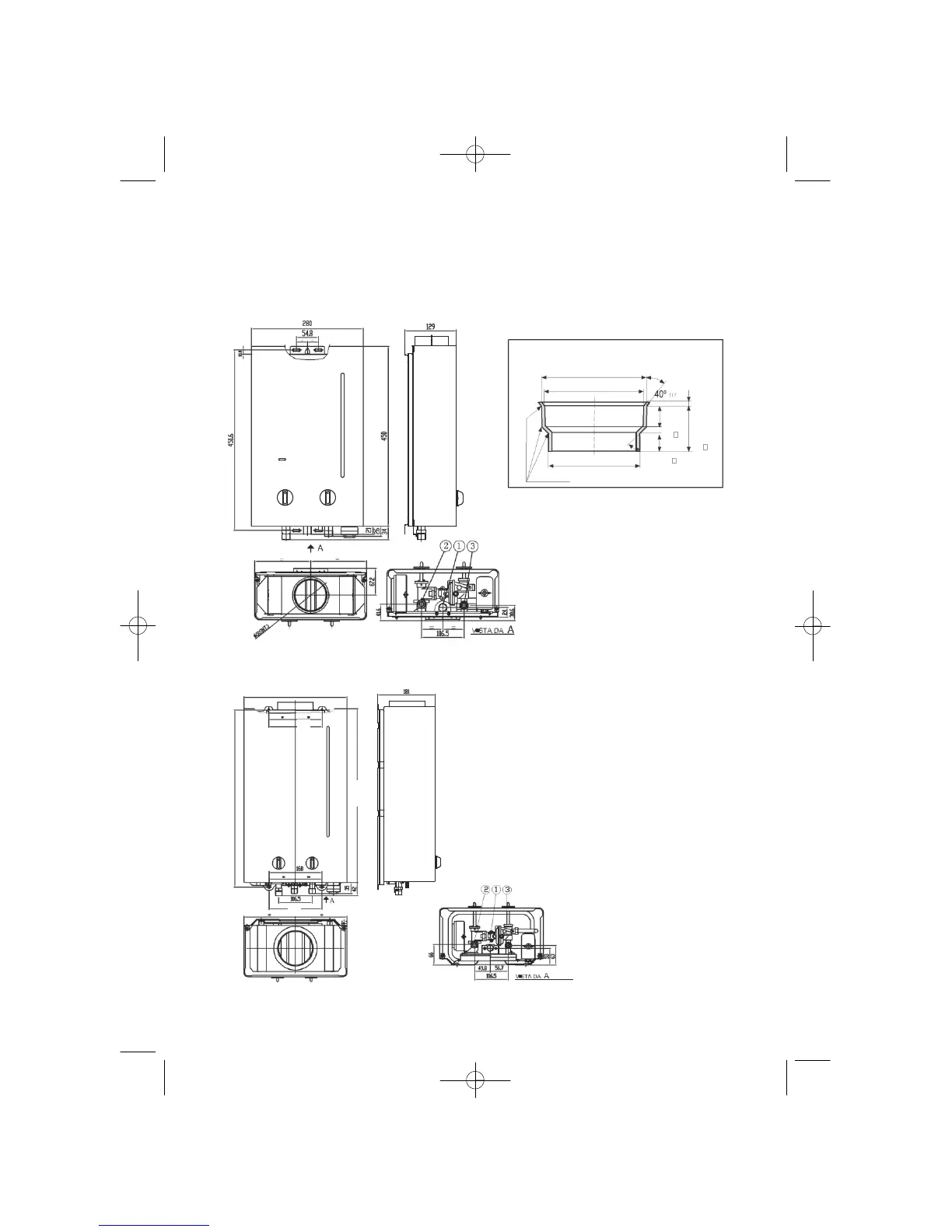

Cointra OPTIMA COB 10 - Overall Dimensions

6
5- l/min MODELS
WATER HEATERS WITHOUT PILOT LIGHT
COUPLER ø 80 to ø 100
ø 102.5
+0,5
INT .
ø 101,5
+0,5
INT .
~45º
ø 80,5
-0,5
EXT .
R. minimum
21
0,5
17
0,5
4,5
+0,5
44
1
Only install in evacuation ducts of Ø 100 combustion products.
1 = Hot water outlet : R 1/2”.
3 = Cold water inlet : R 1/2”.
2 = Butane/propane inlet : Ø 12 mm ext.
Natural gas inlet: Ø 15 mm ext.
1 0- l/min MODELS
1 = Hot water outlet : R 1/2”.
3 = Cold water inlet : R 1/2”.
2 = Butane/propane inlet : Ø 12 mm ext.
Natural gas inlet: Ø 15 mm ext.
400 (14 L)
328 (10 L)
660 (14 L)
560 (10 L)
650 (14 L)
550 (10 L)
(*)
220 (14 L)
168 (10 L)
(*)
220 (14 L)
170 (10 L)
Ø130 mm
