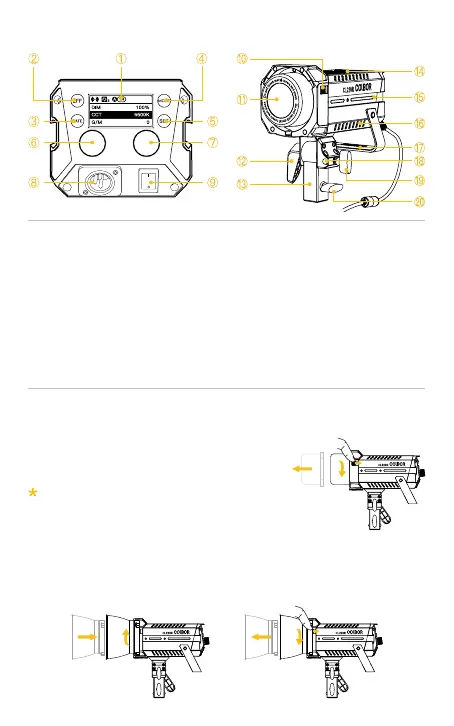

COLBOR CL220R - Product Controls and Display; LED Display Screen; Control Knobs and Buttons; Power and Mounting Ports

① LED Display Screen
② EFF Mode Button
③ EFF Rate Option Button
④ Mode Button
⑤ Settings Menu Button
⑥ Left Knob/Option Adjustment Knob
⑦ Right Knob/Parameter Adjustment
Knob
⑧ DC 48V Power Port
⑨ Power Button
⑩ Bowens Mount Lock
⑪ Light Source
⑫ Lamp Angle Adjustment Locking
Grip
⑬ Lamp Holder
⑭ Air Outlet
⑮ NATO Rail
⑯ Air Inlet
⑰ Lamp Handle
⑱ Umbrella Hole
⑲ Umbrella Hole Screw
⑳ Lamp Holder Screw
Product Instructions
Light Installation
Hold the COB cover with the Bowens Mount
tenon and rotate it in the direction of the arrow.
Note: Be sure to remove cob protective cover
and cob protective lm before use.
Installation of reector: Align the reector with the groove around the lamp
head and clip it in, turn the reector in the direction of the arrow, and the
reector installation will be completed after the top rod rebounds.
Removal of reector: Please follow the instructions below.
1. Removal of lamp cap protection cover
2. Installation and removal of reector
