Coleman Powersports RTK196 - Rear Wheel Assembly; Hardware for Rear Wheel; Rear Wheel Installation Steps; Hub Cap Installation

3

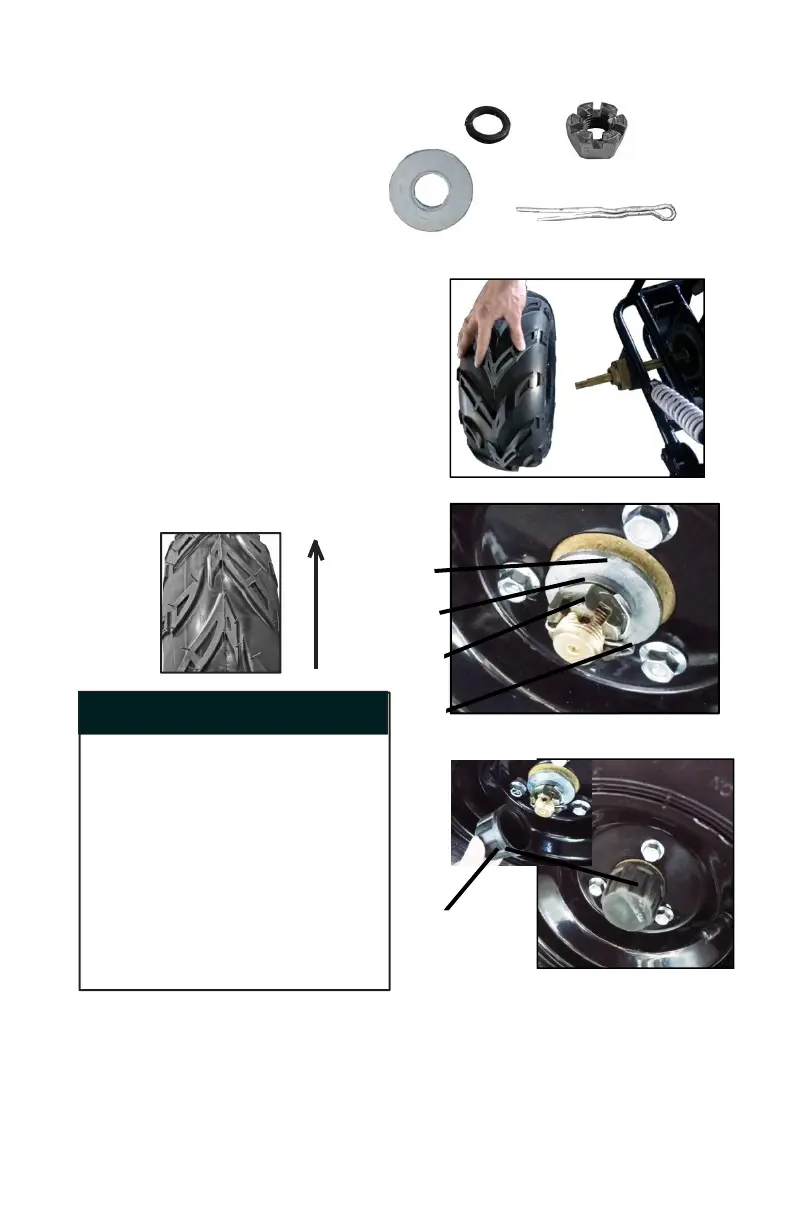

Hardware:
REAR WHEEL ASSEMBLY
1
2
M20 Washer 2ea. (1) 4
M20 Castle nuts 2ea. (2)
3
Cotter pins 2ea. (3)
Gasket 20 2ea. (4)
1.Lift the Kart with a
jack.
2.Install rear tires with
Gasket20(4),M20
Washer(1),Cotter pins and
M20 Castle nuts(2).
Note: Make sure tire tread faces
forward and Air valve stem is on the
outside of the tire when installing.
Tread
faces
forward
3、Install Hub Caps (5)
by snapping on hub.
4
1
2
3
W ARNING
!
Failing t o install co tt er pins
could be hazardous.
Failing t o install co tt er pins
could cause the castle nuts
t o fall off resulting in an
accident.
Nev er operat e Go Kar t
without co tt er pins installed .
5
