8
Griddle (sold separately and
supplied with some models)
NOTE TO PREVENT DAMAGE WHICH
WILL VOID THE WARRANTY:
›
Do not use pots, pans, ovens, etc., on this
griddle surface.
›
Do not use this griddle on a campfire or
other open fire.
›
Use this griddle only on the Coleman
stove
for which it was designed.

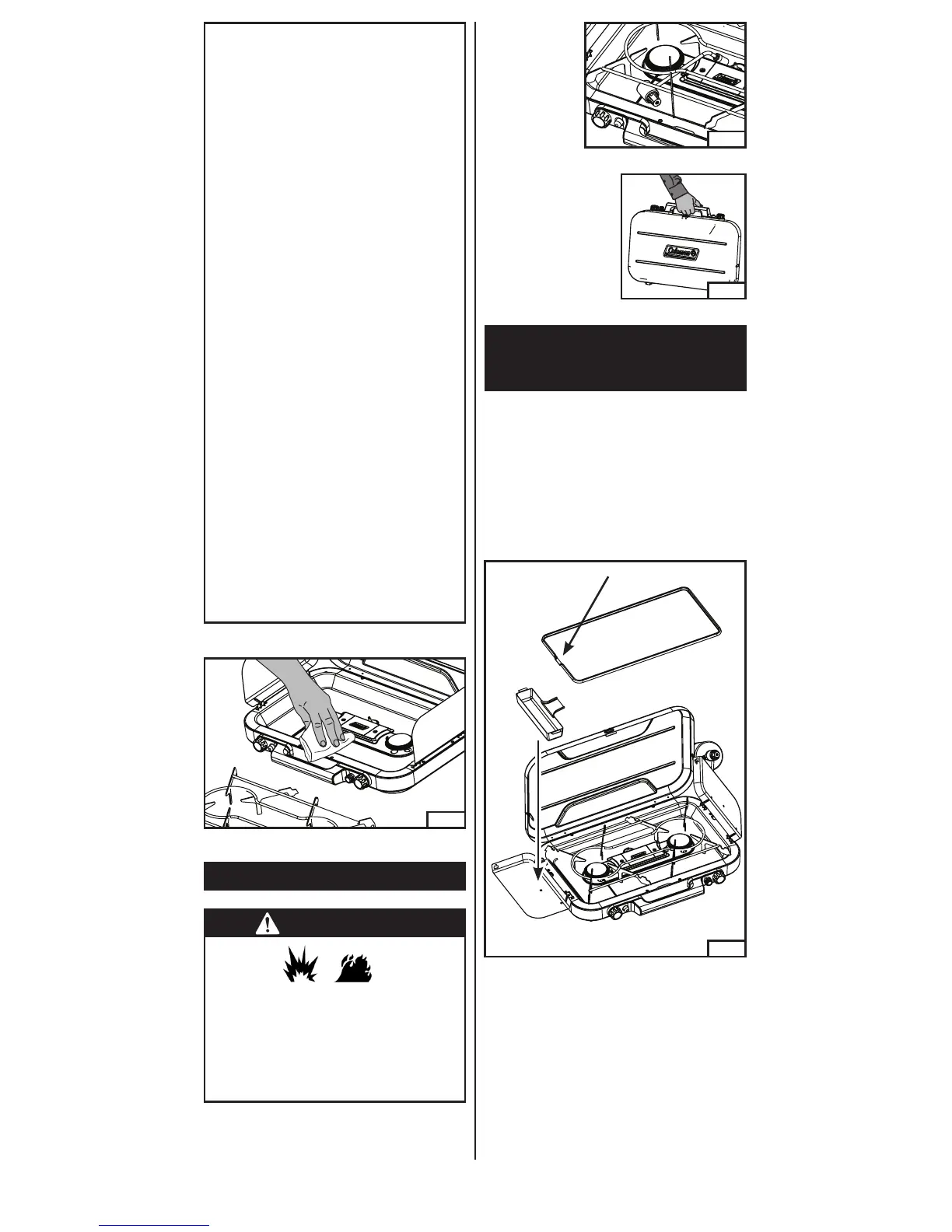

Fig. 30
Grease
Cup
Griddle
Grease Outlet
n Extend the left wind baffle down to the utensil
tray position.
n Place the grease cup on the utensil tray. The
grease cup engages the three holes on the
utensil tray.
n Lay the griddle in the center of the pot support
with the grease outlet directed into the grease
cup (Fig. 30). The tabs on the bottom side of
the griddle must engage the pot support.
n For storage or
transport,
the regulator
may be located
below the pot
support.
(Fig. 28)
Fig. 28
Fig. 29
n To carry the stove,
firmly grasp the stove
by the handle.
(Fig. 29)
MAINTENANCE SCHEDULE
›
No regular maintenance is required for the
stove except cleaning.
›
Keep exterior surfaces clean.
›
Air flow must be unobstructed. Keep controls,
burner, and circulating air passages clean.
Signs of possible blockage include: Gas
odour, popping noises and smokey flame.
›
Spiders and insects can nest in burner orific-
es. This condition can damage the stove and
render it unsafe to use. Clean burner holes by
using a heavy-duty pipe cleaner. Compressed
air may help clear away small particles.
›
Carbon deposits may create a fire hazard.
Clean burner with warm soapy water if any
carbon deposits develop.
›
Keep stove area clear and free from
combustible materials, gasoline and other
flammable vapors and liquids.
›
Do not obstruct the flow of combustion and
ventilation air on the body of the appliance
and the area below the burners.
›
A good flame should be blue with minimal
yellow tip. Some yellow tips on flames are
acceptable as long as no carbon or soot
deposits appear.
›
Wipe clean with soft cloth and mild dish
detergent. Do not use abrasive. (Fig. 27)
Fig. 27
DANGER
EXPLOSION - FIRE HAZARD
›
Never store propane near high heat, open
flames, pilot lights, direct sunlight, other
ignition sources or where temperatures
exceed 120 degrees F (49°C).
›
The cylinder must be disconnected when the
stove is in storage.
To Store
To Next Page
