Assemble two Cart Spacers
to the Grill Cart.
Step
4
10

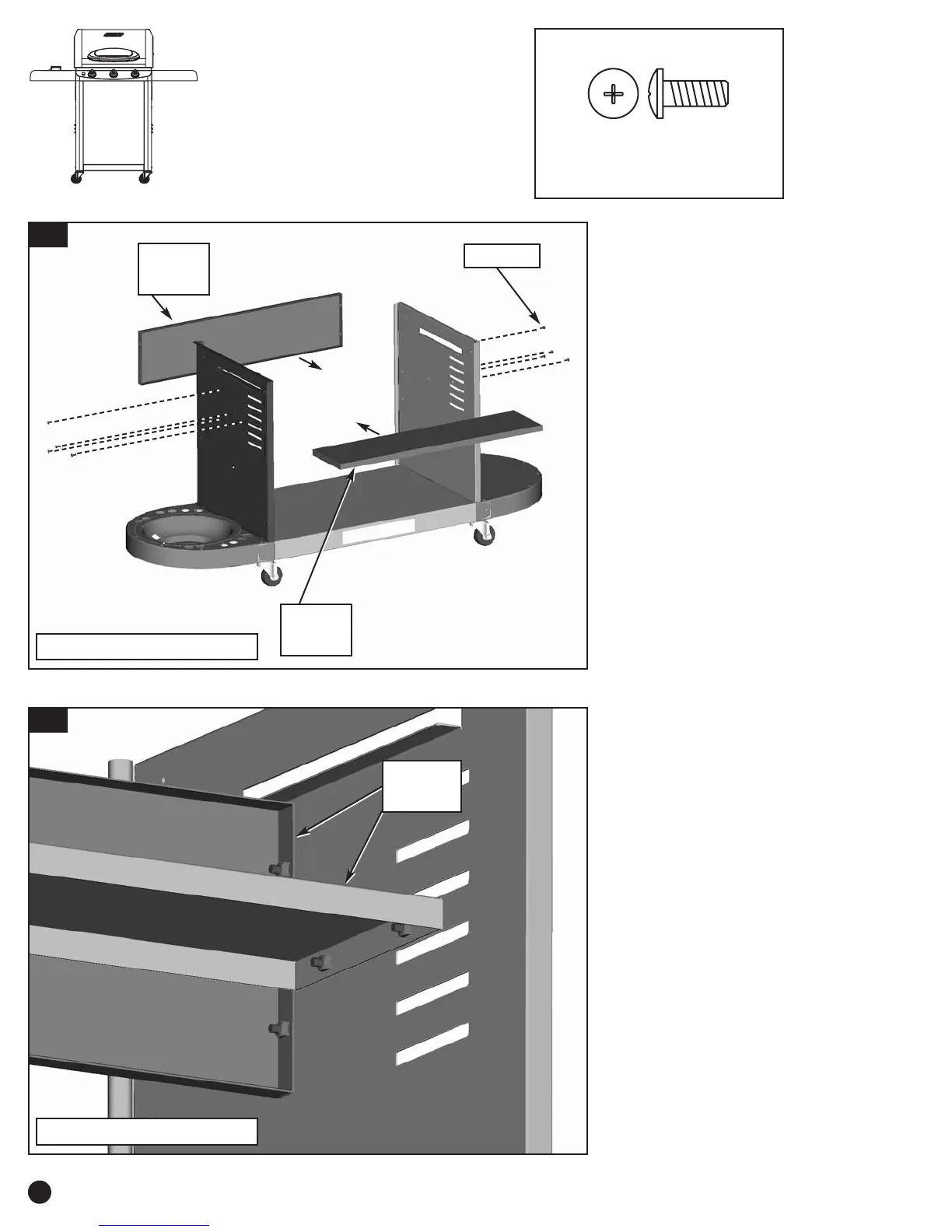

4-A. Assemble two Cart Spacers between
the Left and Right Panels using eight
Screws (TN).
ÖÖ
NOTE: The Cart Spacers are identical.
Assemble one vertically and one hori-
zontally.
ÖÖ
Tighten all fasteners.
Hardware shown actual size
(TN)
M6 x 15mm Screw
(8) Qty.
Cart
Spacer
4-A
Cart
Spacer
View of Grill from Rear
TN (x8)
4-B
View of Grill from Rear
4-B. View of Cart Spacers properly
assembled.
Back
Cart
Spacers
