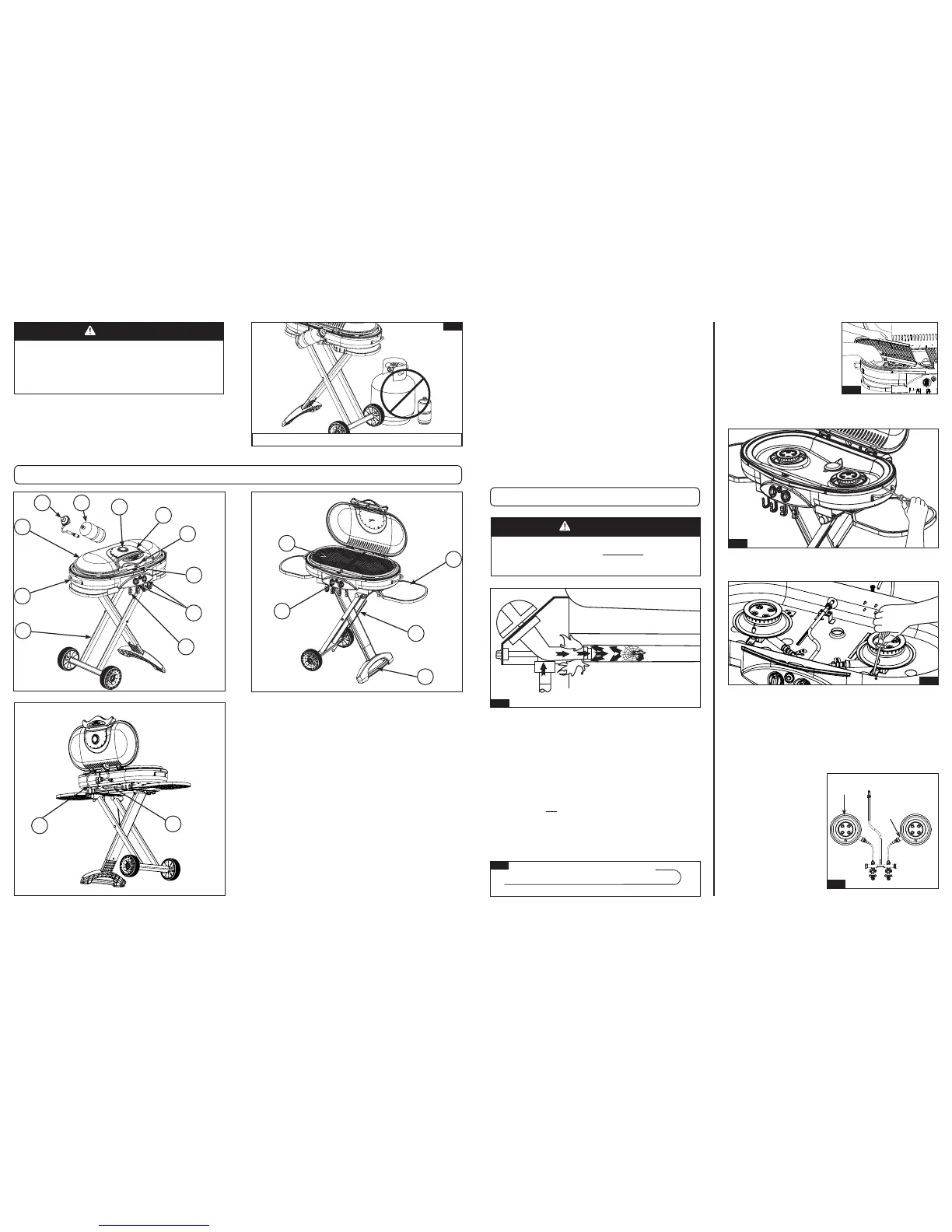

Coleman 9949 Series Use, Care & Assembly Manual

Español-4
Tapa de la Parrilla1.
Regulador2.
Cilindro Desechable (No Incluido)3.
Termómetro4.
Placa de la Tapa5.
Asa de la Tapa6.
Picaporte para abrir la Tapa7.
Perilla de Control8.
Soporte para Herramientas9.
Patas con Ruedas10.
Asa para Cargar11.
Mesa Lateral12.
Extensión para Fósforo (Se guarda en la pata)13.
Asa para Remolcar14.
Encendedor Electrónico15.
Super cie para hacer Parrilla/Asar16.
Bandeja para Goteos17.
Soporte del Cilindro18.
17
13
14
15
12
16
18
PELIGRO
NUNCA guarde un cilindro de suministro de gas L.P. de •
repuesto bajo el armazón de la parrilla ni dentro de la parrilla
ni alrededor de ningún aparato que produzca calor. (Fig. 2)
El no seguir esta información exactamente podría resultar en una
explosión y/o fuego causando muerte o lesiones graves.
Caracteristícas de la Parrilla
Fig. 2
ILUSTRACIÓN REPRESENTATIVA
1
7
3
2
4
5
6
9
10
11
8
English-11
Suggested Cleaning Materials:
• Mild dishwashing liquid detergent • Hot water
• Wire brush • Paper clip • Nylon cleaning pad
• Soft brass-bristled brush • Putty knife • Scraper
Component Cleaning:
BURNER: Wire-brush loose corrosion from the burner ex- •
terior. Clean clogged gas port holes with an opened paper
clip. Replace corroded or damaged burners that would
emit excess gas.
COOKING GRATES: Clean cooking grates with mild •
soap and hot water. Remove stubborn residue with a mild
cleanser or scrub brush. DO NOT use a commercial oven
cleaner.
GRILL INTERIOR: Remove grates. Scrape side with tools •
and remove excess grease and cooking residue.
Cleaning the Venturi
WARNING
Spider’s nests or wasp’s mud inside the venturi may cause
 re at the valve. If a  re occurs, immediately turn off the gas
supply at the control valve (see representative illustration in
Fig. 33).
REPRESENTATIVE ILLUSTRATION
Note:
Spiders and small insects can spin webs and build nests
inside the venturi tubes. This especially occurs in late
summer and fall before frost when spiders are most active.
These nests can obstruct gas  ow and cause a  re in and
around the burner valves. Such a  re can cause operator
injury and serious damage to the grill. To help prevent a
blockage and ensure full heat output, clean and inspect the
venturi tubes often (once or twice a month). NOTE: Water or
air pressure will not normally clear a spider web.
Steps For Cleaning Venturi:
1. To remove the above obstructions, use an accessory
 exible venturi brush or bend a small hook on one end of a
20-inch long  exible wire such as the one shown in Fig. 34.
2. Remove the cooking
grates set aside. (Fig. 35)
3. Using a screwdriver, remove the screws holding the
cooktop and set aside. (Fig. 36)
4. Using a screwdriver, remove the self-tapping screws holding
the burner clamps and remove the burners. (Fig. 37)
5. Look inside lower end of venturi tubes for nests, webs or
mud. If present, clean as noted in Step 1, Fig. 34.
6. Inspect and clean the burner if needed.
7. Replace the main burners and burner clamps, and
position the burners in the operating position.
8. Make sure the ori ce  ttings are inside the venturi tubes,
then tighten all self tapping screws. (Fig. 38)
9. Reinstall the cooktop and
the cooking grates.
Fig. 33
Fig. 34
Fig. 35
Fig. 37
Burner
Venturi
Tube
Fig. 38
Fig. 36
