ASSEMBLY:
1) Carefully remove all parts from the cardboard cartons and lay them on a flat surface in
order to take an inventory of all the pieces. Keep your box for storage or in case you ever need
to ship your telescope.
2) Remove the tripod (1) from the box. Set the tripod on a level surface and fully spread the
legs.
3) Remove the telescope optical tube (2) from the box.
4) Position the telescope optical tube (2) on top of the tripod head, aligning it to the fixing
screw (9). Connect the telescope optical tube to the tripod and secure it in place by tightening
the fixing screw. DO NOT OVERTIGHTEN.

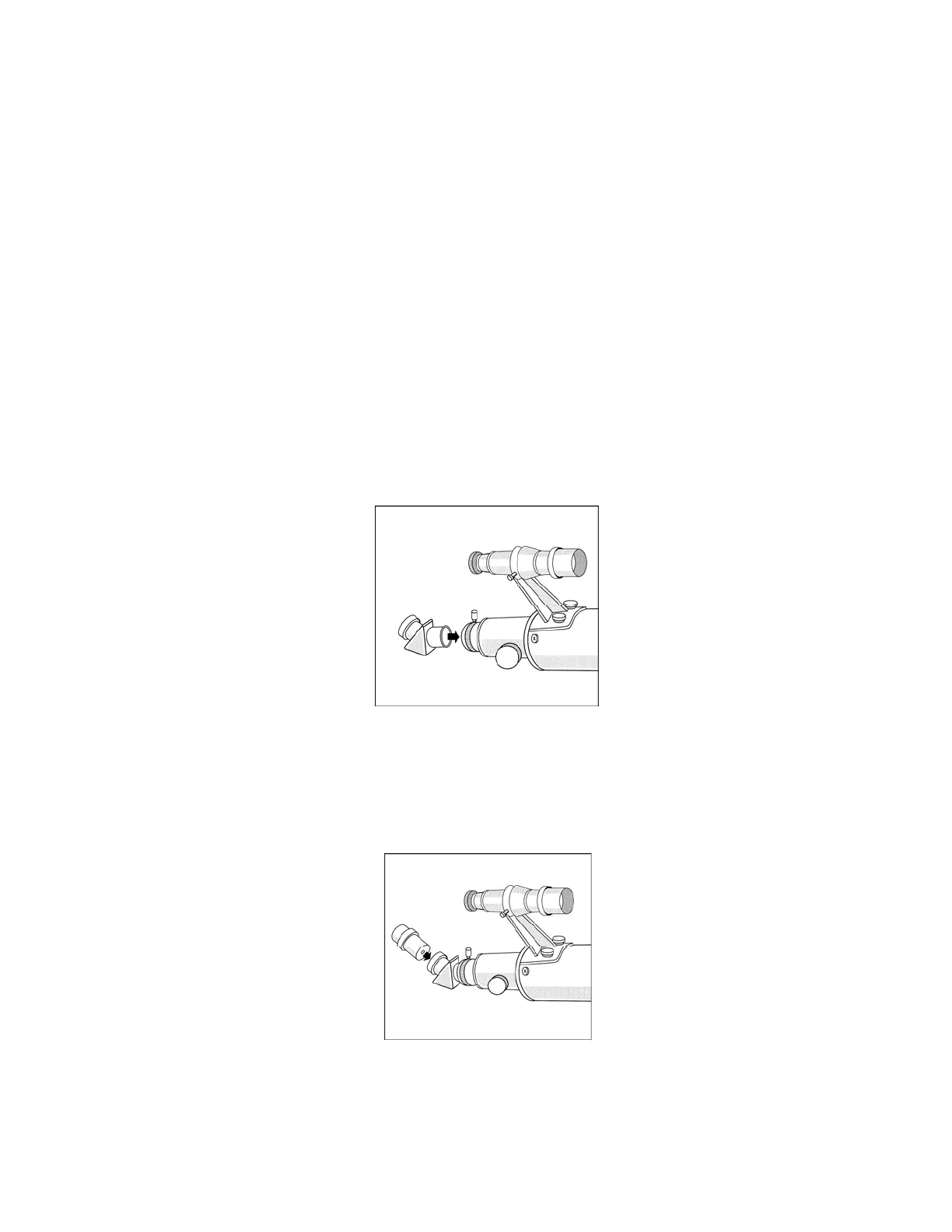

5) Remove the erecting diagonal prism (4) from the box. Insert it into the focusing tube (3).
Secure the erecting diagonal prism in place by tightening the set screw.
(See Illustration 1)
(Illustration 1)
6) Remove either the K10 or K25 eyepiece (5) from its protective case. Insert the eyepiece
into the erecting diagonal prism. Secure the eyepiece in place by tightening the set screw.
(See Illustration 2)
(Illustration 2)
