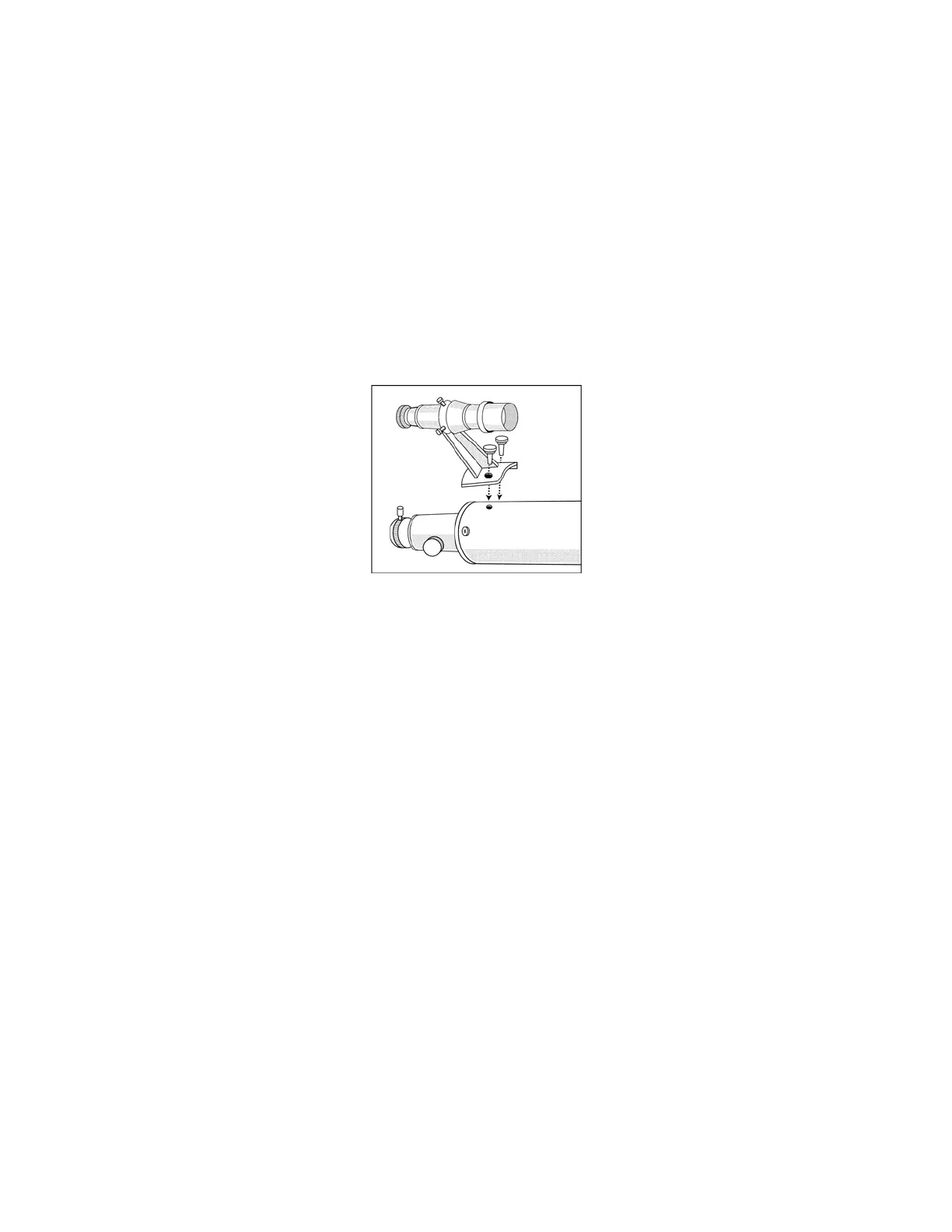

7) Remove the finderscope and the finderscope bracket (6) from the box. Remove the two
knurled thumbscrews from the telescope main tube (See Illustration 3). Position the
finderscope bracket onto the telescope tube so that the holes in the base of the bracket line up
with the exposed holes in the telescope tube. Replace the two knurled thumbscrews and
tighten securely (See Illustration 3). Insert the finder scope into the bracket and tighten the
knurled thumbscrews to keep the finder scope securely in place.
(Illustration 3)
The basic assembly of your telescope is now complete and ready for observing far away
celestial and terrestrial objects.
