8
9
10
12
14
15
16
19
20
21
23
27
25

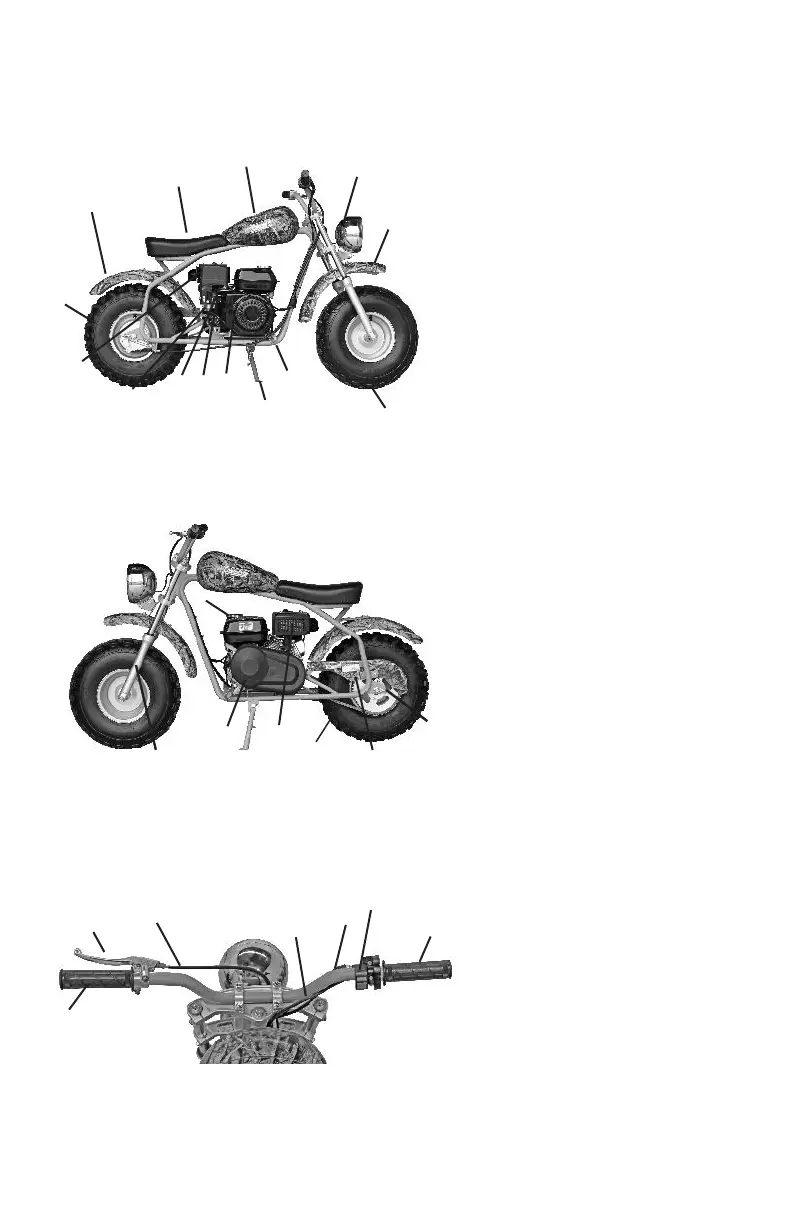

DESCRIPTIONS AND PART LOCATIONS
5
28
7
2
4
1
6
7
13
11
26
18
17
16
22
24
1. Rear Fender
2. Seat
3
3. Faux Fuel Tank / Storage
4. Headlight
5. Front Fender
6. Front Wheel
7. Foot Pegs
8. Kick Stand
9. Starter Recoil
10. Fuel Valve
11. Choke Lever
12. Carburetor
13. Air lter assembly
14. Rear Wheel
15. Fuel Tank and Cap
16. Chain Guard
17. Chain
18. Chain adjustment
bolts
19. Muer
20. Clutch Cover
21. Front Shocks
22. Left Hand Grip
23. Rear Brake Lever
24. Rear Brake Cable
25. Throttle Cable
26. ON/OFF Switch Wire
27. ON/OFF Switch
28. Throttle Grip

Other manuals for Coleman CT200U-EX V

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Coleman CT200U-EX V and is the answer not in the manual?

Coleman CT200U-EX V Specifications

General IconGeneral
Horsepower6.5 hp
Weight Capacity200 lbs
Fuel SystemCarburetor
Starting SystemRecoil start
Final DriveChain
FrameSteel
Rear BrakeDrum
Top Speed24 mph
TransmissionAutomatic
Tires19 x 7-8
Dry Weight119 lbs
Engine TypeAir-cooled, 4-stroke, single-cylinder
