8-20 Periodic Maintenance and Adjustment
Tightening torque:
Differential gear oil drain bolt:
16.3 ft·lbs (23Nm, 2.3m·kgf)
5. Fill the differential gear case with the
recommended oil.
Recommended oil:
SAE 80 API GL-5 Hypoid gear oil
Oil quantity:
0.3 qt (0.28L)
CAUTION :
Be sure no foreign material enters the
differential gear case.
6. Install the differential gear oil filler bolt,
and then tighten it to the specified torque.
Tightening torque:
Differential gear oil filler bolt:
16.3 ft·lbs (23Nm, 2.3m·kgf)
7. Check for oil leakage. If oil leakage is
found, check for the cause.

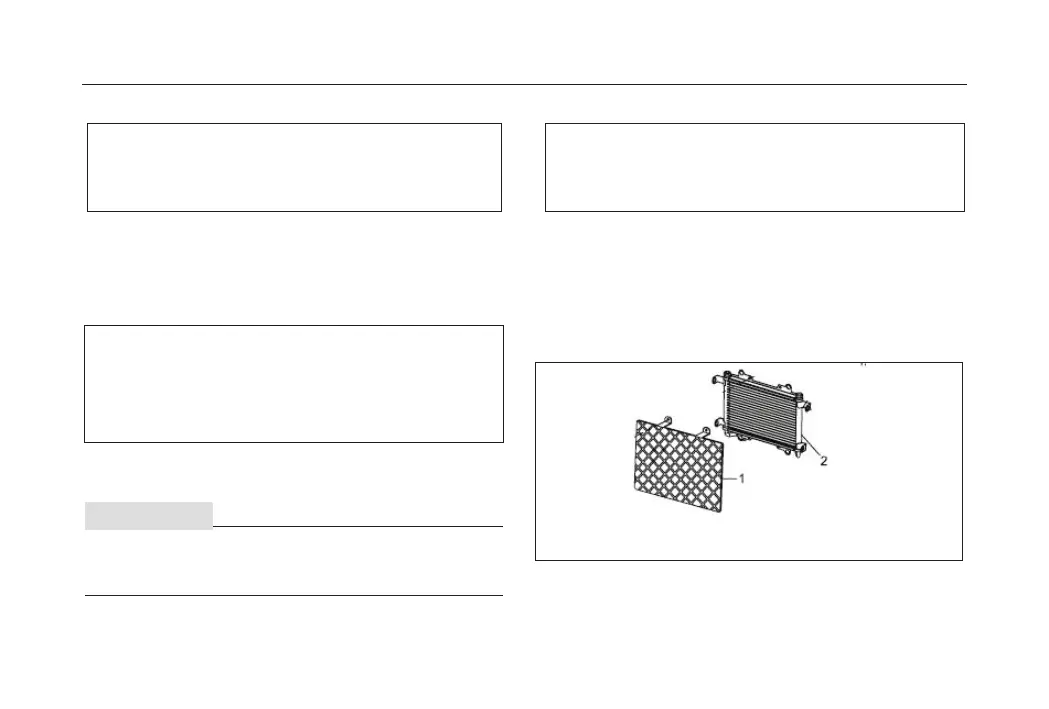

Oil cooler
1. Oil Cooler
2. Protection net. protection net;
