Attach Center Pole and Upright Poles to
Hub.
– Insert center pole end into top of hub.
Repeat for other end. (illus. 5), (illus. 6)
– Insert the upright pole end with the clip
into the bottom of the hub until it clicks
into position. (illus. 5), (illus. 6)
– Insert the metal clip located at the
center of the tent, into the bottom
of the upright pole. (illus. 7)
– Repeat for second upright pole
on other side of tent.
Attach Frame Clips
– Attach frame clips along the edges of
tent to frame poles. (illus. 6), (illus. 8)
5
4

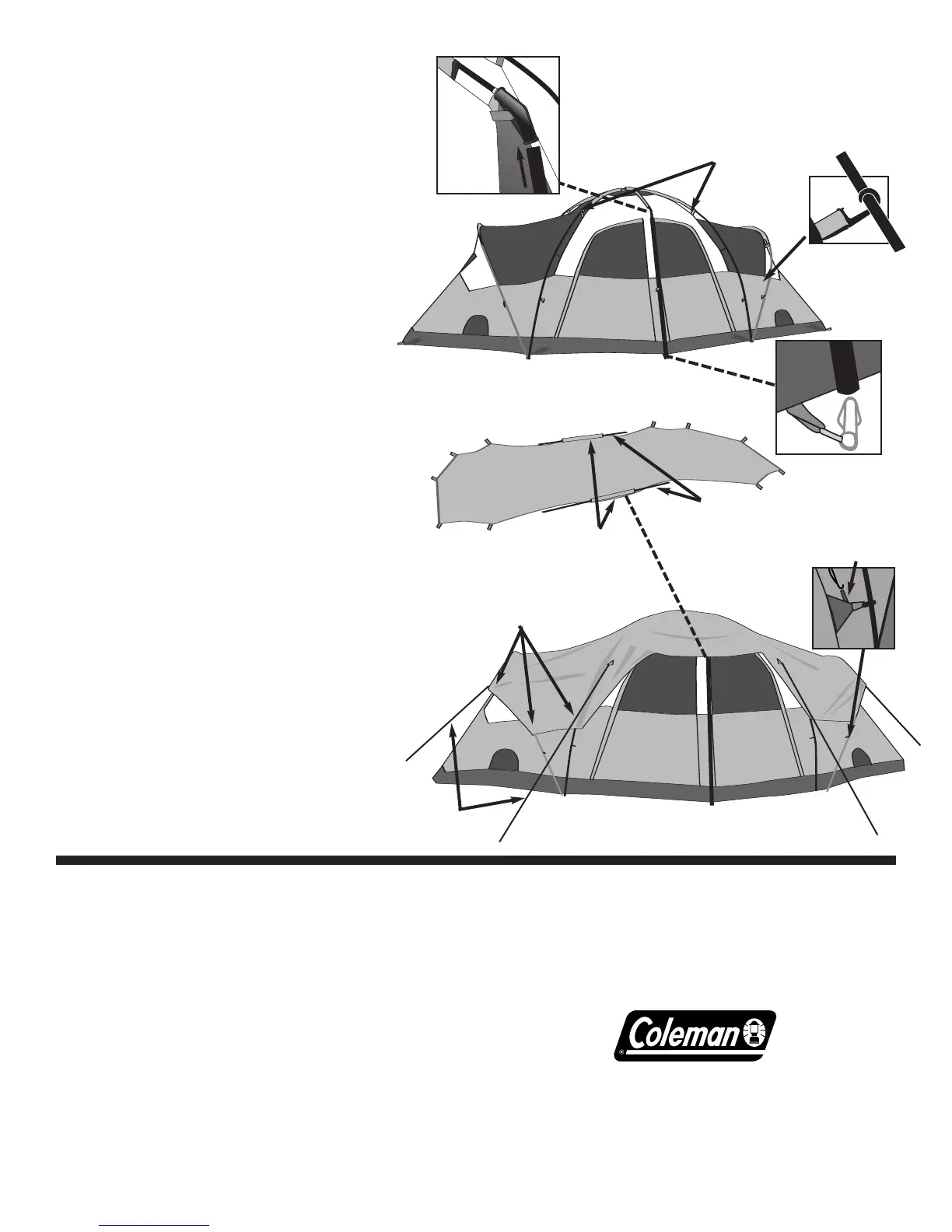

illus. 6 Assembled tent without rainfly
.
illus. 8
Frame clips
illus. 10 Completed tent with rainfly.
illus. 7
illus. 5
Center pole inserted into top of Hub
and Upright pole inserting into bottom
of hub.
illus. 9
Rainfly
Underside of rainfly
attaches to frame poles
Grommets for
rainfly poles
Rainfly pole
sleeves
Rainfly poles
Guylines
Attach Rainfly
– Assemble rainfly poles by interlocking
shock-corded poles.
– Insert rainfly poles into pole sleeves
located at the center edges of the
underside of rainfly. (illus. 9), (illus. 10)
– Drape rainfly over tent frame, pole side
down. Rainfly poles should be over front
and rear doors. (illus. 10)
– Hook the eight elastic loops (found at the
rainfly corners) to the fabric loops on the
bottom row of frame clips. (illus. 11)
– Insert the tips of the rainfly poles into the
grommets on the front and rear of tent.
(See above illus. 6)
– Secure rainfly with attachments located
on underside of fly. (illus. 9)
– Attach and stake out guylines.
illus. 11
Hooks attach to
fabric loop
Things You Should Know
•
Under certain conditions (cold weather, high humidity, etc.)
condensation will form on the inside surfaces of your tent. Condensation is
caused by water vapor from your breath, perspiration, or any wet clothing
inside your tent. It is NOT LEAKAGE through the tent fabric. It can be
minimized by removing wet clothing from your tent and by providing good
ventilation through the tent.
•
Never store tent, even for a short period of time, without drying it
thoroughly and brushing off caked dirt. Do not pack stakes or poles inside
your tent. Use a separate storage bag.
•
STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.
NEVER PULL ON THE TENT FABRIC OR TENT STAKE LOOP TO
REMOVE STAKE.
•
TENT POLES SHOULD NOT BE LEFT TELESCOPED
TOGETHER DURING STORAGE.
•
Seam sealer has not been provided with your tent. For additional protection
we recommend seam sealing your tent prior to camping. Seam sealer may be
purchased through your local retailer or at your local sporting goods store.
•
Do not leave your tent set-up for weeks at a time, be aware that
exposure to the ultraviolet rays of the sun can seriously damage nylon
material and/or cause it to become discolored.
WARNING: KEEP ALL FLAME AND HEAT SOURCES
AWAY FROM THIS TENT FABRIC. This tent meets the
flammability requirements of CPAI-84. The fabric will burn if left
in continuous contact with any flame source. The application of
any foreign substance to the tent fabric may render the flame-
resistant properties ineffective.
