Coleman Revolution User Manual

15
CE2
CE1
CC
-
+
CE1
CE3
ASSEMBLY INSTRUCTIONS
9
(CE3)
InstaStart
Button

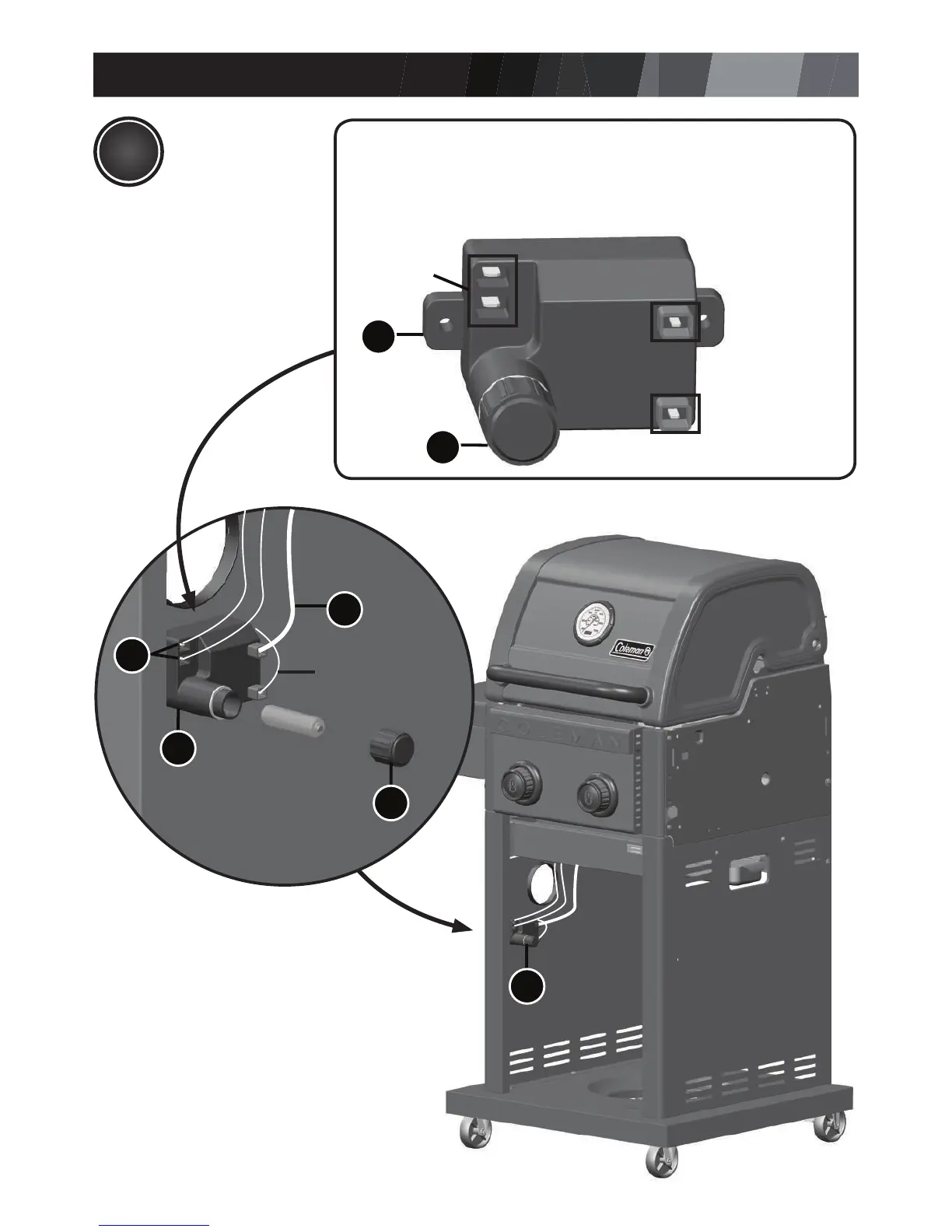

Electronic Ignition Wire Assembly
The electrode wires for main burner electrode set (CC), instastart button (CE3) can
be found under the control panel (CG), attached to the manifold (CA). Insert them
and the ground wire into the electronic ignition (CE1). Insert one “AA” battery into the
compartment with the positive end facing outward. Secure using the battery cover
(CE2).
Main
Burner
Ground
Wire
CE1
CE2
Ground Wire
