C68 road frame
assembly guide
Integrated handlebar
cable routing
INTRODUCTION
DISCLAIMER
In the following pages a step-by-step guide is shown for Colnago
C68 assembly.
We opted for a Campagnolo Super Record EPS build as an example,
given the fact that this specific groupset requires additional steps
than groupsets offered by other makes avaiable on the market.
The Colnago C68 is also compatible with Shimano and SRAM
electronic groupsets, which are installed in the same way, but
with fewer steps.
The C68 frameset is not compatible with mechanical groupsets.
1. Colnago strongly recommends that the bike should be assembled
by a professional bike mechanic.
2. Colnago Ernesto & C. s.r.l. avoids any liability over damage or
harm to things and people caused by an incorrect application of the
instructions shown in this manual.
3. Equally, damage caused to the frameset during bike assembly is
not covered by Colnago warranty.
1
2

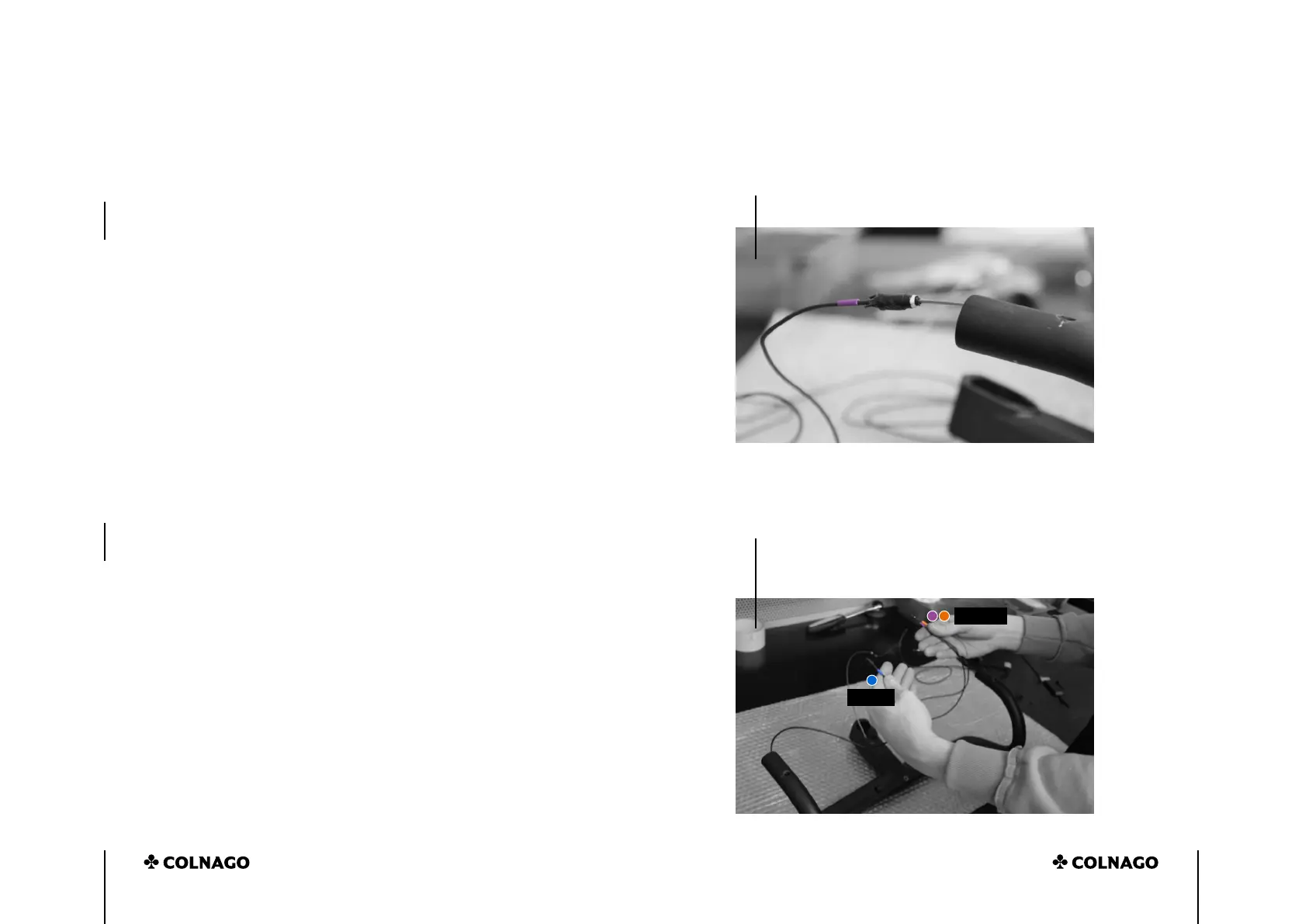

Handlebar setup: insert the cables inside the handlebar.
The following instructions show the preparation of
Colnago’s CC01 Integrated handlebar. In order to know
how to install both the complete handlebar and the
headset on the bike (and how to cut the steerer tube),
check the separate guide.
Orange and Purple connectors must always exit
from the right side of the dropbar.
LEFT
RIGHT
