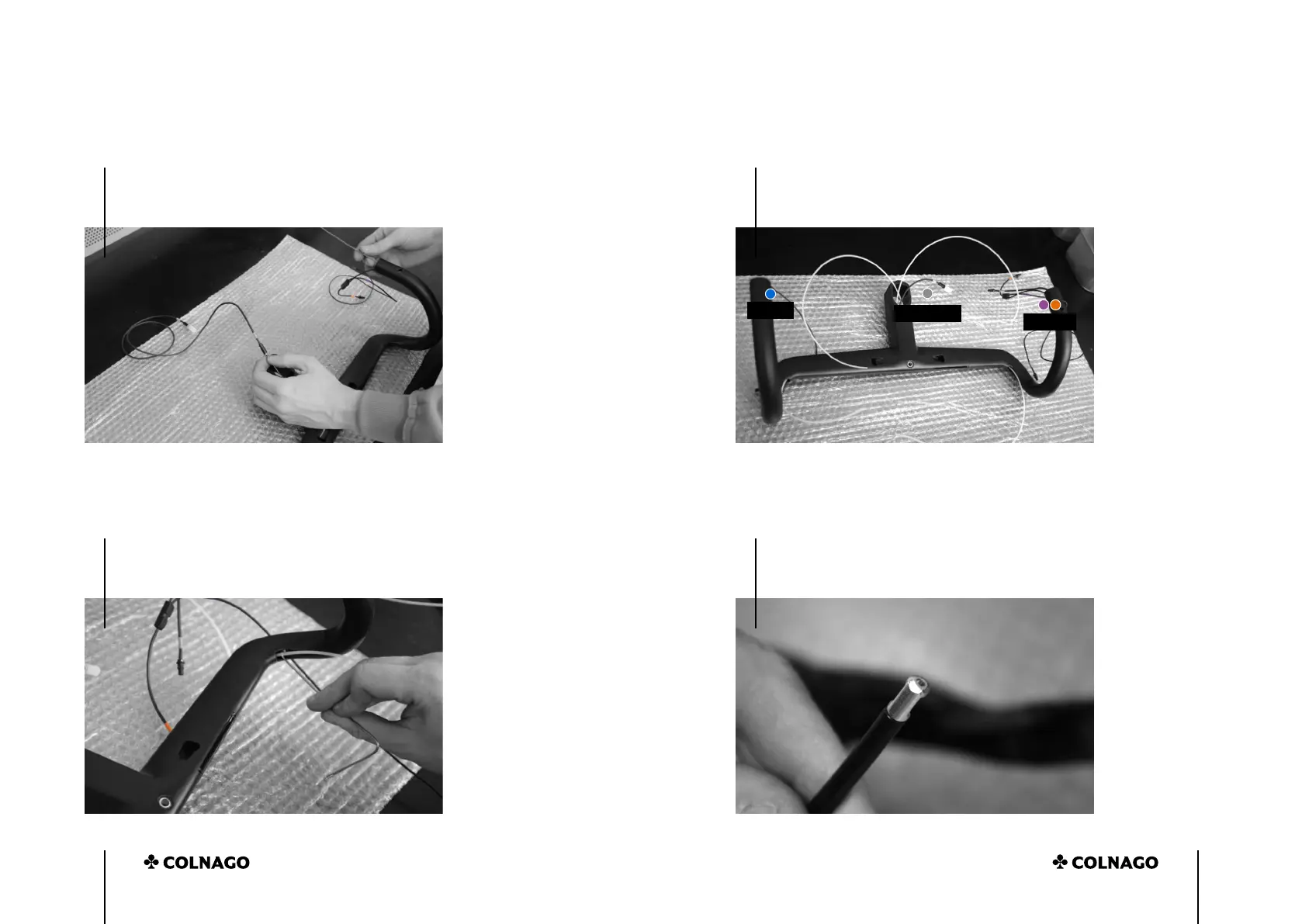

Cables are interely routed through the handlebar. Purple and orange
connectors exit from the right side, the grey one from the center, the
blue one from the left.
The Grey connector must exit form the central hole,
passing through the stem.
Hydraulic hoses routing through the handlebar. Suggestion: slightly
round the end of the cable in order to ease the process.
In order to ease the passing of the cables through the handlebar
bends, the use of a hooked instrument is suggested.
LEFT
RIGHT
CENTER
