COMAC SIMPLA 50B-BT - Page 3

ADJUSTMENTS
AND
TESTING
SIMPLA 50B-BT
SIMPLA 55BT
SIMPLA 65BT
SIMPLA 50BST
Doc. 10021896
Issued 09/2010
Ver. AB
Page 3 of 16

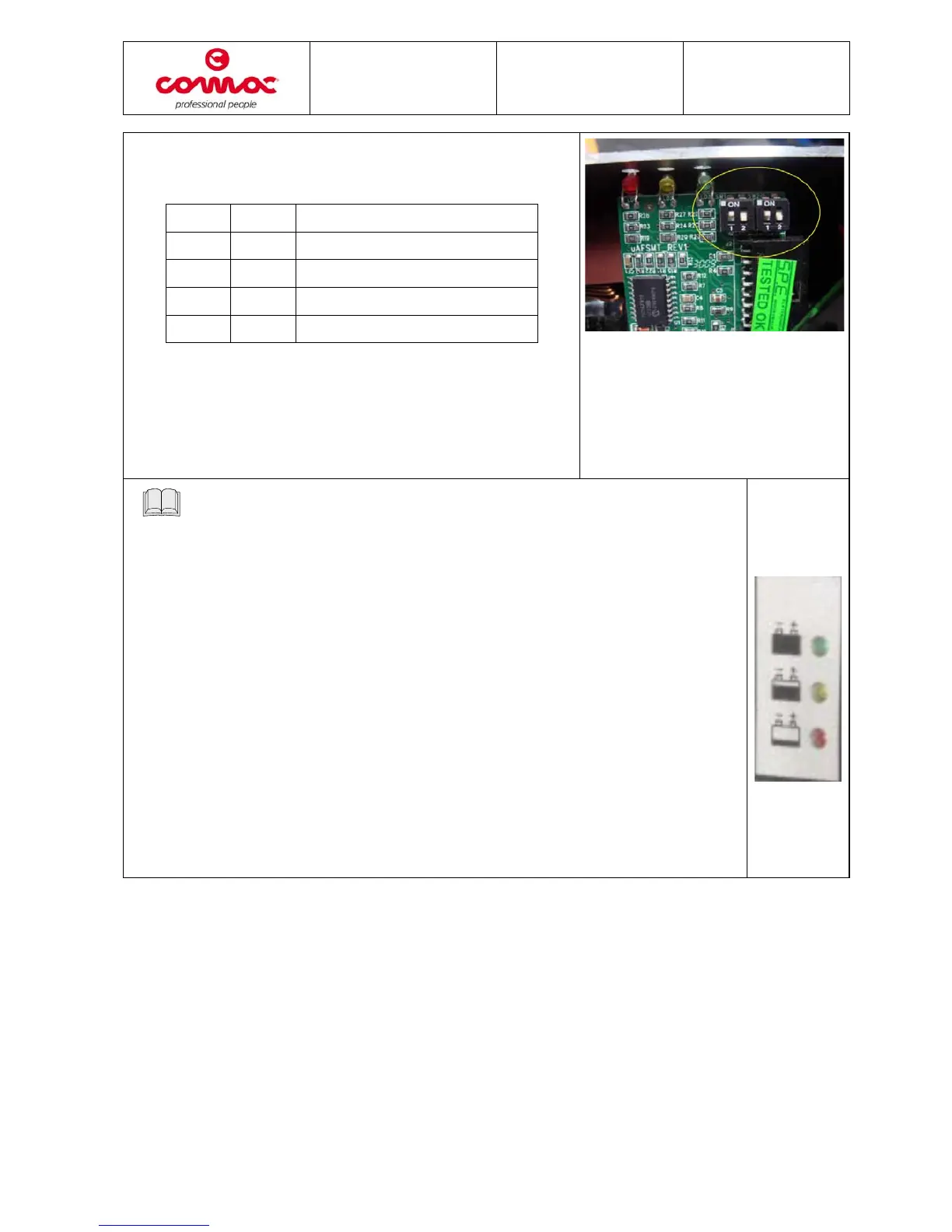

The dip switches are set as follows (DP1 and DP2 are the SW1
and DP3 and DP4 are SW2):
DP1 DP2 SET-UP
OFF OFF EXIDE SONNENSCHEIN gel
OFF ON General GEL or AGM batteries
ON OFF Wet-cell batteries
ON ON TROJAN gel
DP3:
ON for all the batteries (not used)
DP4:
OFF for all the batteries (not used)
Carefully read the battery charger operating manual
Battery charger alarm signals:
Flashing YELLOW LED:
• WRONG BATTERY
• BATTERY NOT CONNECTED
• OUTPUT SHORT-CIRCUIT
Flashing RED LED:
• SAFETY TIMER EXCEEDED
• INTERNAL SHORT-CIRCUIT
Initial battery charger test:
GREEN LED with 2 flashes: battery charger with set-up for GEL or AGM batteries
RED LED with 2 flashes: battery charger with set-up for wet-cell batteries
