Table 11: RFU Digital Display
Figure DL Input Power Level
L < -19dBm
-19~33 -19~33dBm
H > 33dBm
4.3.2 DIGITAL DISPLAY ON FOU
The digital display tube on optical module has two digits.
The first digit will display A, b, C and d which presents the No. of optical port. Refer to below figure for the
relationship.
The second digit will display the optical loss of each port. See the following table for the relationship of
figure and optical loss.

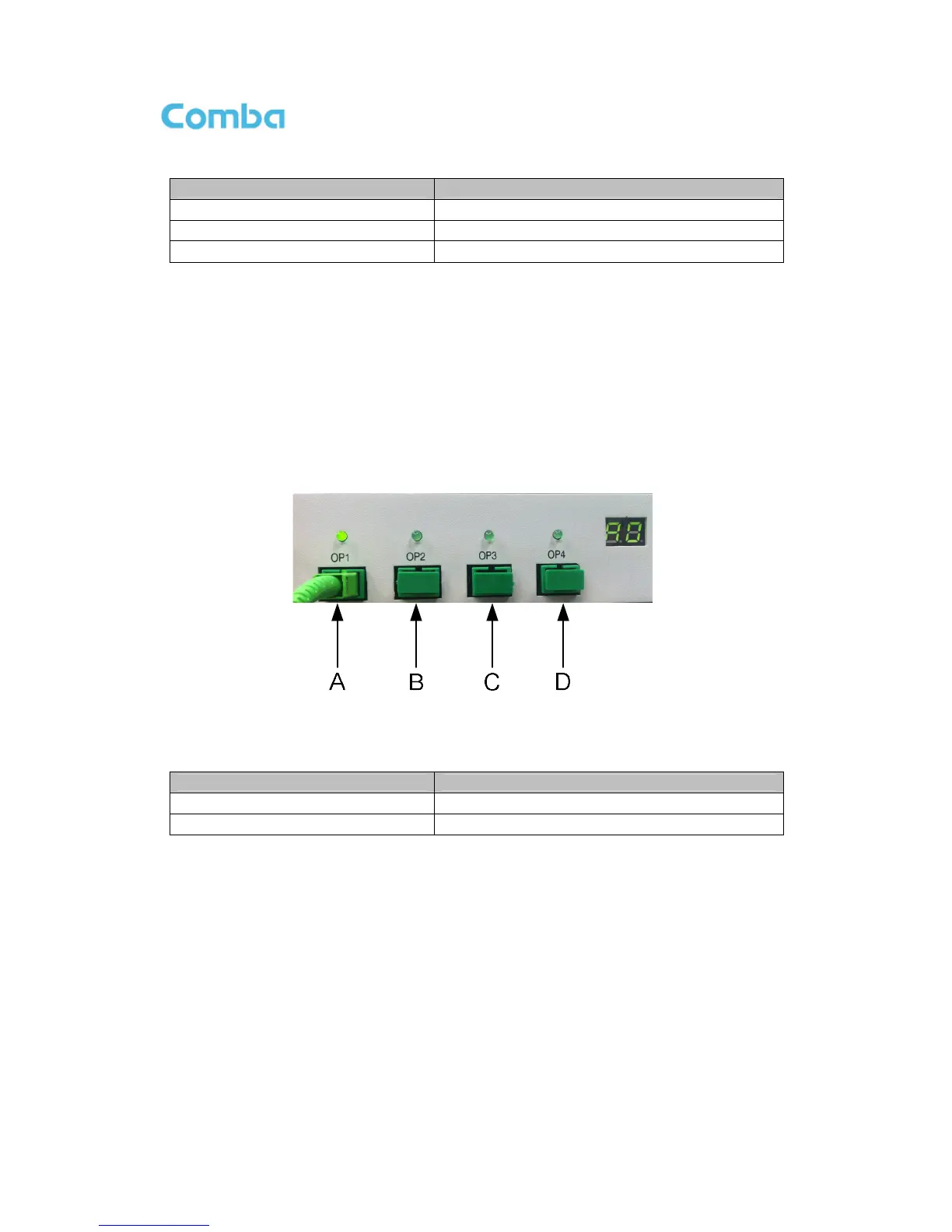

Figure 36: Optical Port No. and Digital Display
Table 12: FOU Digital Display
Figure Optical Loss
0~9 0~9dBo
H > 9dBo
End of Section
