Combi Zeus 360 - Operation and Adjustments; Harness Use and Adjustment; Shoulder Harness Strap Adjustment; Chest Clip Operation

• Harness MUST be snugly adjusted around child.
WARNING -
DEATH or SERIOUS INJURY can occur
39
Section 17 -
Operation and Adjustments

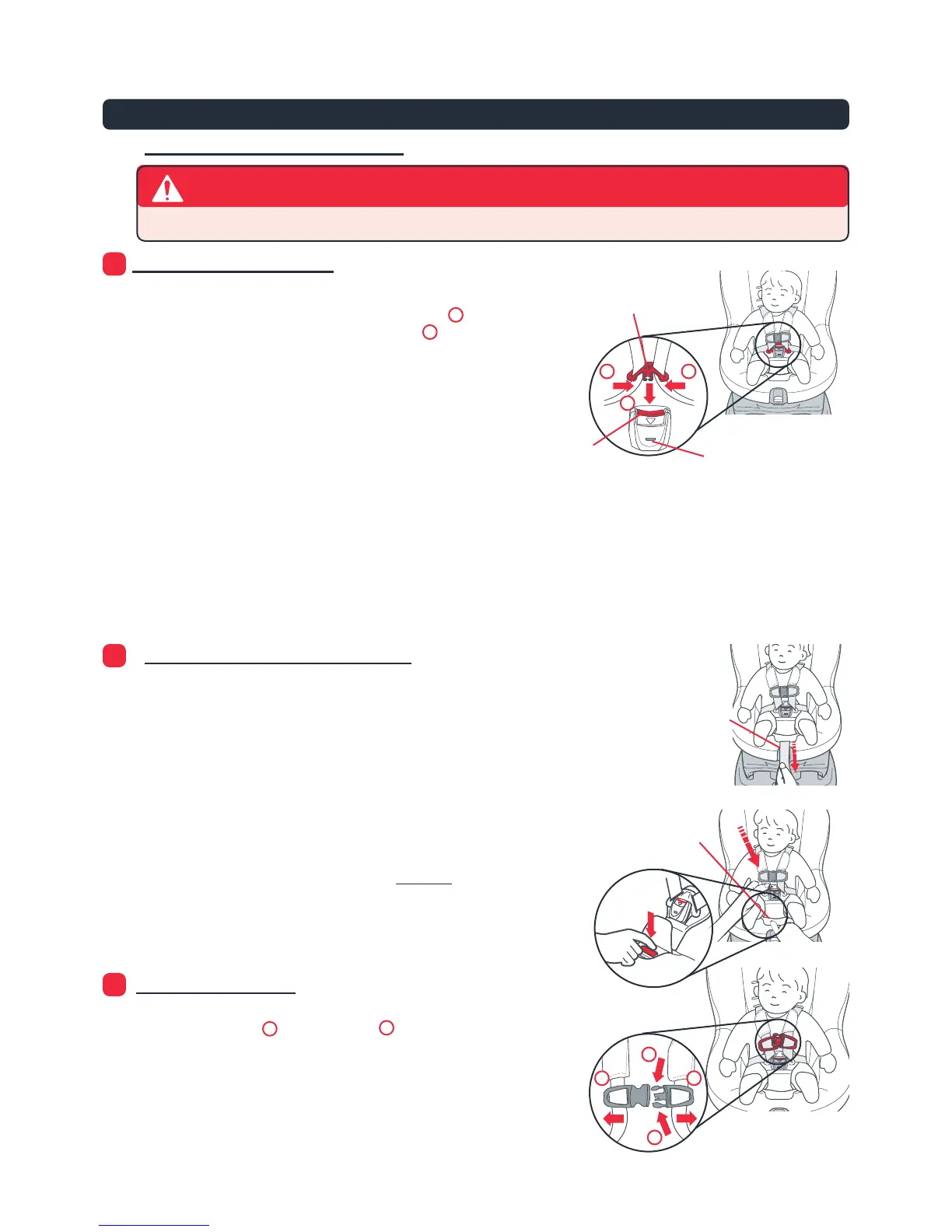

17a. Harness Use and Adjustment
1
Tru-Safe Buckle Operation:
• To buckle:
- Place top of buckle tongues together and
insert buckle tongues into buckle (fig. a).
- Pull up on tongues to be sure they are locked.
NOTE: A green indicator will appear in the
window below the buckle release
button when tongues are
locked in the buckle.
• To unbuckle:
- Press red button and pull tongues
out of buckle.
NOTE: A red indicator will appear in the
window below the buckle release button
when the tongues are not locked in the buckle.
(fig. a)
Window
(Green = Locked
Red = Unlocked)
Buckle
Release
Button
1 1
1
2
2
Buckle
Tongues
Shoulder Harness Strap Adjustment
• To tighten shoulder harness straps:
- Pull harness adjuster strap (fig. b).
- Position chest clip at armpit level.
- Check that shoulder harness straps are snug on shoulder
and thighs. Straps should not allow a finger to pass between
the belt and the child’s shoulder.
If shoulder harness is not snugly adjusted on child’s shoulders and
thighs, pull harness adjuster strap to tighten.
Repeat until harness is snugly adjusted around child.
• To loosen shoulder harness straps:
- Grasp shoulder harness strap BELOW shoulder harness
cover.
- While pressing on harness adjuster, pull down on shoulder
harness straps (fig. c).
Chest Clip Operation:
• To open:
- Press tabs and pull apart .
• To close:
- Snap halves together.
- Make sure chest clip is locked by pulling out.
- Position chest clip at arm pit level.
40
2
(fig. d)
3
(fig. b)
Harness
Adjuster
Strap
(fig. c)
Harness
Adjuster
1
2
1
2
2
1
