Program Levels
9
Configuration level
This level contains
the configuration parameters
of the device.
♦ Enter from Basic level
by pressing and holding
until con appears.
♦ To access and adjust
the configuration parameters,
follow the algorithm described
in 'Parametric level'.
Output Control
Control output operation
♦ The control output operates
according to the control
algorithm parameters.
♦ When an error is detected
(see 'Error messaging'),
the output deactivates.

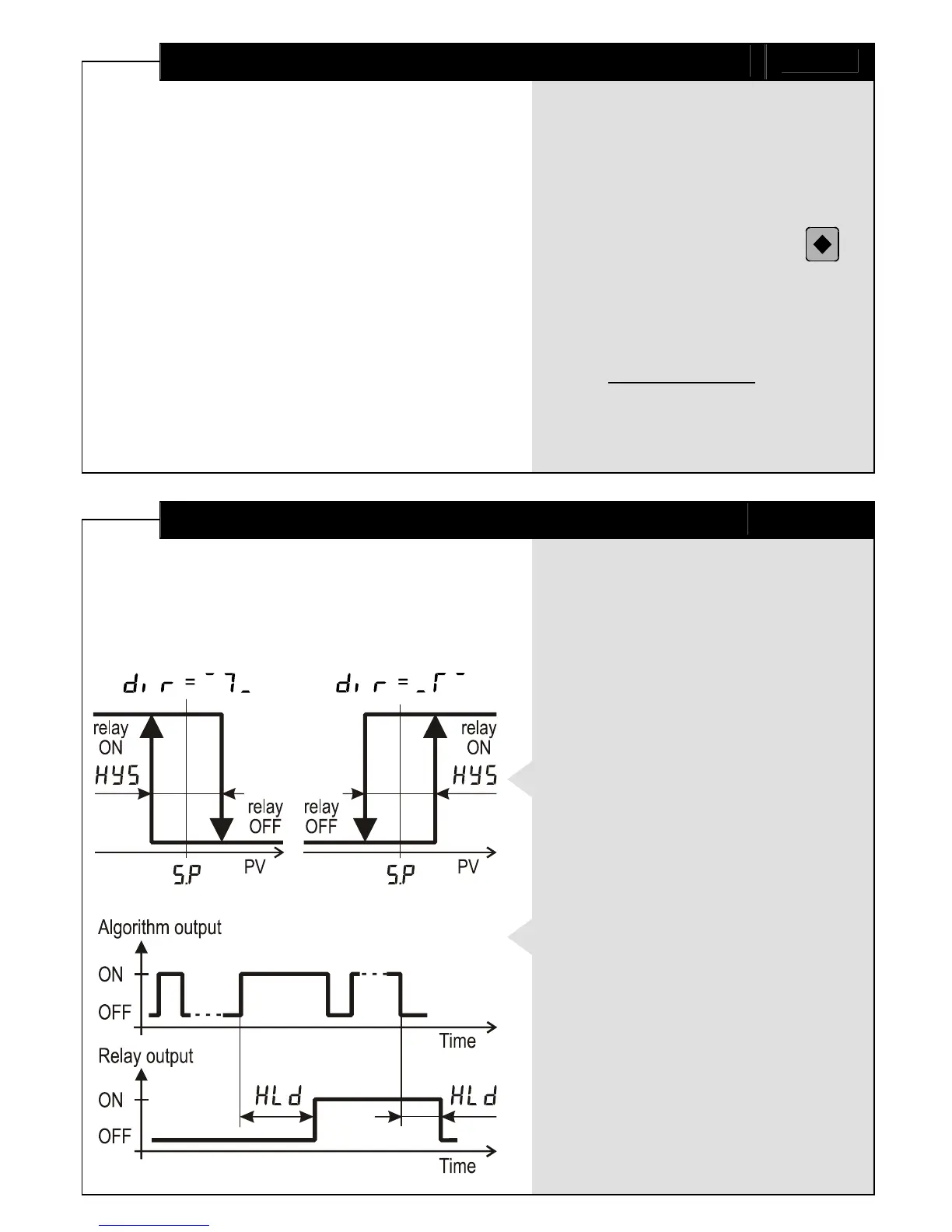

ON/OFF control algorithm
The static characteristic
of a relay controlled
by an ON/OFF algorithm
is shown on the left drawing.
Output hold
For eliminating undesirable
output switches, additional
parameter (Hold) is assigned
to hold the output reaction
for certain period of time.
