Comelit 1224A - Operating mode; Example coding of switching device Art. 1224 A; System performance and layouts

MIN
MAX
RANGE 1÷10
MIN
MAX
RANGE 11÷20
MIN
RANGE 1÷20
MAX
STAIRCASE A STAIRCASE B
MAIN DOOR
staircase
Operating mode

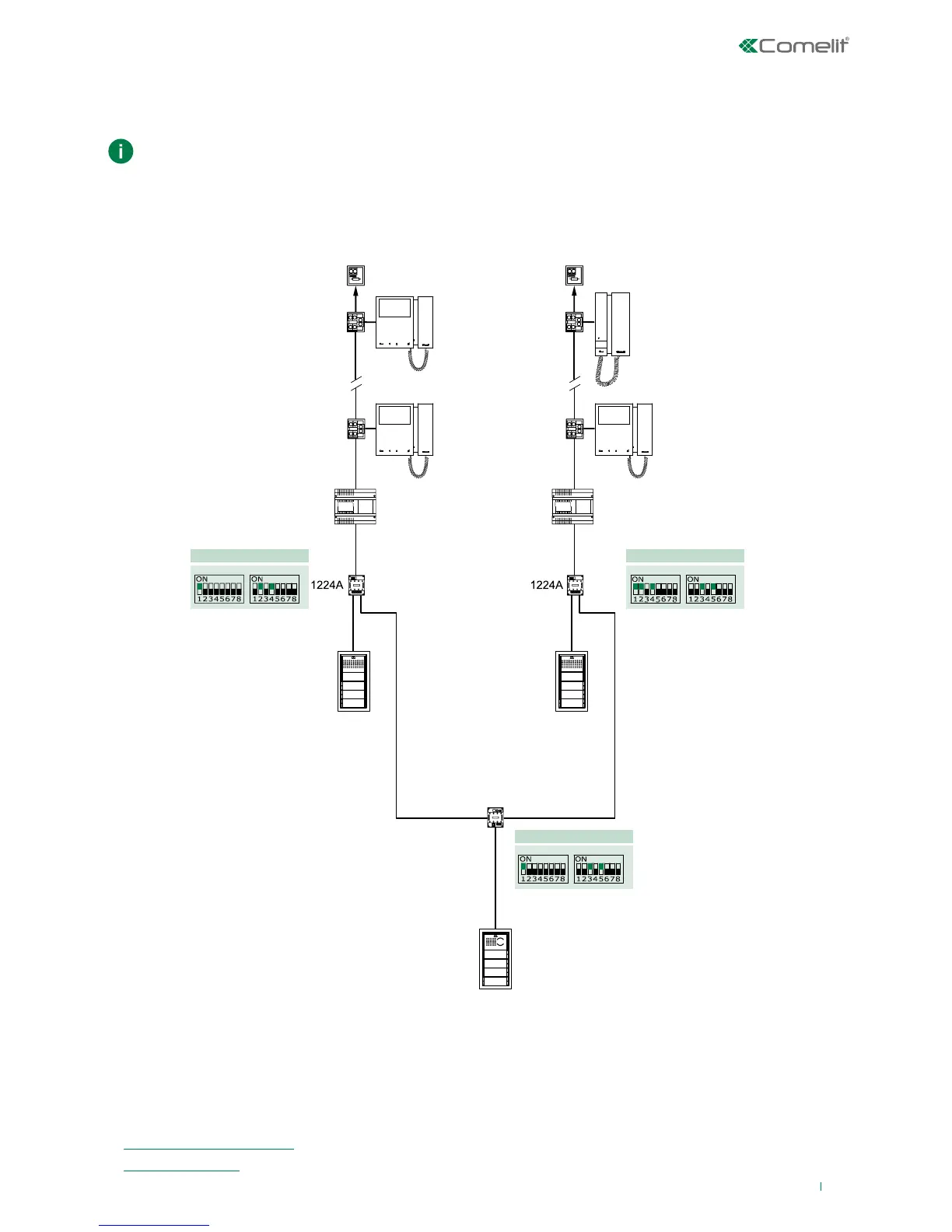

Example coding of switching device Art. 1224A (staircase A 1 to 10 , staircase B 11 to 20)
Each switching module is equipped with a pair of DIP switches with 8 selectors. The two Dip switches define the MIN and MAX
range of codes that can be recognised by the switching device.
CAUTION! Separate switching devices must manage code ranges which are not overlapping.
System performance and layouts
For further information of system performance and to view installation layouts, click on the system type that best meets your
requirements:
• SBTOP audio/video system for the creation of audio-video systems for residential complexes.
• SB1 audio system for the creation of audio systems for residential complexes.
