Comelit 2702W - Internal unit Art. 2702 W; Description

8

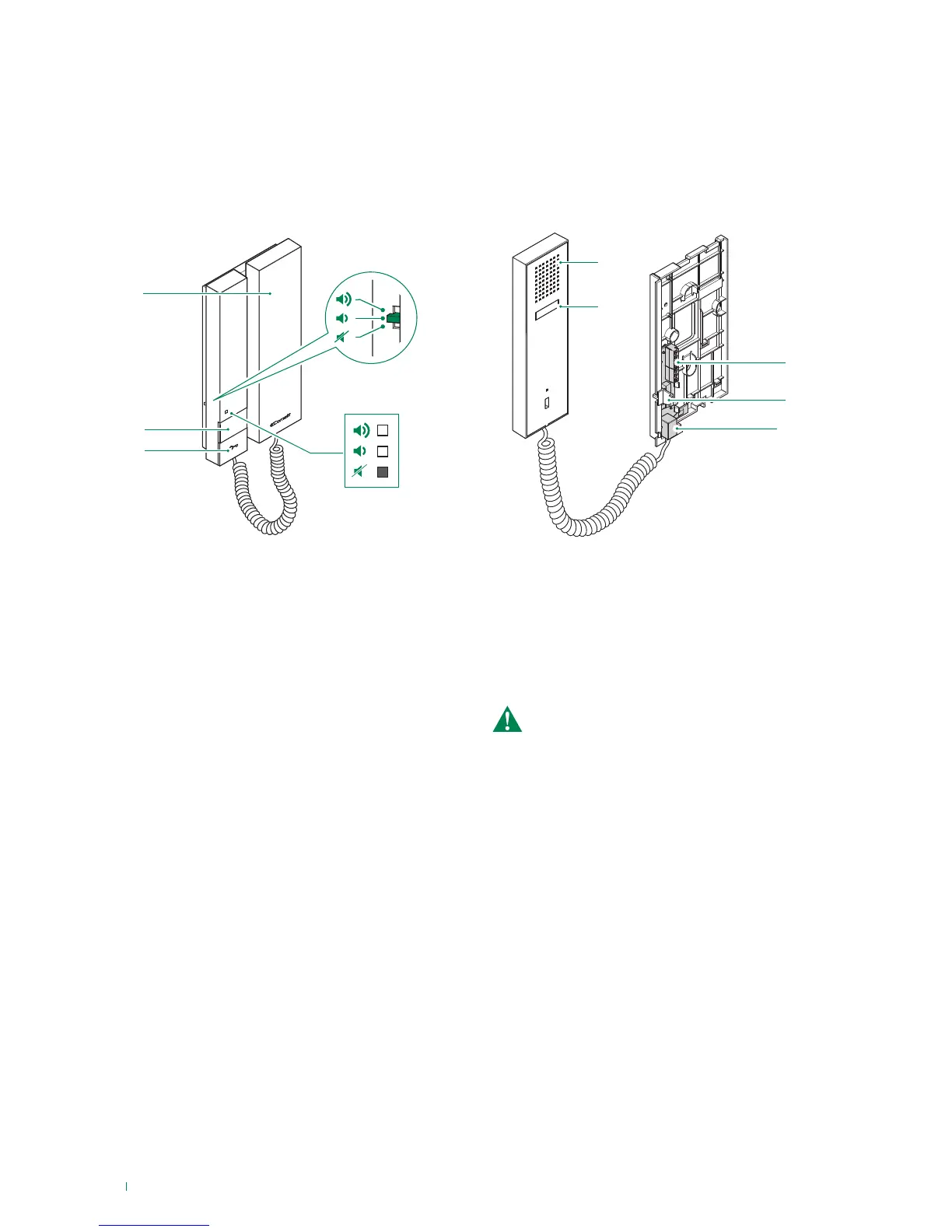

Internal unit Art. 2702W
Description
6.
7.
2.
1.
5.
3.
4.
8.
9.
10.
MINI series door-entry phone for traditional systems, with electronic call, handset, key button and supplementary button for
additional services. Call volume and privacy mode can be set via a 3 position selector switch; activation of privacy mode is
signalled by a red indicator.
Dimensions: 105 x 190 x 28 mm
1. Handset
2. Button P1 for additional services
3. Key button
4. 3-position ringtone / Privacy selector:
High position: Maximum ringtone volume
Middle position: Medium ringtone volume
Low position: Privacy activation (Privacy service means
exclusion of the call ringtone from the external unit and
switchboard)
5. Red indicator signaling: Privacy service active
6. Loudspeaker
7. Audio hook
Do not press and hold the audio hook
while the handset is lifted
8. Terminal block:
P2C2 Free Pushbutton C-NO
P1 Key button
4 Negative
3 Microphone output
2 Loudspeaker input
S Electronic call signal input
9. Bell / Privacy selector
10. Handset connector
