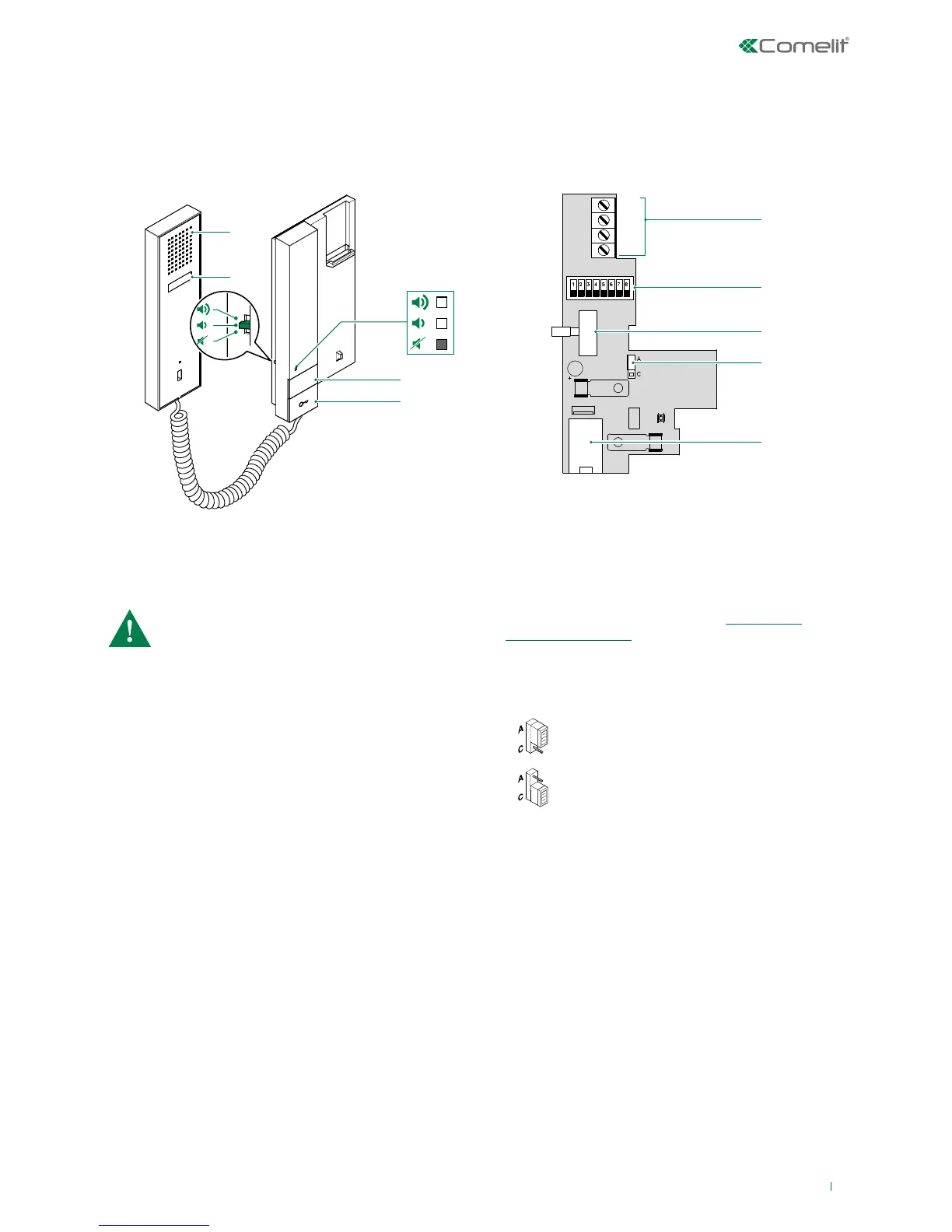

Description
Art. 2708W is a door-entry phone complete with 1 key button, 1 P1 button and a 3-position ringtone / Privacy service selector,
which can be used in SB1 systems.
Dimensions 105×190×28 mm.
1. Loudspeaker.
2 Audio hook.
Do not press and hold the audio hook
while the handset is lifted.
3. 3-position ringtone/Privacy service selector:
High position: Maximum ringtone volume.
Middle position: Medium ringtone volume.
Low position: Privacy function activation (privacy
service means exclusion of the call ringtone from the
external unit and switchboard).
4 Red indicator - Privacy enabled.
5. P1 button for switchboard call / generic actuator.
6. Key button.
7. Terminal block M1:
CFP CFP floor door call input
LL bus line connection
8. Dip switch for setting user code (See “Dip switch
programming table”).
9. 3-position selector for Call tone/Privacy service.
10. JP1 jumper for selecting the Generic actuator/
Switchboard call function of button P1.
A Generic Actuator
C Switchboard
11. Handset connector.
1.
5.
4.
6.
M1
S1
SW1
JP1
2.
CFP
CFP
L
L
3.
11.
7.
8.
9.
10.
