Comelit 2738W - Product Description

Description
Article 2738W is a door-entry phone complete with 1 key button, 1 P1 button and a 3-position ringtone / Privacy service
selector. Can be used in “Building Kit” systems (exclusively 2-wire).

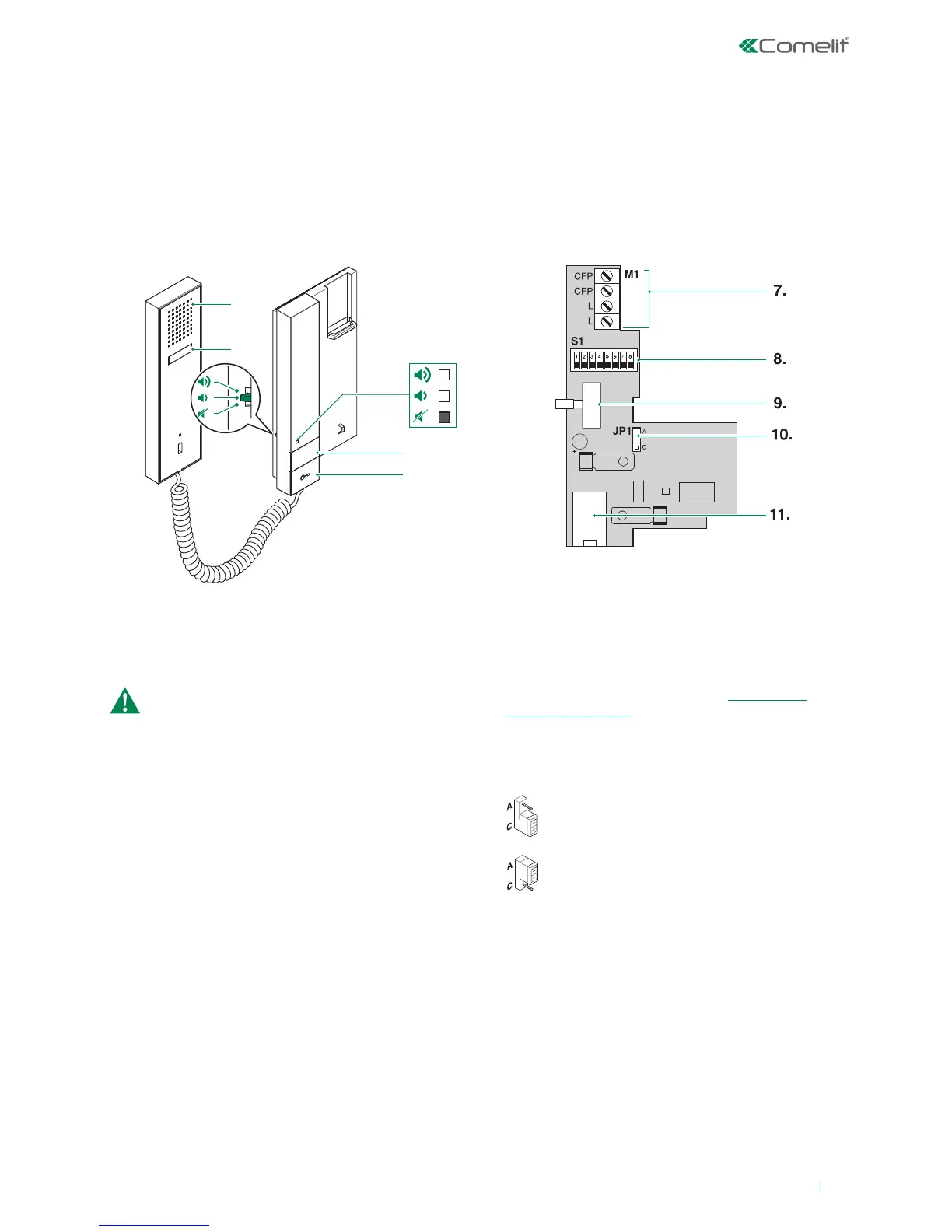

1. Loudspeaker
2. Audio hook
Do not press and hold the audio hook
while the handset is lifted
3. 3-position ringtone / Privacy selector:
High position: Maximum ringtone volume
Middle position: Medium ringtone volume
Low position: Privacy activation (Privacy service means
exclusion of the call ringtone from the external unit and
switchboard)
4. Red indicator signaling: Privacy service active
5. P1 button for switchboard call / Generic actuator
6. Key button
7. Terminal block M1:
CFP CFP floor door call input
LL BUS line connection
8. DIP-switch for setting user code (See “DIP-switch
programming table”).
9. Bell / Privacy selector
10. JP1 jumper for selecting the Generic actuator /
Switchboard call function of button P1
C Switchboard
A Generic Actuator
11. Handset connector
1.
5.
4.
6.
2.
3.
3
