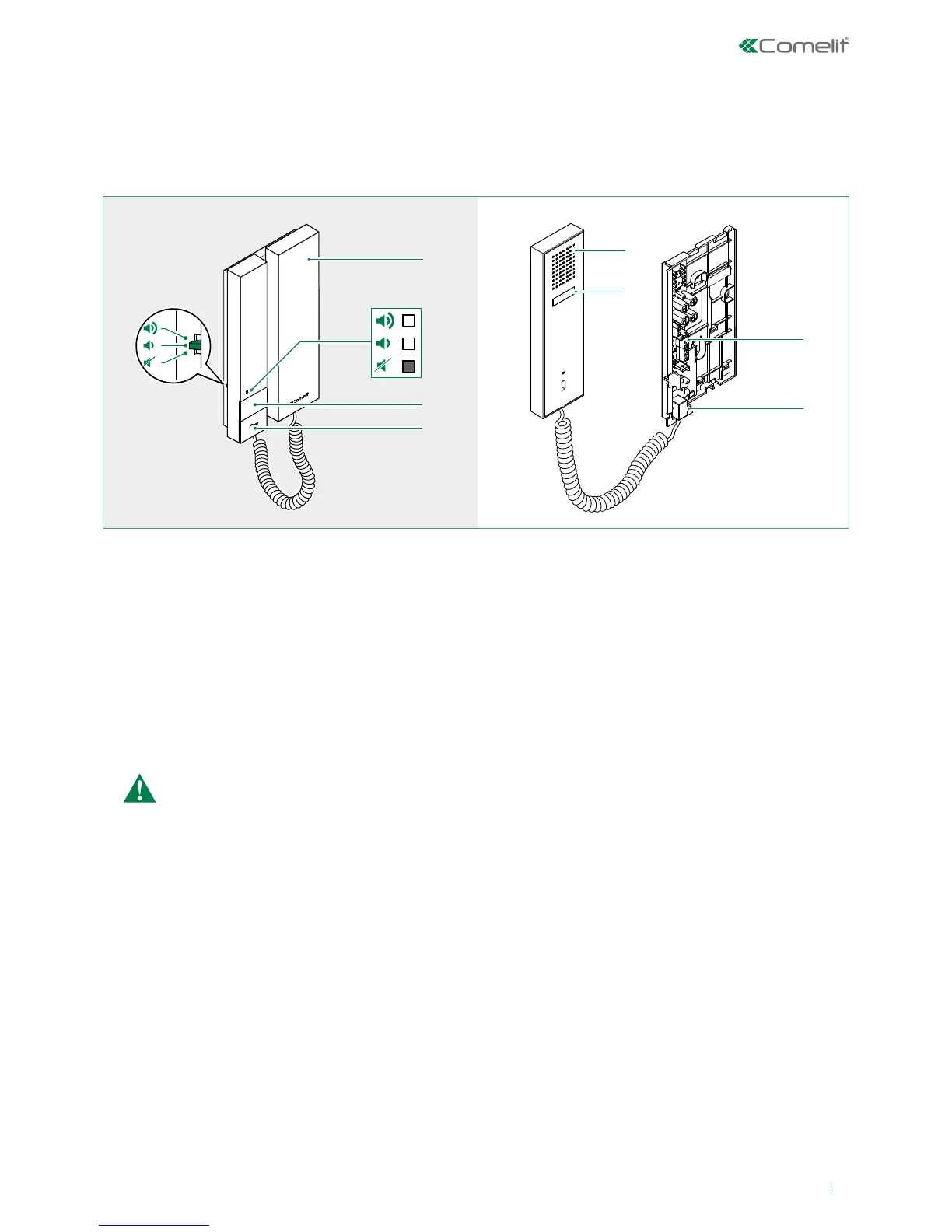

Internal unit art. 2712W
Description
Audio internal unit complete with 1 key button.
Dimensions 105 × 190 × 28 mm
1. Handset
2. 3-position ringtone/Privacy mode selector:
High position: Maximum ringtone volume
Middle position: Medium ringtone volume
Low position: Privacy mode activation (privacy mode means exclusion of the call ringtone from the external unit)
3. Red indicator - Privacy enabled
4. P1 button for various services
5. Key button
6. Loudspeaker
7. Audio hook
Do not press and hold the audio hook while the handset is lifted
8. Terminal block:
B A Connection of the external units
S- S+ Connection of the call repetition device
12~ 0~ Power supply terminals
P1 C Terminals for pushbutton P1 C. NO. 24V 100mA dedicated to various services
9. Handset connector
