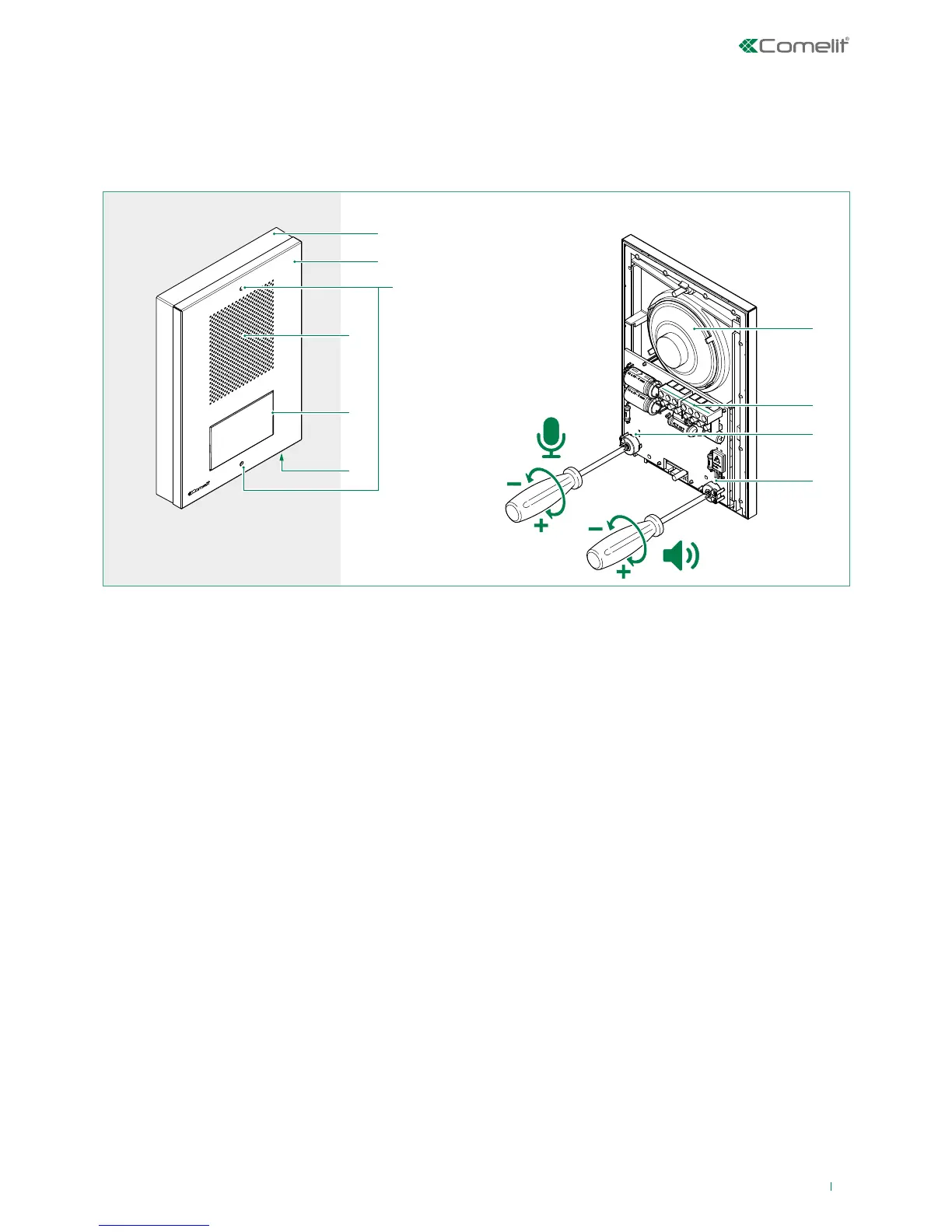

External unit Art. ET5001
Description
External unit complete with 1 call button, 1 wall bracket and 1 flush-mounted box.
Dimensions 95×135×26.5 mm (including wall bracket).
1. Surface-mounted wall bracket Art. ET9160. A flush-mounted box Art. ET9150 is also available.
2. Stainless steel front faceplate.
3. Faceplate fixing screw holes.
4. Speaker.
5. Call button.
6. Microphone.
7. Speaker.
8. Terminal block for connection:
S1 Electronic call signal output
4 Negative
3 Loudspeaker input
2 Microphone output
~~* 12V AC power supply terminals
9. TM2 Microphone volume adjustment trimmer.
10. TM1 Loudspeaker volume adjustment trimmer.
