Comelit simple key - Page 17

4
D- D+ Tx Rx -12 V +12 V
RS485*
D- D+ Tx Rx -12 V +12 V
RS485*
D- D+ Tx Rx -12 V +12 V
RS485*
12 - 24 Vca
12 - 33 Vcc
12 - 24 Vca
12 - 33 Vcc
12 - 24 Vca
12 - 33 Vcc
12 - 24 Vca
12 - 33 Vcc
12 - 24 Vca
12 - 33 Vcc
12 - 24 Vca
12 - 33 Vcc
192.168 . 0. 4
192.168 . 0. 3
192.168 . 0. 2
IT
EN
FR
NL
ES
IT
EN
FR
NL
ES
17

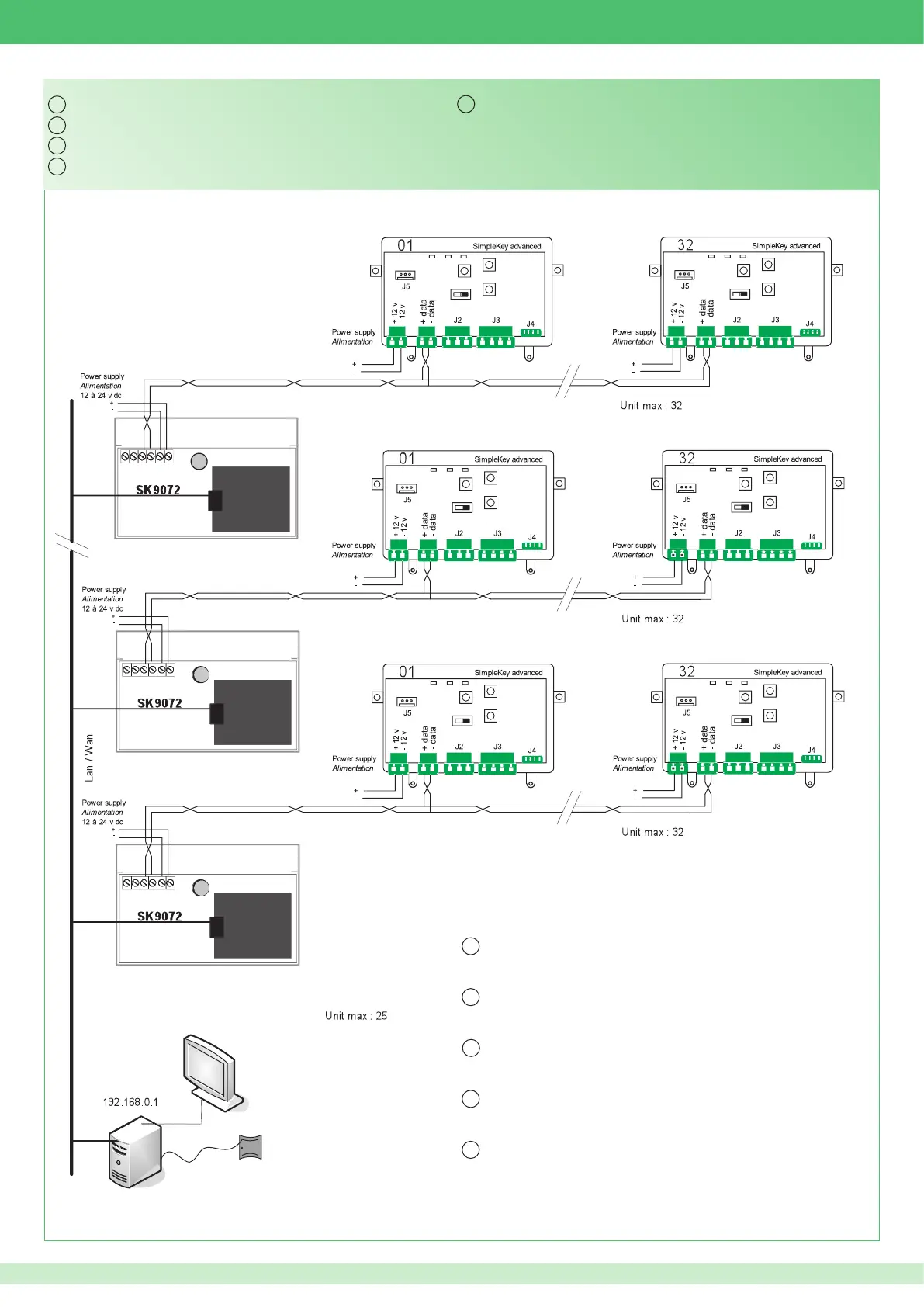

Rete TCP/IP + RS485
*CavoRS485–impedenza120Ohm,capacitàconsigliatainferiore
a 50 pF/m: Cavo BELDEN rif. "BLN 9841T2" o "BLN 9841T3" o
equivalente
TCP/IP + RS485 network
*RS485cable-120Ohmsimpedence,capacitylessthan50pF/m
suggested:BELDENcableref."BLN9841T2"or"BLN9841T3"or
equivalent
Réseau TCP/IP + RS485
* Câble RS485 - Impédance 120 ohms, capacité inférieure à 50
pF/msuggéré:CâbleBELDENréf."BLN9841T2"ou"BLN9841T3"
ou équivalent
Netwerk TCP/IP + RS485
*kabelRS485-impedantie120Ohm,capaciteitminderdan50pF/m
aanbevolen:BELDENkabelref."BLN9841T2"of"BLN9841T3"of
gelijkwaardig
Red TCP/IP + RS485
* Cable RS485 - 120 Ohms de impedancia, capacidad inferior a
50pF/m,recomendado:CableBELDENref."BLN9841T2"o"BLN
9841T3"oequivalente
