Comelit YDPI2 - Installation

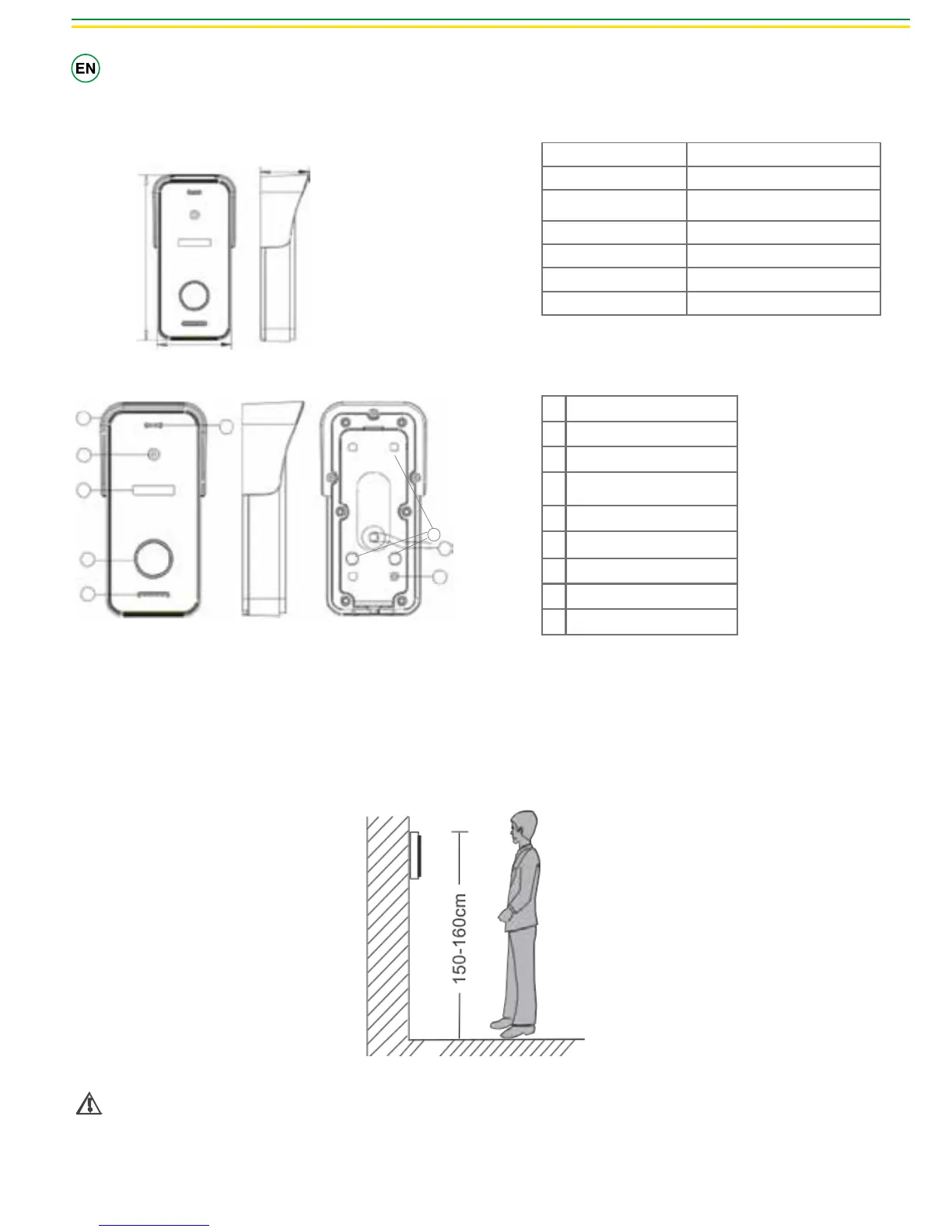

SPECIFICATIONS
A. Outdoor doorbell (YDPE1)
Camera CMOS 1/4”pinhole
View angle 600TVL
LEDs LED IR60
Stand-by absorption 200 mA max
Power supply Supplied from indoor monitor
Work temperature -20+60°C
Installation Surface mounting
126,6mm
57mm
37,03mmm
Name
1 Waterproof cover
2 Microphone
3 Camera
4 IR LEDs
5 Call button
6 Speaker
7 Screw slot
8 Volume regulator
INSTALLATION

NOTE
* Please be far from the devices with intense radiation
* We recommend to install the outdoor doorbell at 150-160cm height.
* Complete the installation before swichting on the video door entry kit.
* Keep the power supply of the lock at a distance of more than 30cm with AC power to avoid interference.
1
2
3
4
5
6
7
9
8

